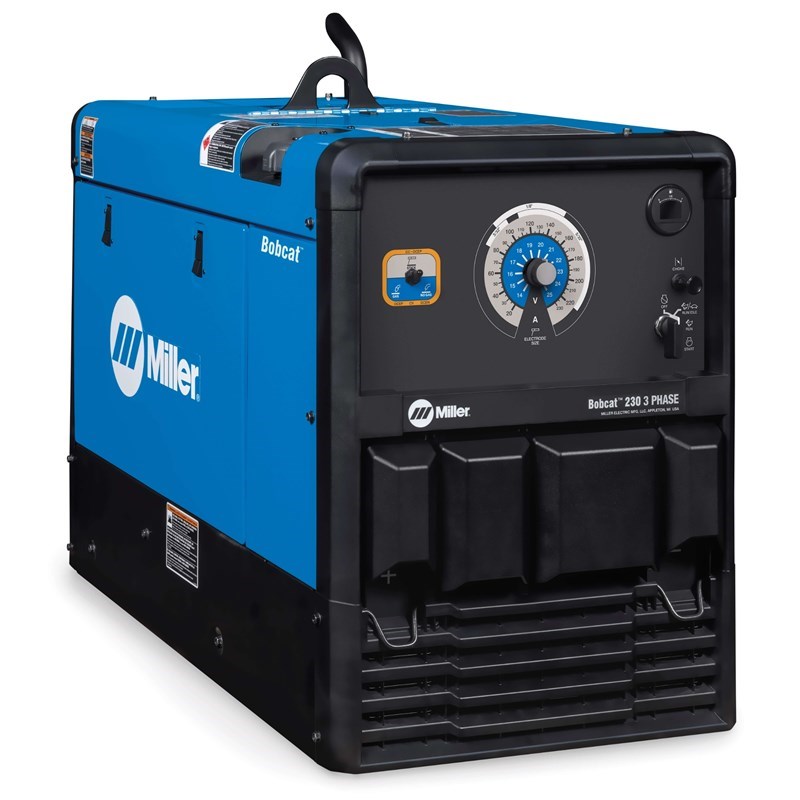

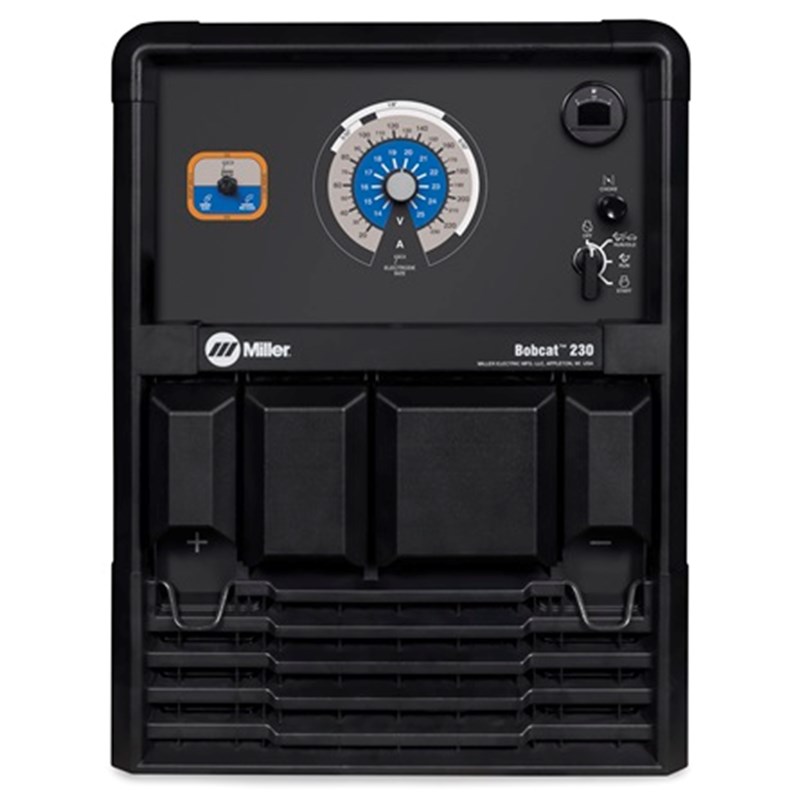

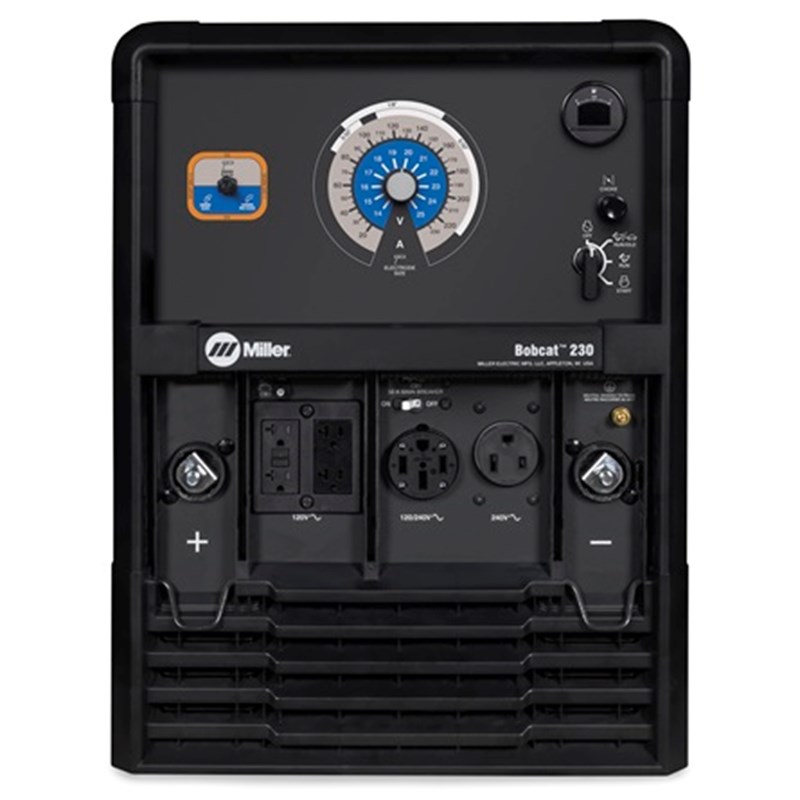

Miller Bobcat™ 230 Engine-Driven Welder (Vanguard) #907847

Welding type:

MIG

TIG

Stick

Engine Driven
Material type:

Mild Steel

Stainless Steel

Aluminum
Fuel Type:

The Miller Bobcat™ 230 is a cost-effective and easy-to-maintain engine-driven welder primarily designed for stick welding and creating power. In addition to Stick welding, the Bobcat performs MIG and Flux-cored welds on mild and stainless steel. An 11-gallon fuel capacity allows for a run-time of 8-11.7 hours dependent on load. Take your welding to the next level with the most popular engine-driven welder in the industry.
Your in-stock items ship same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!
30-Day Submission Deadline
Rebate claims must be submitted within 30 days of purchase date.
Title | Bobcat™ 230 (Vanguard) |
Industries Interests | Construction and Fabrication Farm and Ranch |
Amperage | 20 A - 230 A |
Weldable Metals | Stainless Steel Steel |
Current Type | DC |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Engine Brand | Vanguard |
Engine Idle Speed | 2400 RPM |
Engine Weld Speed | 3600 |
Fuel Tank Size | 11 Gallon |
Fuel Type | Gasoline |
Horsepower | 23 hp |
Weld Output | CC / CV |
Rated Output | CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle |
Single Phase Auxiliary Continuous Power | 9500 W |
Single Phase Auxiliary Peak Power | 11000 W |
Sound Rating | 64 dB @ idle and 73 dB @ weld |
Applications | Fabrication Industrial Welding Mobile Fabrication & MRO |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 26.50 Inches |
Width: | 20.13 Inches |
Length: | 37.06 Inches |
Weight: | 376 Lb(s) 0 Oz |
