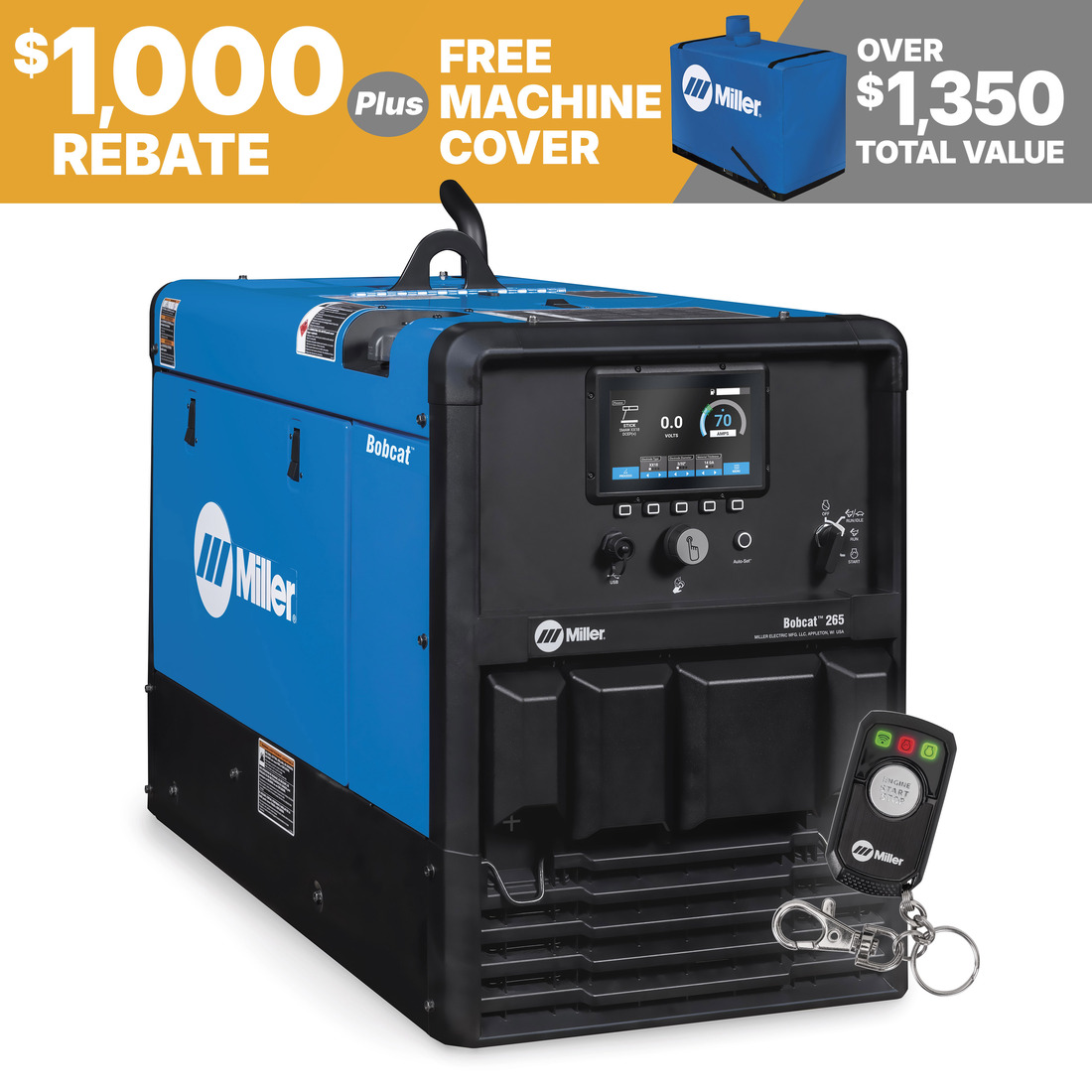

Bobcat™ 265 ArcReach® Engine-Driven Welder w/ Remote Start/Stop #907826001

Welding type:

MIG

TIG

Stick

Engine Driven
Material type:

Mild Steel

Stainless Steel

Aluminum
Fuel Type:

Experience welding made easy with our new welder designed for all skill levels. Innovative features allow anyone to achieve professional-quality welds. The Bobcat 265 ArcReach will open up new possibilities for your welding.
The ArcReach remote control technology allows fast parameter changes at the weld joint for maximized arc-on time, increased job site safety, and improved efficiency.
The digital interface of the Bobcat 265 ArcReach makes it easier to dial in settings getting you up and running faster than before. Fast, easy setup for all skill levels.
Go the extra mile with our welder's remote start/stop capability. Operators can conveniently turn the engine on or off from anywhere at the job site without wasting fuel or generating excess noise.
Smooth, spatter-free arc starts, isolated generator power, and a range of fine-tuned welding processes enable optimized performance for efficient, high-quality welds.
The Bobcat™ 265 is not just powerful; it's also incredibly versatile and compact. It's your ideal companion for various applications, from construction sites to farms.
Keep your job site energized with auxiliary power capabilities at any weld setting. It pulls double duty as a versatile welding machine and a powerful generator.
Weighing over 100 lbs less than previous models, the compact Bobcat 265 takes up minimal truck space for maximum tool storage. Its lightweight, trimmed-down design allows effortless transport of serious welding capability to any job site.
Try these accessories with your new Bobcat™ 265 Engine-Driven Welder:
+
+
+
Bobcat™ 265 (Kohler), ArcReach with Remote Start/Stop - Specifications | |
---|---|
Industries Interests | Construction and Fabrication Heavy Equipment Work Truck |
Amperage | 20 A - 265 A |
Weldable Metals | Aluminum Stainless Steel Steel |
Rated Carbon Diameter | 3/16 in (4.8 mm) |
Current Type | DC |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Engine Brand | Kohler |
Engine Idle Speed | 2300 RPM |
Engine Weld Speed | 3600 |
Fuel Tank Size | 11 Gallon |
Fuel Type | Gasoline |
Horsepower | 23.5 hp |
Weld Output | CC / CV |
Rated Output | CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle |
Single Phase Auxiliary Continuous Power | 9500 W |
Single Phase Auxiliary Peak Power | 11000 W |
Sound Rating | 64 dB @ idle and 73 dB @ weld |
Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Outdoor Stainless Steel Structural Welding |
Net Width | 20.13 in |
Net Height | 26.5 in |
Net Length | 37.06 in |
Net Weight | 382 lbs |
Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 26.50 Inches |
Width: | 20.13 Inches |
Length: | 37.06 Inches |
Weight: | 382 Lb(s) 0 Oz |
