Name: Vantage® 322 Welder/Generator w/ Kubota® Diesel Engine (11,000W), Ready-Pak® 1 #K2409-5-RP1
Brand: Lincoln Electric
SKU: LINK2409-5-RP1

22HP Diesel Engine
120/240V Output
1-Phase or 3-Phase Output
10000W 120/240V 1PH,
11000W 240V 3PH
Lincoln Electric 3-Year Warranty

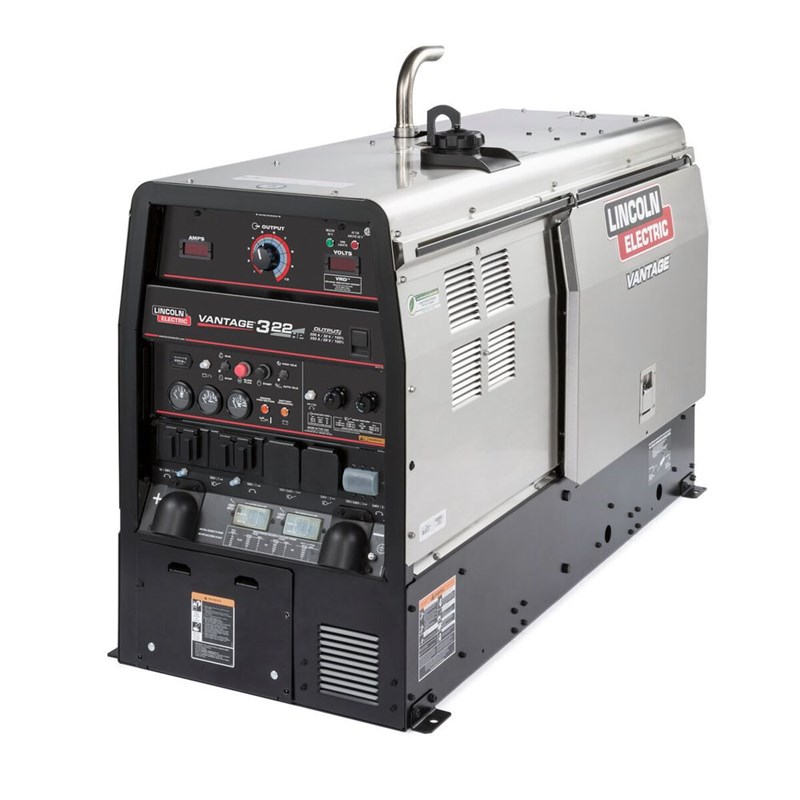

Lincoln Electric Vantage® 322 Diesel Engine-Driven Welder/Generator with Kubota® Engine Ready-Pak 1 #K2409-5-RP1

The Lincoln Electric Vantage® 322 (Kubota®) Ready-Pak® 1 is an all-around welder/generator designed for demanding multi-process welding applications.

With up to 400 amps of DC welding power, this unit is powered by a robust 22 hp Kubota® V1505 diesel engine and integrates patented Chopper Technology® for smooth, high-quality welds.

The Ready-Pak® 1 package includes all necessary accessories, including a trailer with a fender and light kit, cable rack, and welding cables, ensuring rapid deployment for any job site.

Highlights

400 amps of DC multi-process welding capability
Powered by a 22 hp Kubota® V1505 diesel engine
Patented Chopper Technology®for consistent arc performance
Preassembled package with trailer, fender kit and accessories for easy transport
120/240 VAC single-phrase and 240 VAC three-phase auxiliary power

Industries

Construction
Maintenance and Repair
Shipbuilding
Fabrication
Pipeline Welding

What’s Included

Vantage® 322 (Kubota®) Ready-Pak® 1
Weld Cable - Tweco® Male & Open End (2/0, 350A, 60%) - 10 ft (3 m) | K2483-2
EH-305HD Electrode Holder - 300A, 60% Duty Cycle | K909-7
Cable Rack for Welder Trailers | K2640-1
Fender and Light Kit for Welder Trailers | K2639-1
Medium Two-Wheel Welder Trailer | K2636-1
Weld Cable - Tweco® Male & Female (2/0, 350A, 60%) - 50 ft (15.3 m) | K2485-2
Insulated CT40FS Female Connector | K2487-1
Weld Cable - Tweco® Male & 0.53 Lug (2/0, 350A, 60%) - 50 ft (15.3 m) | K2484-2
GC-300 Work Clamp - 300A, 60% Duty Cycle | K910-1
Vantage® 322 (Kubota®) | K2409-5

Benefits of the Vantage® 322 (Kubota®) Ready-Pak® 1

All-in-one package with everything preassembled for quick setup and mobility
High-output welding and auxiliary power for versatile job site applications
Trailer with an integrated fender and light kit allows for safe, convenient transport
Kubota® diesel engine provides long-lasting, fuel-efficient performance
Chopper Technology® ensures smoother, more consistent welds across processes

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welder/generators or explore Lincoln Electric welding supplies at the best prices online.

Product Weights & Dimensions

Dimensions (H x W x D)	53.9 in x 57 in x 111 in (1370 mm x 1448 mm x 2820 mm)
Net Weight	1517 lbs (688 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	300A / 32V / 100% @ 104°F (40°C)
Max Rating	400A / 23V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 400 Amps Downhill Pipe (CC): 40 – 300 Amps Touch Start TIG: 20 – 250 Amps CV-Wire: 14 – 32 Volts Arc Gouging: 90 – 300 Amps
Open Circuit Voltage	73 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16" (8.0 mm)

Engine Driven Welders

Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Kubota® V1505
Engine Description	4 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	22.0 hp (16.4 kW)
Engine Block Size & Displacement	91 cu. in. (1.5 L) Bore x Stroke - 3.1 in x 3.1 in (78 mm x 78 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1350
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.8 US gal.
Coolant Capacity (L)	6.8 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
