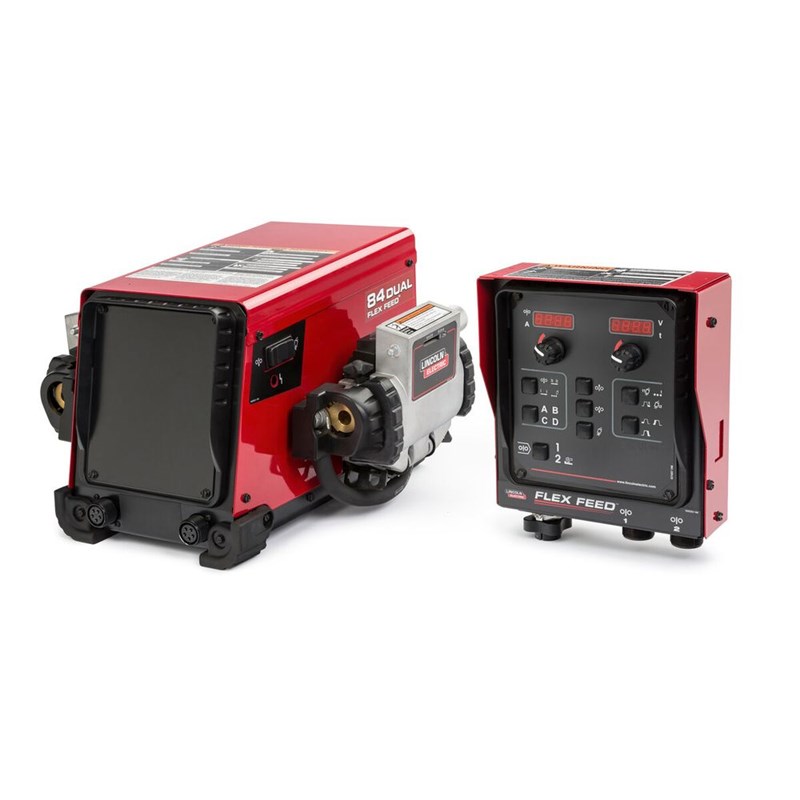

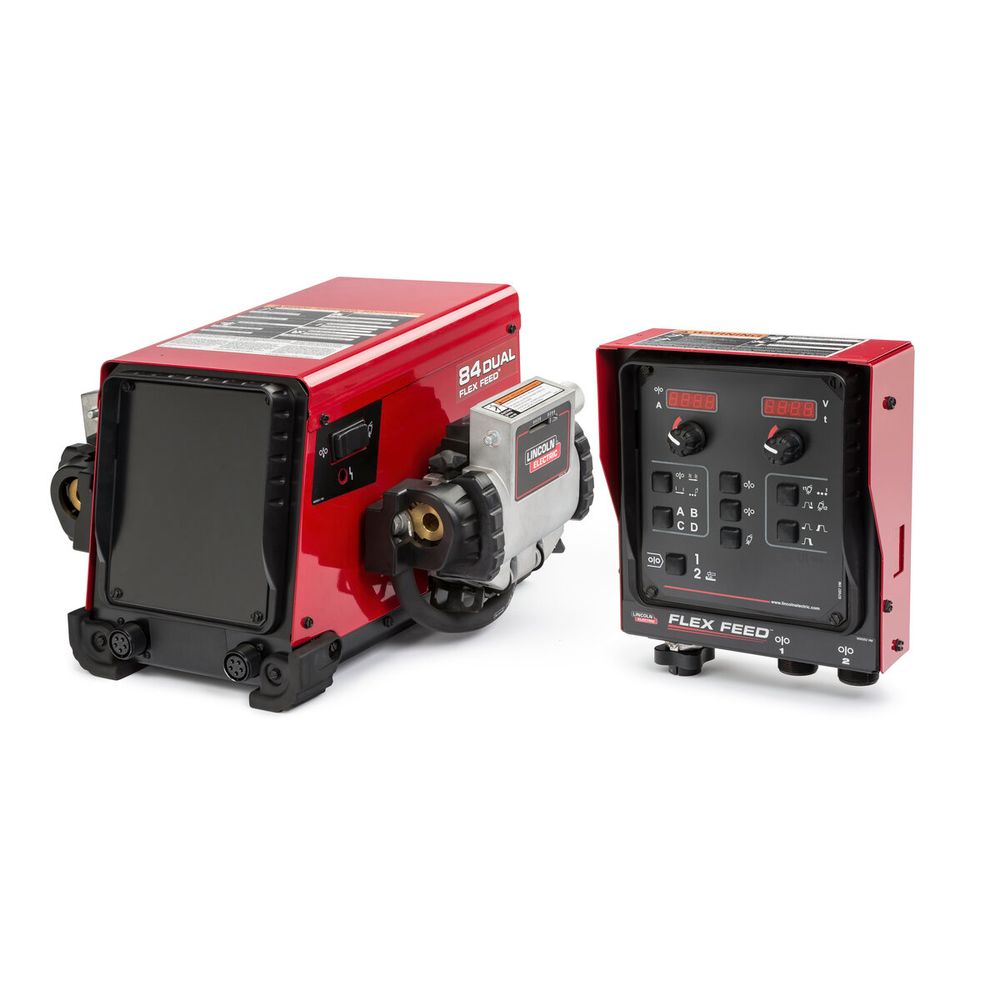

Lincoln Electric Flex Feed® 84 Dual Boom Wire Feeder One-Pak #K5002-11
Part Number: K5002-11
UPC: 015082631202
$7,634.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 84 Boom Wire Feeder One-Pak®, Dual #K5002-11
Take your welding processes to the next level with Lincoln Electric’s Flex Feed® 84 Dual Boom Wire Feeder One-Pak®. One-Pak® products come with everything needed for operation, and dual wire drives allow for quick diameter or alloy changes. Don’t worry about waiting for more wire with a standard feed speed of 35-500 in./min. (0.9-12.7 m./min.), upgradable to 50-750 IPM.
Highlights
- Dual head boom configuration
- Easy saving and quick recall of weld schedules with four memory locations per side
- Advanced MaxTrac® 4-roll wire drive design
- Flexible configurations with modular design
- Preset voltage displayed at the feeder
- Records arc-on time
- Timers for run-in, start, crater, preflow, postflow and burnback.
Industries
- General Fabrication
- Heavy Fabrication
What’s Included
- Flex Feed® 84 Dual Boom Wire Feeder
- User Interface
- Control Cable
- Inlet Bushing
- Gun Adapter Standard #2 - #4
Benefits of the Flex Feed® 84 Dual Boom Wire Feeder
- Rugged engineering provides consistent feeding over long conduit runs
- An encapsulated wire drive circuit board ensures maximum environmental protection
- Digital preset for voltage and wire feed speed
- The wire retract function increases safety by physically retracting the wire into the nozzle
- The durable cast aluminum feed plate protects wire and ensures consistent wire feeding
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 22.5 in x 30.6 in (419 mm x 572 mm x 777 mm) |
| Net Weight | 93 lbs (42.185 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Boom |
| Configuration | Dual |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Dual |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| More Information | WFS 50-750 IPM |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | General Fabrication Heavy Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 93 Lb(s) 0 Oz |
