Ships Free To Lower 48 States

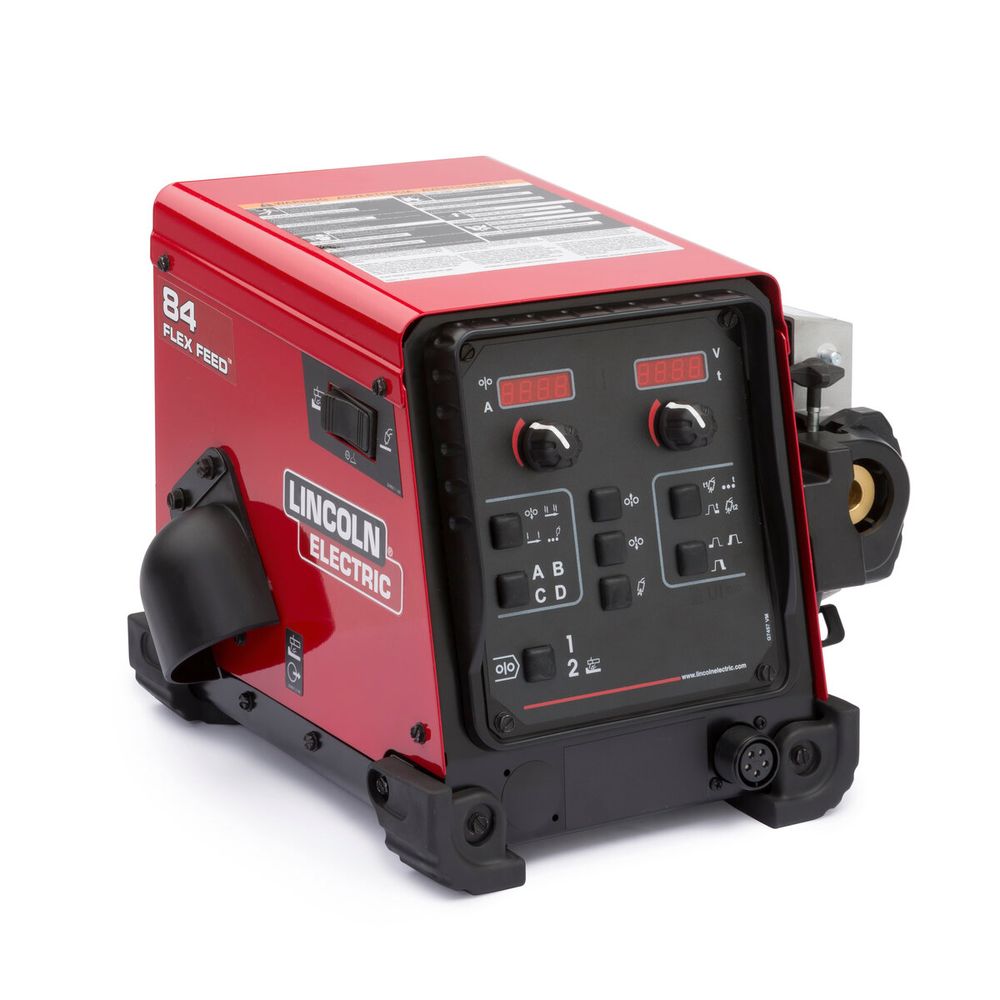

Lincoln Electric Flex Feed® 84 Single Bench with Contactor and Gouge Stud, No Wire Reel Stand #K5000-3
Part Number: K5000-3
UPC: 015082579979
$5,267.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 84 Bench Model with Contactor and Gouge Stud K5000-3
The Flex Feed 84 is a robust wire feeder designed for both welding and carbon arc gouging, offering electrical isolation between processes to enhance safety and efficiency.
Highlights
- Handles large-diameter wires up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored
- Gun adapters for superior electrical connections, reducing voltage drops
- Digital presets for voltage and wire feed speed
- Four user memories for saving welding procedures
- Modular design allows for easy configuration changes
Industries
- Metal Fabrication
- Construction
- Shipbuilding
- Automotive
- Heavy Industry
What's Included
- Flex Feed 84 wire feeder
- Standard 2 - 4 gun adapter
- Inlet bushing (K3929-1)
- Gouge stud
- Contactor
Benefits of Flex Feed® 84
- Electrically isolated connections for safety during gouging and welding
- User-selectable wire retract function to prevent operator injury
- Rugged cast aluminum feed plate for consistent wire feeding
- Tool-less drive rolls and split wire guides for easy maintenance
- Built-in interface for hard automation and flexible configurations
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 15.5 in x 28 in (419 mm x 394 mm x 711 mm) |
| Net Weight | 56 lbs (25.4 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| More Information | WFS 50-750 IPM |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 20.00 Inches |
| Length: | 23.00 Inches |
| Weight: | 48 Lb(s) 0 Oz |
Consumables
