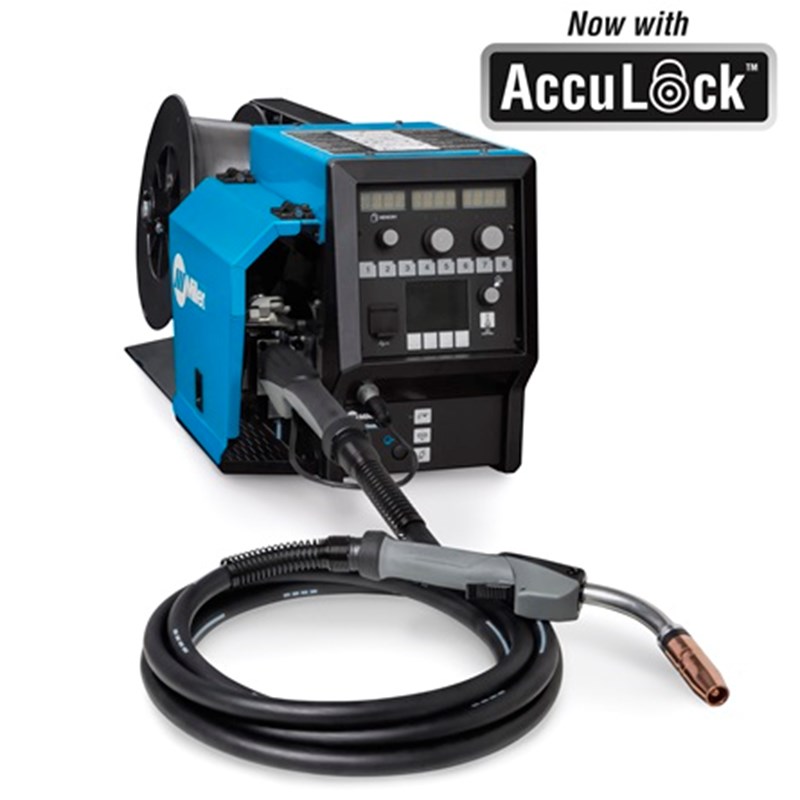

Miller Continuum™ Feeder (Single) MIL951631001

Welding type:

MIG
Power supply:

220V 3 Phase

460V
Material type:

Mild Steel

Stainless Steel

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.
AccuLock S Consumables can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!

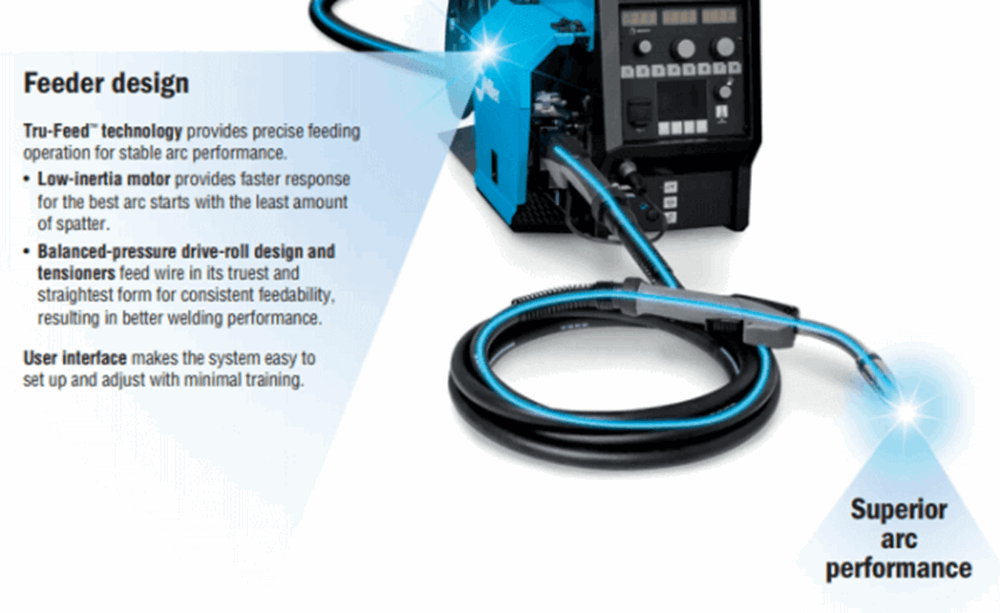

Tru-Feed™ technology provides precise feeding operation for stable arc performance.
Low-inertia motor provides faster response for the best arc starts with the least amount of spatter.
Balanced-pressure drive-roll design and tensioners feed wire in its truest and straightest form for consistent feedability, resulting in better welding performance.
Spring-loaded Accu-Mate™ connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding.
Quick-change dual-bearing drive rolls give you more consistent wire feeding.
Toolless positive-locking rotatable drive assembly allows operator to rotate the drive, eliminating severe bends in the wire feed path to extend gun-liner life and aid in feeding difficult wires.
Wind Tunnel Technology™ - internal airflow that protects electrical components and PC boards from dirt, dust, debris- greatly improving reliability.
Fan-On-Demand™ - operates only when needed, reducing noise, power consumption and the amount of airborne contaminants pulled through the machine.
System Name: | Miller Continuum™ Feeder (Single) #951631001 |
Applications: |
Construction equipment Automotive components Recreational vehicles Farm machinery Office furniture Mining machinery Industrial fabrication |
Processes: |
Accu-Pulse® pulsed MIG (GMAW-P) Versa-Pulse™ RMD® MIG (GMAW) High-deposition MIG (GMAW) Flux-cored (FCAW) Air carbon arc (CAC-A) |
Input Power: | Auto-Line™ 230–575 V, 3-phase, 50/60 Hz |
Rated Output: |
350: 350 A at 100% duty cycle 500: 500 A at 100% duty cycle |
Output Range: |
350: 20–400 A, 10–44 V 500: 20–600 A, 10–44 V |
SHIPPING DIMENSIONS |
|
Height: | 23.00 Inches |
Width: | 25.00 Inches |
Length: | 30.00 Inches |
Weight: | 53 Lb(s) 0 Oz |
