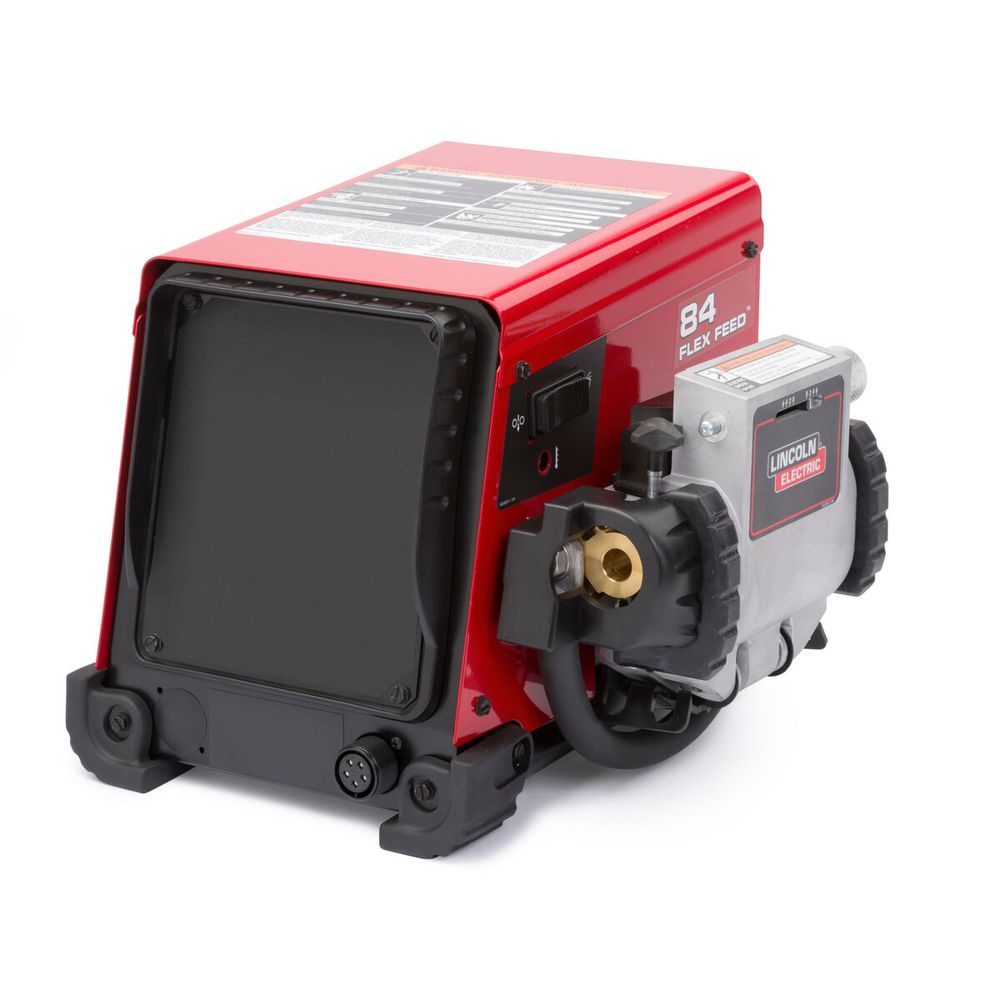

Lincoln Electric Flex Feed® 84 Single Wire Drive Boom Mount Feeder - No U/I #K5000-1
Part Number: K5000-1
UPC: 015082579955
$3,760.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Electric Flex Feed® 84 Wire Drive for Boom Mount Configurations #K5000-1
The Flex Feed 84 is a robust single-wire drive wire feeder designed for boom-mounted applications, ensuring reliable performance with Flex Feed 84 control boxes.
Highlights
- Consistent feeding over long conduit runs
- Handles large-diameter wires (up to 3/32 in. solid or .120 in. cored)
- Digital preset for voltage and wire feed speed
- Save up to four user memory settings
Industries
- Fabrication
- Manufacturing
- Construction
What’s Included
- Flex Feed 84 Single wire drive
- Gun adapter, Standard
- Inlet bushing | K3929-1
Benefits of the Flex Feed® 84
- Rugged Engineering: Encapsulated wire drive circuit board protects against environmental elements.
- Superior Process Control: Displays actual voltage and current during welding for real-time feedback.
- Safety Features: Electrically isolated stud for arc gouging and user-selectable wire retract function for added safety.
- Advanced MaxTrac® Design: Toolless adjustments for easy maintenance and uninterrupted wire feeding.
- Modular Flexibility: Easily configurable for single, dual, bench, or boom setups as needed.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 15.5 in x 28 in (419 mm x 394 mm x 711 mm) |
| Net Weight | 62 lbs (711 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Boom |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | Analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Wire Drive Only |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| More Information | WFS 50-750 IPM |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 23.00 Inches |
| Length: | 21.00 Inches |
| Weight: | 45 Lb(s) 0 Oz |
