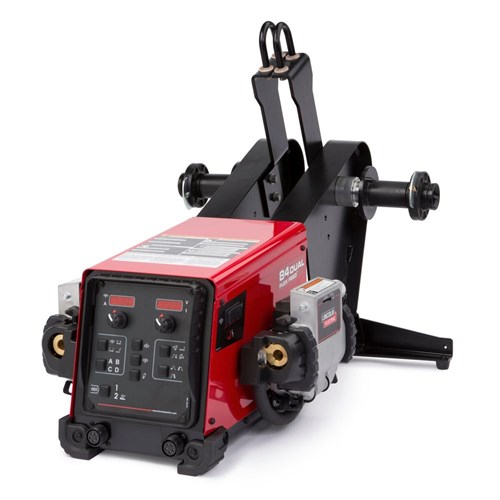

Lincoln Electric Flex Feed® 84 Dual Bench Wire Feeder w/ Contactor & HD Wire Reel Stand #K5002-2
Part Number: K5002-2
UPC: 015082580036
$7,815.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 84 Bench Wire Feeder, Dual w/ Contactor & Heavy Duty Wire Reel Stand #K5002-2
Take your welding processes to the next level with Lincoln Electric’s Flex Feed® 84 Dual Bench Wire Feeder packaged with a heavy-duty wire stand and built-in contactor. Dual wire drives allow for quick diameter or alloy changes, while the contactor ensures only one actively hot wire. Don’t worry about waiting for more wire with a standard feed speed of 35-500 in./min. (0.9-12.7 m./min.), upgradable to 50-750 IPM.
Highlights
- Dual wire drives for quick changes between different wire diameters or alloys
- Four memory locations to save and quickly recall weld schedules
- Built-in contactor ensures only one wire is hot at once
- Advanced MaxTrac® 4-roll wire drive design
- Modular design for flexible configurations
Industries
- Heavy Fabrication
- Structural Fabrication
What’s Included
- User Interface
- Heavy Duty Wire Reel Stand
- Gun Adapter Standard #2 - #4
- Control Cable
- Inlet Bushing
- Contactor
Benefits of the Flex Feed® 84 Dual Bench Wire Feeder
- Rugged engineering provides consistent feeding over long conduit runs
- An encapsulated wire drive circuit board ensures maximum environmental protection
- Digital preset for voltage and wire feed speed
- The wire retract function increases safety by physically retracting the wire into the nozzle
- The durable cast aluminum feed plate protects wire and ensures consistent wire feeding
- A heavy-duty wire reel stand can handle spools and coils up to 60 pounds.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 22.5 in x 30.6 in (419 mm x 572 mm x 777 mm) |
| Net Weight | 101 lbs (45.8 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Dual |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Dual |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| More Information | WFS 50-750 IPM |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 34.00 Inches |
| Width: | 40.00 Inches |
| Length: | 24.00 Inches |
| Weight: | 138 Lb(s) 0 Oz |
