S-74D (Single) #951198
Part Number: 951198
UPC: 715959575676
$5,164.00
$5,164.00*
SAVE $0.00
Documents
Videos
MIG Welding
Remote Voltage Control
3-Year Power Warranty

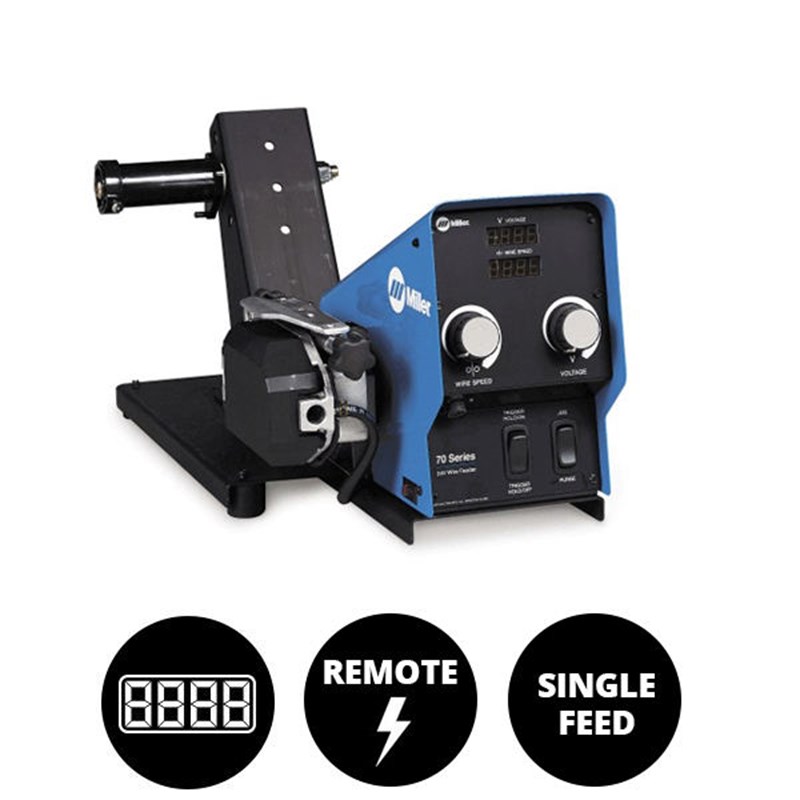

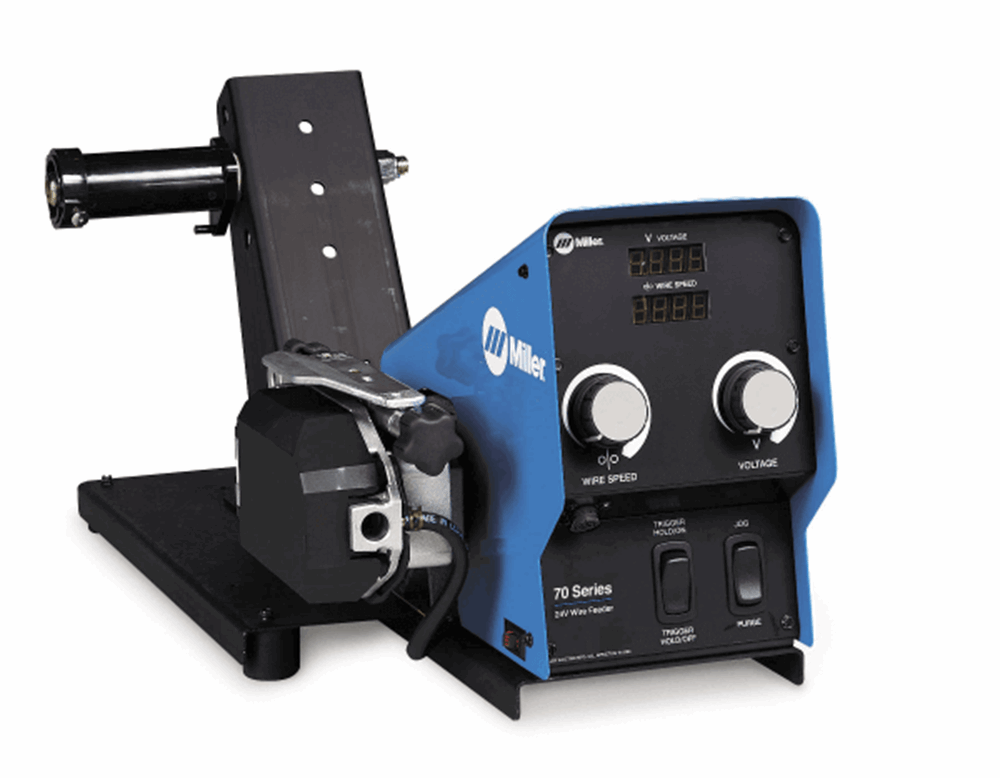

S-74D (Single) #951198
Standard, simple feeder for most heavy-industrial applications providing increased accuracy and control of the most common weld parameters.
WHAT'S INCLUDED
- S-74D (Single)

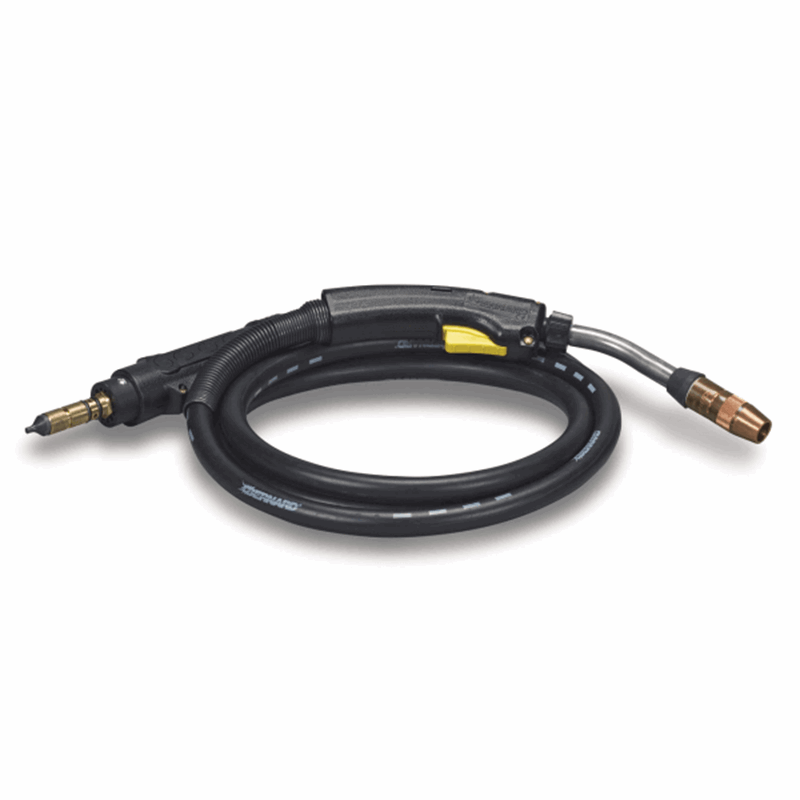

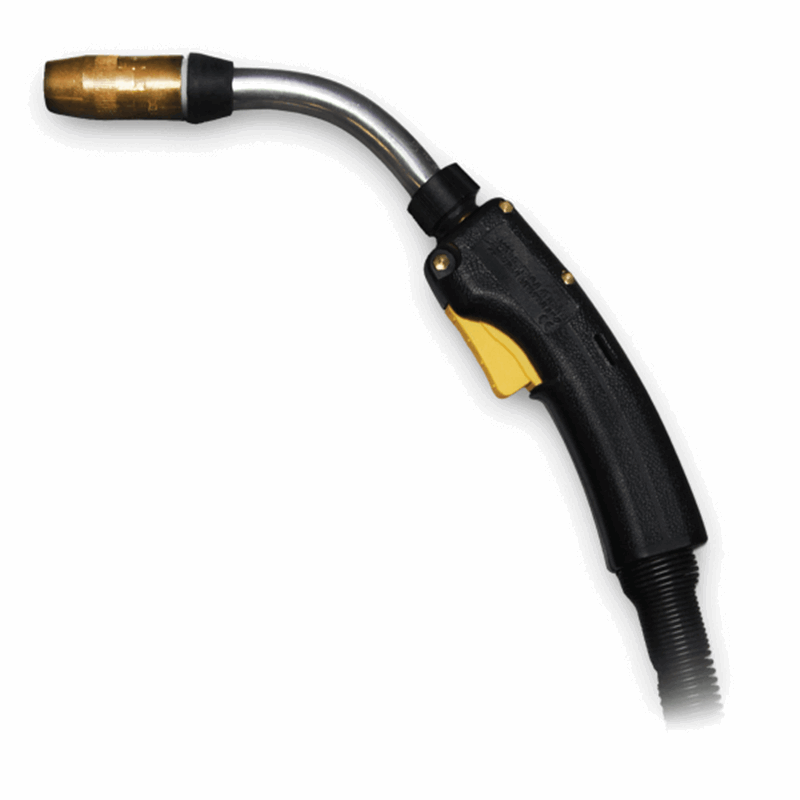

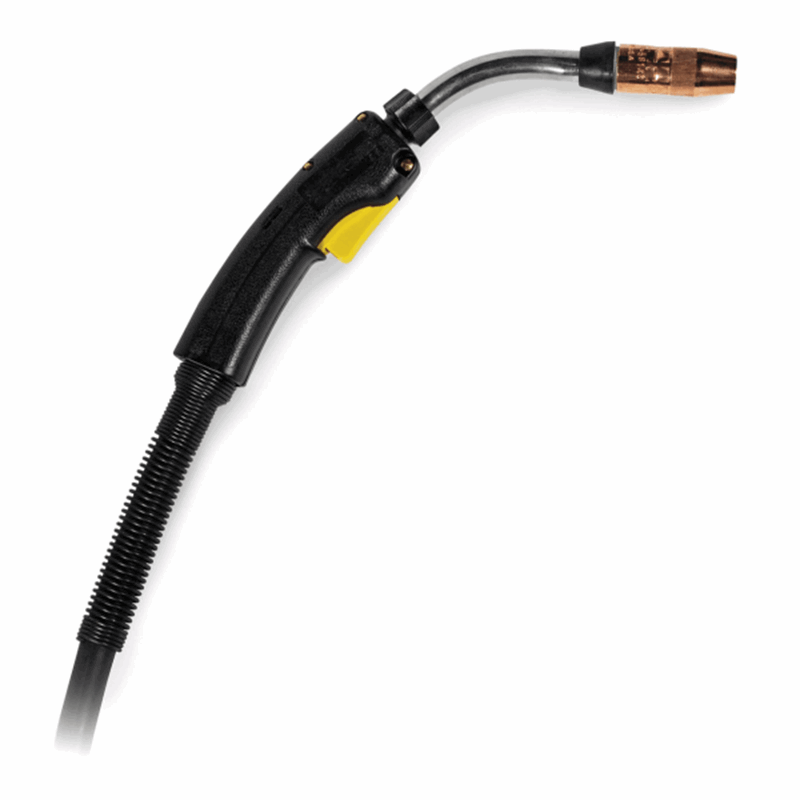

- BTB 400A Gun
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

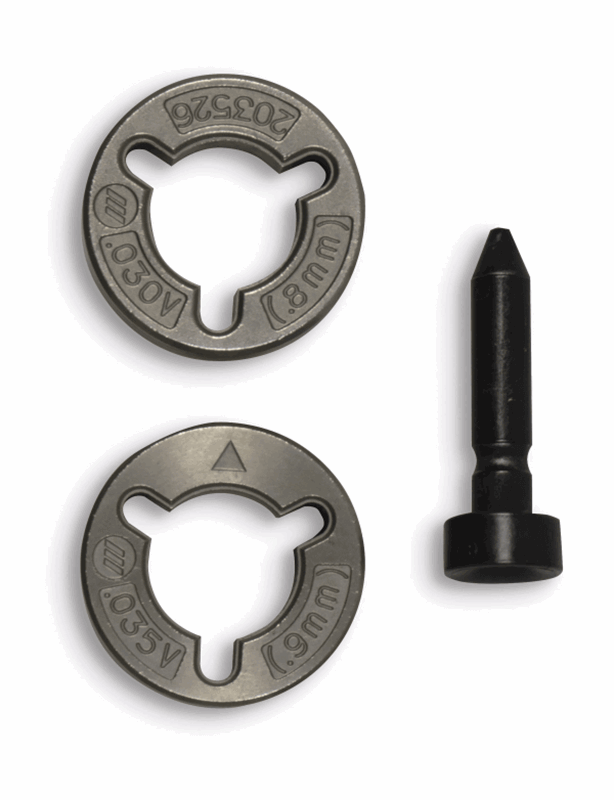

- .035-.045 reversible dual V drive rolls

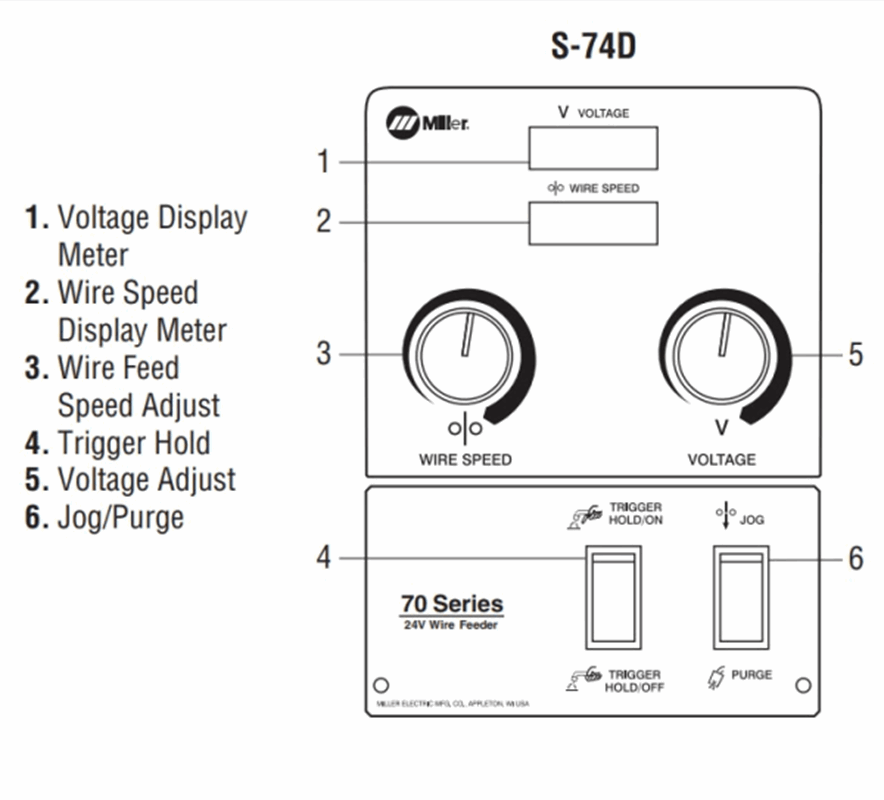

Digital Meters
Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.
Remote Voltage Control
Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.
Available in Dual-Wire Models
Allows two different wire types to be available on one feeder, avoiding downtime from changing spools and drive rolls.
Toolless Rotatable Drive Assembly
Allows operator to rotate the drive housing, allowing a straight path for wire flow.
Reduced Maintenance
High-torque permanent-magnet motor, sealed ball bearing gear drive and solid-state speed and brake control are maintenance free for long life.
Trigger Hold
Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.
Quick-Change Drive Rolls
Save time with standard, quick-change drive rolls.
Remote Configurations
Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.
Shop Welders Supply to find more high-quality welders and other equipment for industrial welding.
GENERAL SPECIFICATIONS
| Title | S-74D (Single) |
|---|---|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Input Circuit Welding Rating | 750A at 100% duty cycle |
| Power Source Compatibility | CV |
| Welding Power Source Type | CV |
| Wire Feeder Type | Bench |
| Wire Feed Speed | 50 IPM - 780 IPM |
| Wire Diameter | Flux Cored 0.023 in 0.094 in |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 12.00 Inches |
| Width: | 14.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 68 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Can this be used with a remote voltage control?
A - Yes.
Q - What size wire does it handle?
A - .023 to 5/64" diameter wire at speeds ranging from 50 to 780 ipm.
