Ships Free To Lower 48 States
Lincoln Electric Flex Feed® 84 Single Drive Boom One-Pak® (230/460V) #K5000-11
Part Number: K5000-11
UPC: 015082631196
$5,326.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 84 Boom Wire Feeder System

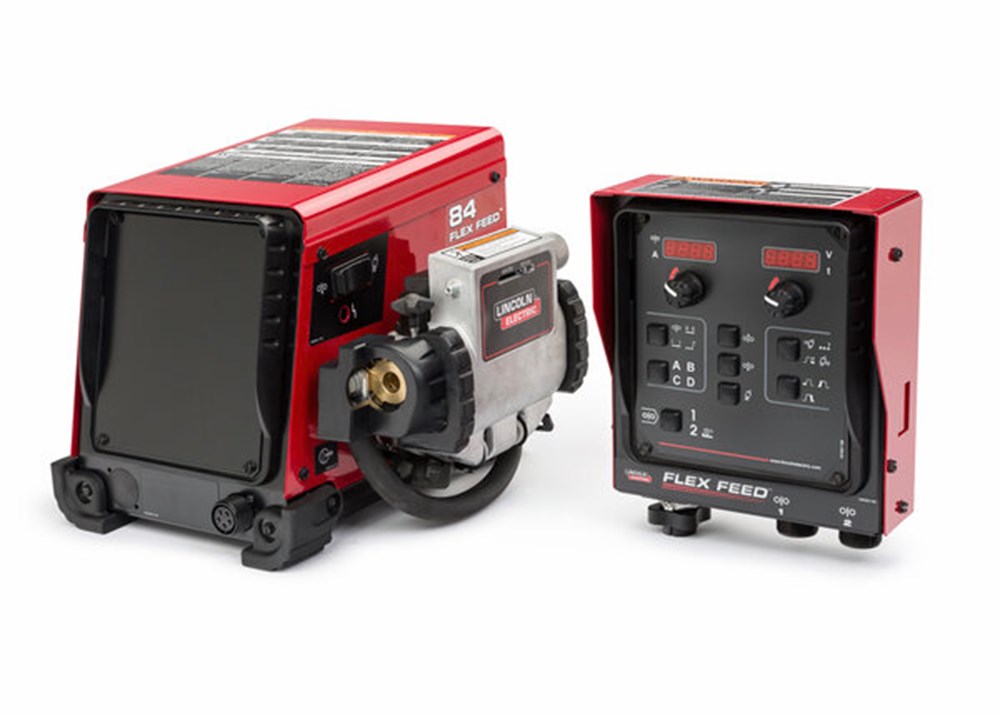

The Lincoln Electric Flex Feed® 84 is a robust single-wire drive boom configuration designed for efficient welding operations. It supports large-diameter wires up to 3/32 in. (2.4 mm) solid and .120 in. (3.2 mm) cored wire, ensuring high performance in demanding environments.
Highlights
- Consistent feeding over long conduit runs
- Handles large-diameter wires (up to 3/32 in. solid or .120 in. cored)
- Digital presets for voltage and wire feed speed
- Up to four user memory locations for quick procedure recall
- Rugged encapsulated circuit board for maximum protection
Industries
- General Fabrication
- Structural Welding
- Heavy Manufacturing
- Automotive
- Shipbuilding
What’s Included
- Flex Feed 84 Single Boom (K5000-1)
- User Interface (K5004-1)
- Control Cable (K1797-25)
Benefits of the Flex Feed® 84
- Modular design for flexible configurations
- Advanced MaxTrac® 4-roll wire drive design for reliable feeding
- Safety features including an electrically isolated stud for gouging
- User-selectable wire retract function for enhanced safety
- Built-in interface for easy integration with automation systems
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 16.5 in x 15.5 in x 28 in (419 mm x 394 mm x 711 mm) |
| Net Weight | 56 lbs (25.4 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| More Information | WFS 50-750 IPM |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 62 Lb(s) 0 Oz |
