All Categories/ SHOP BY BRAND/ Hypertherm/ Powermax Plasma Cutters/ By Hypertherm
REPLACED BY #087187 Get the best price on the Powermax 85 Plasma Cutter
Get the best price on the Powermax 85 Plasma Cutter
Handheld plasma cutter from Welders Supply
FREE shipping to lower 48 states for Hypertherm Powermax 85

Powermax85 (200-600 V CSA) with 75° and 15° Hand Torches, 25' Leads, CPC Port & Voltage Divider #087144

Part Number: 087144
This Item Has Been Discontinued and has been replaced by Hypertherm Powermax85 SYNC Plasma Cutter w/ 25 ft. 75° & 15° Hand Torches - 087187 - Level up today!

Cut capacity:

1 - 2" Capacity

1 - 2" Capacity

Plasma Torch Type:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • High cut capacity plasma cutter1" Cut Capacity
  • Single or three phase power inputMultiphase
  • 220V or 460V power inputMulti-Voltage
  • 25ft torch leads25' Lead

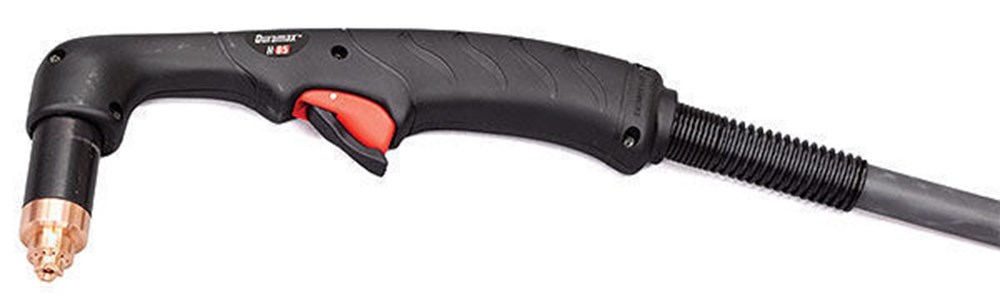

  • Handheld plasma torch included75° Hand Torch
  • Hypertherm 3 year warranty3-Year Power Warranty
  • Student rebate availableFirst Time Student Rebate

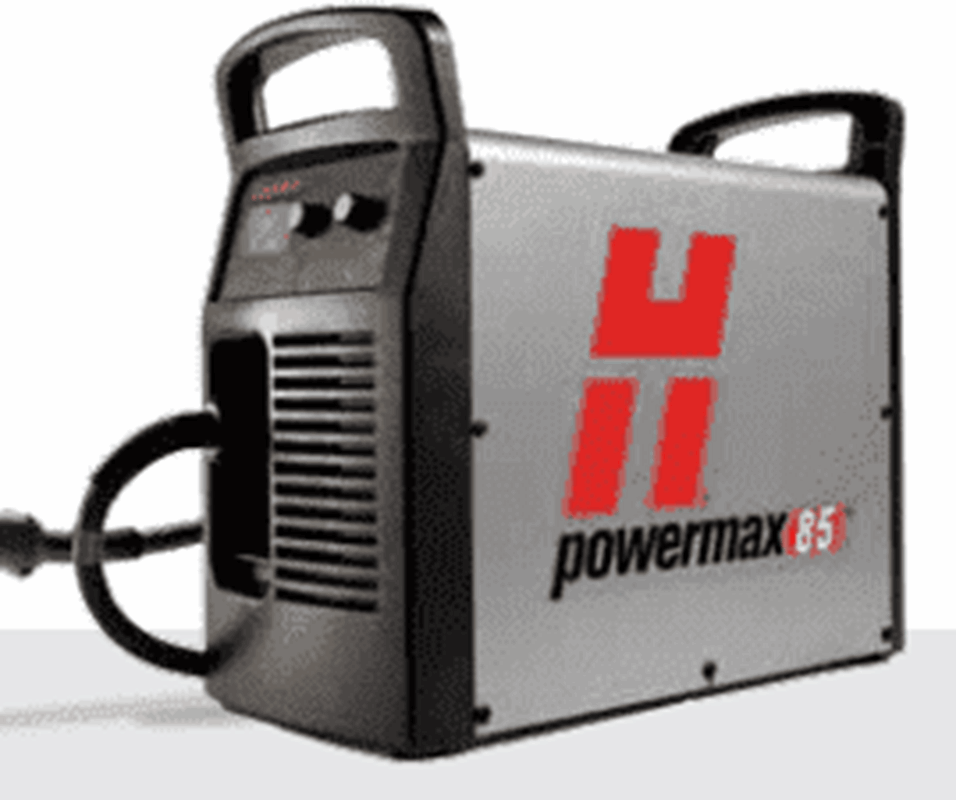

Hypertherm Powermax85 Plasma Cutters #087144

Powermax 85 (200-600 V CSA) with 75° and 15° Hand Torches, 25' Leads, CPC Port & Voltage Divider #087144

Hypertherm Powermax 85 #087144 product overview video

The Powermax 85 is a robust and high-powered plasma cutter designed to tackle your toughest cutting tasks with ease. Built by Hypertherm, renowned for its innovative technologies and unmatched durability, this machine is a true workhorse. With a maximum output current of 85 amps, it delivers the power you need to effortlessly cut through metals up to 1" (25 mm) thick and perform precision gouging.

Equipped with Smart Sense™ technology, the Powermax 85 automatically adjusts the gas pressure, ensuring consistent and optimal performance. Say goodbye to unreliable starts - the SpringStart™ feature eliminates moving parts in the torch, guaranteeing reliable ignition every time.

Operational costs are reduced thanks to electrode end-of-life detection in the power supply and the long consumables life. The package includes the Powermax 85 power supply with CPC Port and Voltage Divider, along with 75° and 15° mechanized torches and a 25-foot lead.

With a variety of Duramax™ torch options available, including hand cutting or gouging, robotic cutting or gouging, portable automation, and X-Y table cutting, the Powermax 85 provides unrivaled versatility for any cutting application.

HYPERTHERM Powermax 85 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 85 handheld consumable kit or Powermax 85 mechanized consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

Other Versions of the Powermax 85:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters



Torches compatible with the Powermax 85:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Plasma Cutting Torches

Hypertherm Powermax 85
Input Voltages

 200-480 V, 1-PH, 50/60 Hz

 200-600 V, 3-PH, 50/60 Hz
Kilowatt output  12.2 kw
Input current @12.2 kW

 200/208/240/480 V, 1-PH 70/68/58/29 A

 200/208/240/480/600 V, 3-PH 42/40/25/18/17 A
Output current  25-85 A
Rated output voltage  143 VDC
Duty cycle @ 104°F      60% at 85 A, 230-600 V, 3-PH
 60% at 85 A, 480 V, 1-PH
 50% at 85 A, 240 V, 1-PH
 50% at 85 A, 200-208 V, 3-PH
 40% at 85 A, 200-208 V, 1-PH
 100% at 66 A, 230-600 V, 1/3-PH
Open circuit voltage  305 VDC
Dimensions with handles

 H: 17.9 in

 W: 9.2 in

 D: 19.7 in
Weight w/25' torch  71 lb (32 kg)
Gas supply  Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure

 Cutting: 400 scfh, 6,7 scfm @85 psi

 Gouging: 450 scfh, 7,5 scfm @ 70 psi
Input power cable length  10 ft
Power supply type  Inverter - IGBT
Cuttable metals

Aluminum

Mild Steel

Stainless Steel
Engine drive requirement  20 kW for full 85 A output
Certifications  CSA-certified for use in the Americas and Asia, except China
Warranty  Power supplies have a 3-year warranty and torches a 1-year warranty



Capacity Thickness Cut speed
Cutting
Recommended 25 mm (1") 500 mm/min (20 ipm)
  32 mm (1-1/4") 250 mm/min (10 ipm)
Severance (hand cutting) 38 mm (1-1/2") 125 mm/min (5 ipm)
Pierce* 20 mm (3/4")
 * Pierce rating for handheld use or with automatic torch height control
Capacity Metal removal rate Groove profile
Gouging
Typical gouge 8,8 kg/hr
(19.5 lbs/hr)		 5,8 mm D x 7,1 mm W
(0.23" D x 0.28" W)

Hypertherm Powermax 85 Error Codes and Troubleshooting

Hypertherm Powermax 65 Error Codes Hypertherm Powermax 85 Error Codes

Additional Powertherm 85 errors and fault codes

Cut Charts for the Powermax85 (mild steel, stainless steel & aluminum)

SHIPPING DIMENSIONS
Height: 17.90 Inches
Width: 9.20 Inches
Length: 19.70 Inches
Weight: 71 Lb(s) 0 Oz

Product Questions and Answers

Q - What is the recommended cutting capacity? A - 1" at 20 ipm, 1 1/4" at 10 imp.

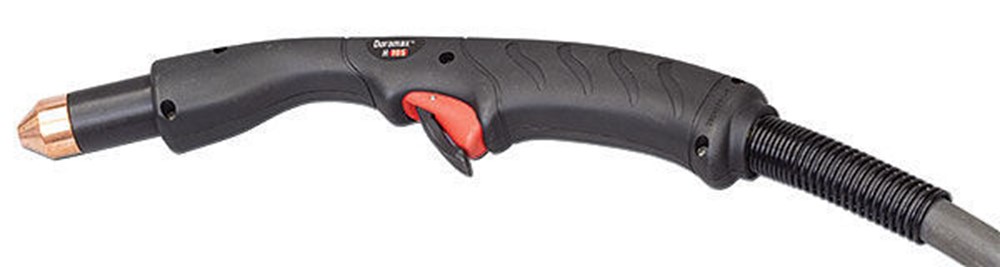

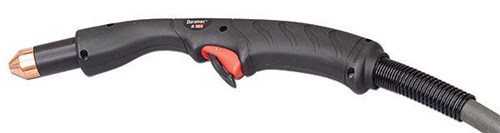

Q - What hand torches are included with the system? A - 75-degree and 15-degree hand torches are included.
Q - Do I need to adjust the air pressure? A - The Smart SenseTM technology does the adjusting for you. No need to change it.
Q - What is the output amps minimum and maximum? A - 25-85 Amps
Q - What is the CPC port? A - The CPC port is a connection for a machine torch to be used with mechanized tables and systems, such as a CNC table.

How to set-up hand torch:

  1. Turn OFF.

    Locate power button and turn welder off.

  2. Choose consumables.

    Choose hand torch consumable components(shield, retaining cap, nozzle, electrode, swirl ring).

  3. Check compatibility.

    Review owners manual for compatibility of consumables.

  4. Install consumables.

    Assemble consumables in correct order.
