Thermal Dynamics Cutmaster 102 Plasma Cutter w/ 20' 180° Mechanized Torch (220V 1/3PH) #1-1330-1

1" Cut Recommended (1¾" max)
208V - 480V Single Power Supply
Lightweight & Portable
1Torch SL100
Spare Parts Kit Included
20' (6.1m) Leads
4-Year Warranty

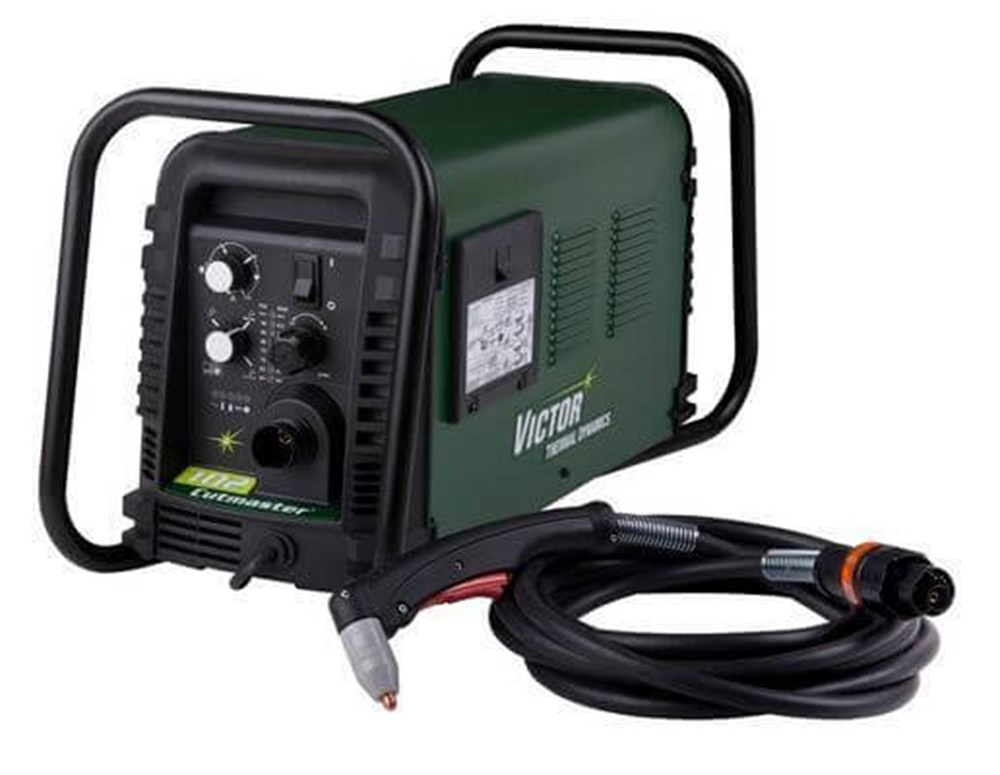

Victor Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

The CUTMASTER 102 is the fastest cutting 1" (25 mm) machine on the market today. The Cutmaster 102 Plasma Cutter's lightweight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine you can buy. A Thermal Dynamics 1Torch SL100 is included with this system.

Cutmaster 102 Plasma System Features

All user controls located on the front panel
Color coded LEDs display status conditions
Storage compartment for easy access to spare parts and consumables
Versatile 1Torch with ATC disconnect simplifies adding lead extensions or converting to a machine torch
Industry's only 60 Amp drag tip
True Guard roll bar facilitates transportation and increases protection
Multi-voltage operation from 208 to 480 Volts in a single power supply
Auto Pilot Restart instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability.
20 ft. lead
Spare parts kit included
Maximum cut capacity of 1¾" (45 mm)--More than any other plasma cutting system in its class

Shop other Plasma Cutters from Welders Supply.

Other Versions:
1-1330-2 460V 20 Ft. Hand Torch
1-1331-1 208-230V 50 Ft. Hand Torch
1-1331-5 600V 50 Ft. Hand Torch
1-1330-5 600 V 20 Ft. Hand Torch
1-1331-2 460V 50 Ft. Hand Torch

Specifications
Max Amperage Output - (Amps)	100
Output Power - (Kw)	12
Recommended Cut - Inches (mm)	1 - " (25)
Max Cut - Inches (mm)	1¾ - " (45)
Pierce Rating - Inches (mm)	3/4 - " (20)
Input Voltage - (Volts, Phase, Hz)	1/3 Phase 50/60Hz208/230V
Duty Cycle (@ 40 deg C)	60% @ 100A 80% @ 80A 100% @ 70A
Amperage Draw	95 (230V, 1 Phase) 45 (230V, 3 Phase)

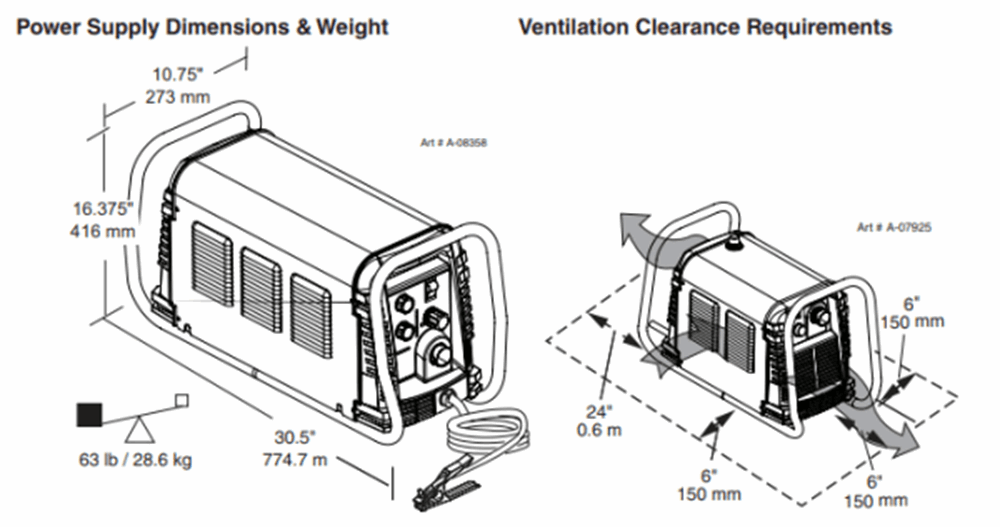

Dimensions (H x W x L) Inches (mm)	15 x 12 x 30 (381 x 305 x 762)
Weight - lbs (kg)	62 (28.1)

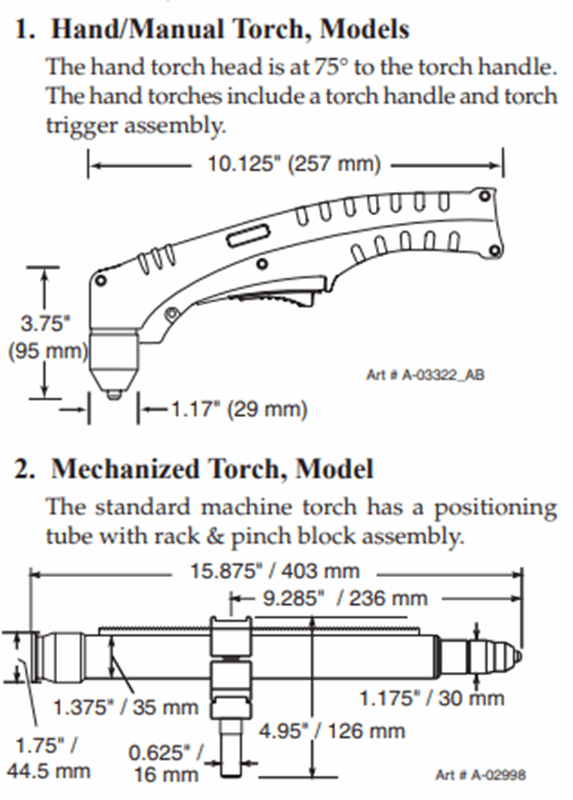

Torch Model	SL100® Hand, Automated,& Mechanized
Air Pressure - psi (bar)	70 (4.8)
Flow - Cfm (l/m)	7.5 (212)
Warranty (Unit/Torch) Parts and Labor	4/1

-1330-1

SHIPPING DIMENSIONS
Height:	15.00 Inches
Width:	12.00 Inches
Length:	30.00 Inches
Weight:	62 Lb(s) 0 Oz

Thermal Dynamics Cutmaster 102 1-1330-1 Service Manual

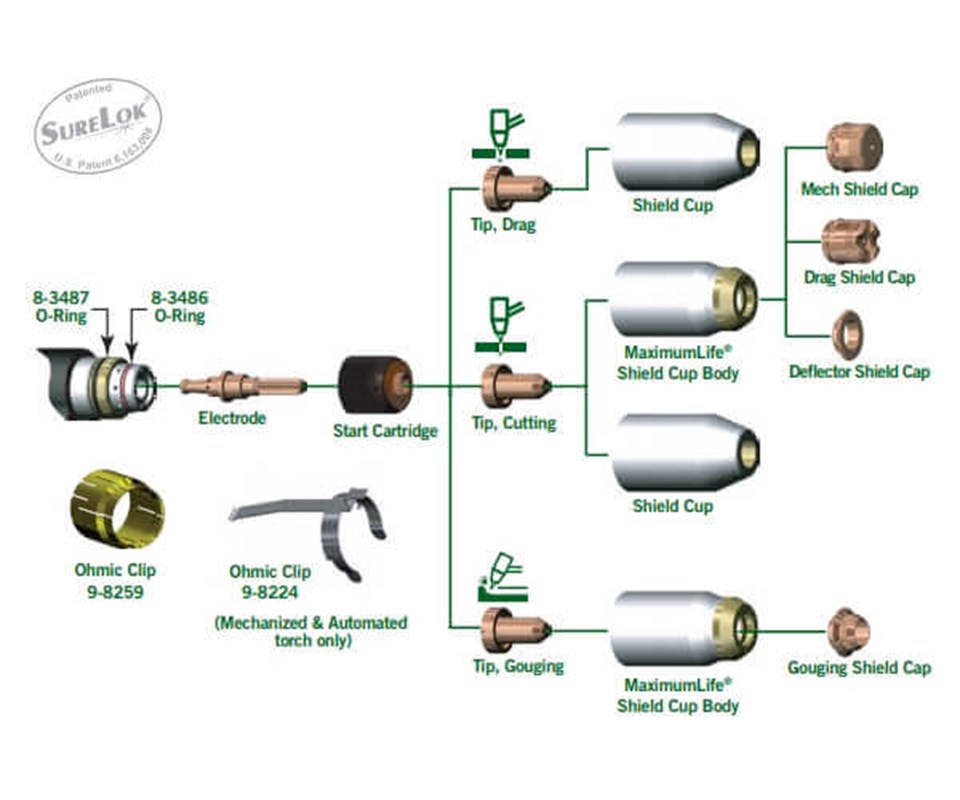

Consumables

W850-115 Metabo Angle Grinder #601232420

Angle Grinder W850-125 #603608420

$73.99

View

BSX Welders Backpack, Tool Bag, Gig Bag #GB10...

$119.25

View

Classic Cloth #244751

$29.70

View

MILLER HANDY SHEET METAL GUAGE KEY RING PART# 229895

MILLER HANDY SHEET METAL Gauge KEY RING #2298...

$6.34

View

Nemesis Safety Glasses Blue Mirror lens #1448...

$6.25

View

Nemesis Safety Glasses Smoke/Mirror #25688

$6.25

View

1015 Tillman Weldersupply.com branded glove #1015L

Standard Welding Glove #1015L

$10.20

View

Strong Hand UD Series 4-IN-1 Clamp #UD45-C3

UD Series 4-IN-1 Clamp 4 1/2" #UD45-C3

$20.60

View

Welding Cap #A350

$10.30

View

Anchor Welpers Pliers for MIG Welding YS-50

Welper YS50

$22.50

View

Winter Gloves #1578B

$7.30

View

Product Questions and Answers

Q - Can you use CO2 instead of compressed air. A - No, you can't use CO2 in any plasma cutter, but you can use nitrogen.

Q - Will this work on thin sheet metal? A - Yes, it will cut from thin sheet up to 1" thick and more, but for thinner metals you have to dial down the amperage and use an appropriate tip. The Consumables Kit (#5-0110) has tips for this.

How to connect a torch :

Choose the right torch.
Use only the Thermal Dynamics SL 100/Manual or SL100/Mechanical Torch to connect to the Cutmaster 102. Maximum torch lead length is 100 feet.
Align the ATC male connector on torch lead with the female receptacle and push together.
Secure the connection by turning the locking nut clockwise until it clicks. Do not use locking nut to pull the torch lead into the receptacle and do not use tools to secure connection.
Torch is ready for use.
Power on unit and use torch.
