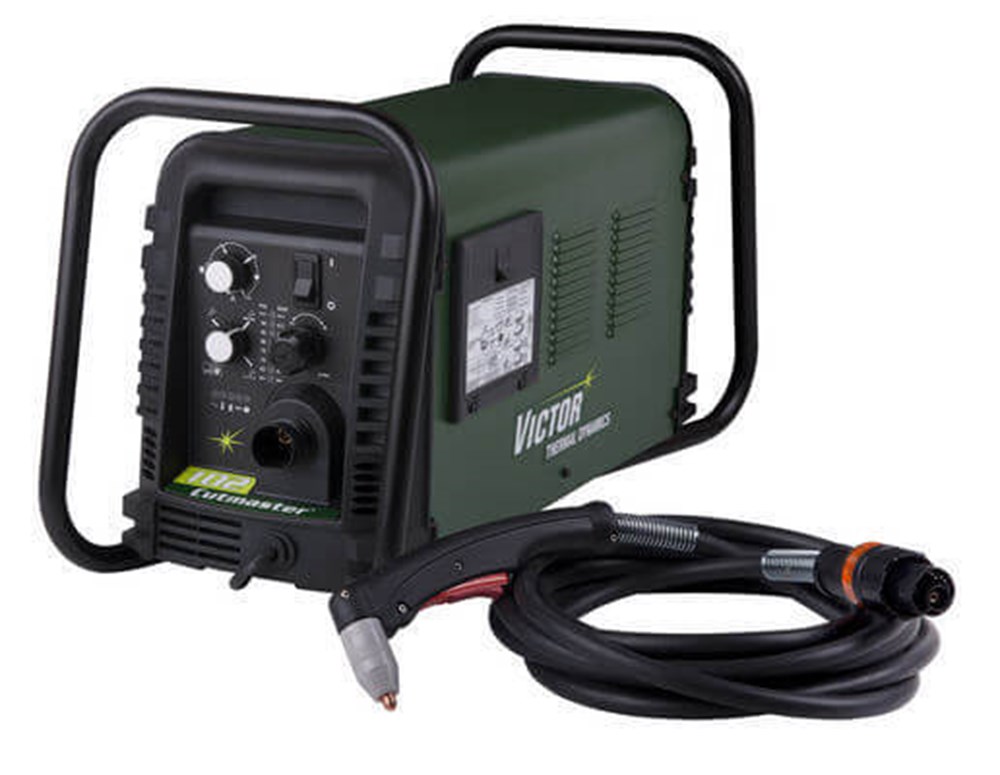

Thermal Dynamics Cutmaster 102 Plasma System #1-1330-2
CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 102 is the fastest cutting system on the planet.
Part Number: 1-1330-2
Warranty: 4 Years
Included Features
Other Features
General Specifications |
|
Process(es) |
Manual Air Plasma Cutting |
Maximum Amperage Output |
100A |
Output Power |
12 kW |
Maximum Cut |
1 3/4" (45 mm) |
Pierce Rating |
3/4" (20 mm) |
Recommended Cut |
1" (25mm) |
Amperage Range |
20-100 Amps |
Industrial Applications |
Heavy Fabrication |
|
Manufacturing |
|
Contractors |
Input Voltage |
460V 1/3 Phase 50/60 Hz Ready |
Duty Cycle (@ 40 deg C) |
60% @ 100A |
|
80% @ 80A |
|
100% @ 70A |
Amperage Draw |
95A @ 230V, 1 ph |
45A @ 230V, 3 ph |
|

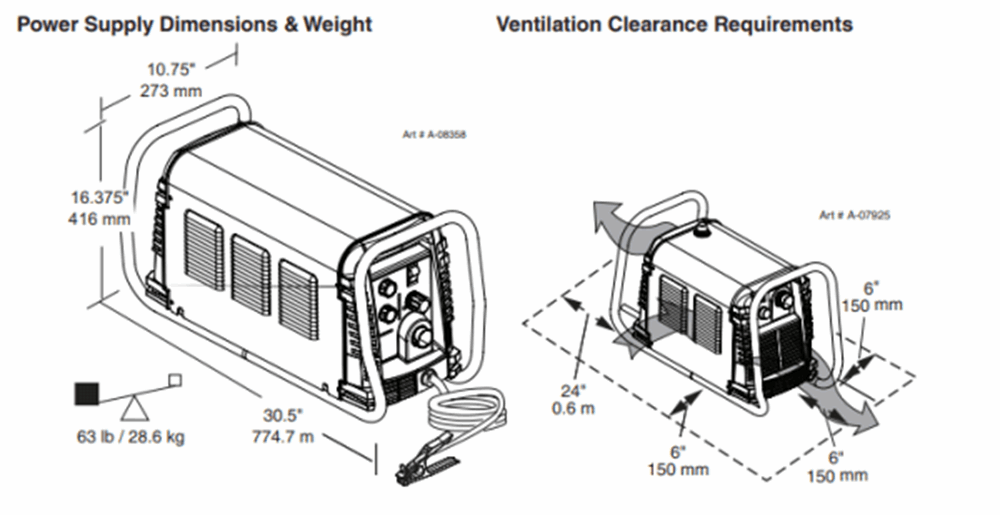

Dimensions: (H x W x D) |
15" (381 mm) x 12" (305 mm) x 30" (762 mm) |
Weight |
62 lbs (28.1kg) |
Pilot |
Start Cartridge |
Control |
Hand Torch Switch or Hand Pendant Control |

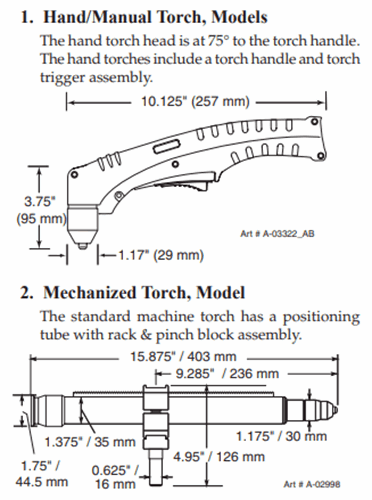

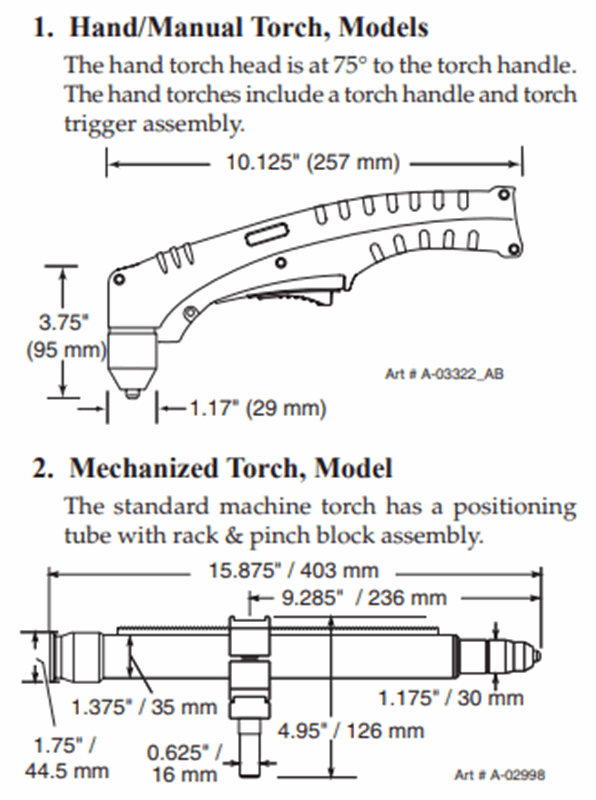

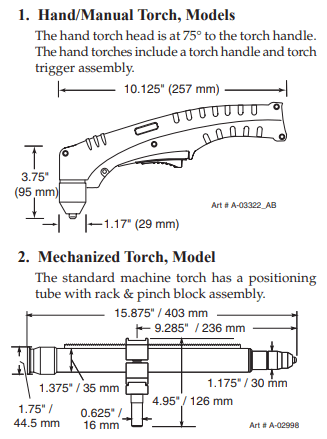

Torch Specifications |
|
Hand, Automated & Mechanized |
SL100 |
Air Pressure |
70 psi (4.8 bar) |
Flow |
7.5 cfm (212 l/m) |
Torch |
SL100 with ATC (hand) |
Certifications |
IP23S |
SHIPPING DIMENSIONS |
|
Height: | 15.00 Inches |
Width: | 12.00 Inches |
Length: | 30.00 Inches |
Weight: | 62 Lb(s) 0 Oz |
