Thermal Dynamics ® Cutmaster® 82 with SL60® 75 Degree hand torch Plasma Cutter, 460 V #1-1130-2

Thermal Dynamics ® Cutmaster® 82 Plasma Cutter w/ SL60® 75° hand torch (460V) #1-1130-2

Name: Thermal Dynamics Cutmaster 82 Plasma Cutter w/ 75° Hand Torch (460V 3PH) #1-1130-2
Brand: ESAB
SKU: ESA1-1130-2

Part Number: 1-1130-2

UPC: 699488003681

$3,603.97 + Free Shipping $4,427.97*

SAVE $824.00

Features
Specs
Documents
Videos
Consumables
FAQS

1" Cut Capacity
208-230/460 VAC
400/600VAC
1 ph, 50/60 Hz;
3 ph, 50/60 Hz
9 kW Output
43 lbs
4-Year Warranty

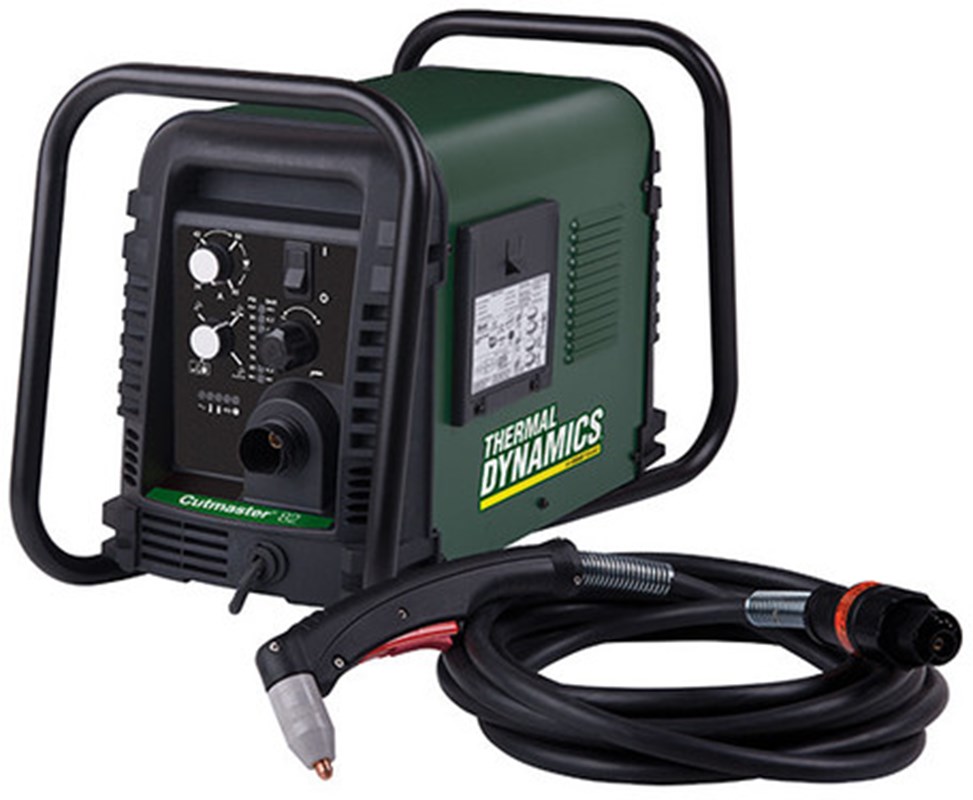

Thermal Dynamics Cutmaster 82 w/ 75 Degree Hand Torch Plasma Cutter (460V) #1-1130-2

The Cutmaster 82 plasma cutter weighs in at a mere 19.5 kg (43 lbs) while still offering superior cutting power. Don’t let the size of this unit fool you, it’s more than capable of cutting 25 mm (1 in.) with a maximum capability of 40 mm (1 1/2 in.). This unit, like all other TRUE^™ Cutmasters, is equipped with the 1Torch^®.

Key Features

4-Year Power Supply Warranty
1-Year Torch Warranty

Applications:

Straight line cutting
Gouging

What's Included:

1Torch^®

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your Cutmaster 82 order!

Check out the full line of Thermal Dynamics products by ESAB and shop all ESAB equipment and accessories.

Cutmaster 82 Specifications
Output Power	9 kW
Input Ratings	208-230/460 VAC, 1 ph, 50/60 Hz 600 VAC, 3 ph, 50/60 Hz 400 VAC, 3 ph, 50 Hz
Duty Cycle	80 A @ 40 % duty cycle 65 A @ 60 % duty cycle 55 A @ 100 % duty cycle
Input Voltage	72 A @ 230 V / 39 A @ 230 V 21 A @ 460 V
Gas Pressure	48 bar ( 70 psi )
Gas Flow	190 l/min ( 402 cfh )
Pierces	15 mm ( 5/8 in. )
Torch Air Pressure	4.8 bar ( 70 psi )
Torch Air Consumption	190 l/min ( 6.7 cfm )
Dimensions, L x W x H	6.1 m ( 20 ft ) 15.2 m ( 50 ft ) 610 x 305 x 381 m ( 24 x 12 x 15 ft )
Weight	19.5 kg ( 43 lbs )
Recommended Cut	25 mm ( 1 in. )
Maximum Cut	40 mm ( 1 1/2 in. )
