Thermal Dynamics Cutmaster 60i, 3 ph with SL60QD 50 ft 75° Hand Torch #1-5631-2X

TD Cutmaster 60i, 3 ph with SL60QD 1Torch 50 ft (15.2 m) 75° Head #1-5631-2X

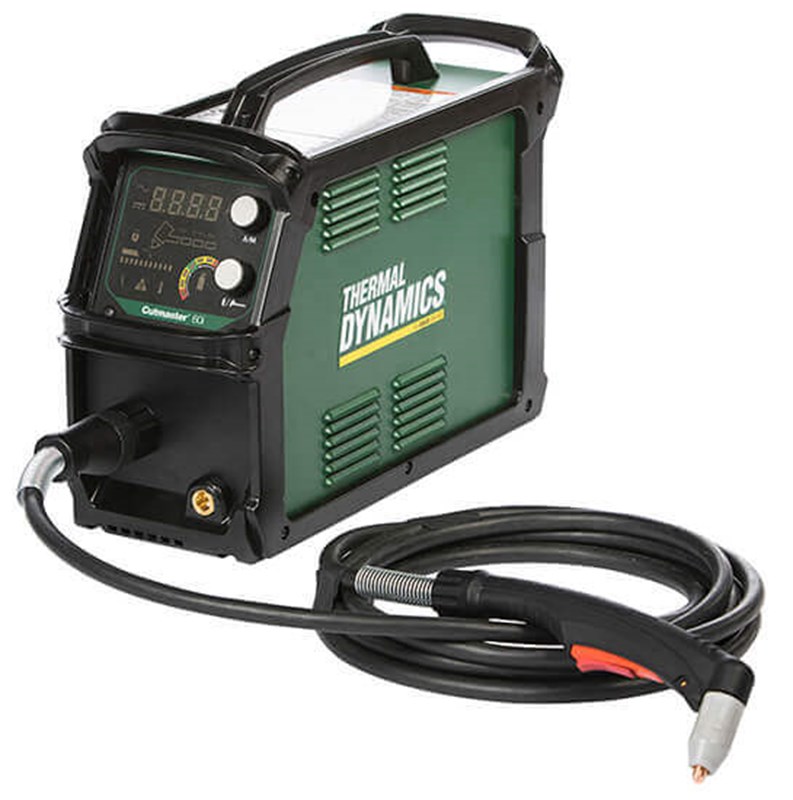

The Thermal Dynamics® Cutmaster® 60i 3-Phase plasma cutter with a 50-foot torch operates on smooth, stable and highly efficient 3-phase input power. It produces up to 60 amps of cutting output and automatically detects input voltage from 208V to 480V. It has a recommended cut capacity of 5/8" with a maximum sever capacity of 1 1/2". It also pierces up to 5/8". Weighing in at only 37 pounds, the Cutmaster 60i 3-Phase has the highest power-to-weight ratio in its class.

The Cutmaster 60i 3-Phase has a large digital display with a gas optimizer (automatically detects the optimal gas flow for your cutting application) and consumables end-of-life indicator. It comes with the new SL60QD™ 1Torch® which features a quick disconnect torch head for convenient, more economical replacement. The SL60QD plasma torch uses standard Thermal Dynamics 1Torch consumables.

The 60i comes complete with a detachable work lead and clamp and features an externally compressed air water separator for easy draining. The Cutmaster 60i carries ESAB's 4-year warranty on the plasma cutter and a 1-year warranty on the plasma torch.

Applications

• Agricultural Equipment
• Automotive Bodies
• Construction
• Fabrication
• General Manufacturing
• HVAC
• Repair and Maintenance
• Training Schools

Features

• 3-Phase input power provides a smooth, stable plasma cutting arc and is more efficient than 1-Phase models
• Weighs only 37 pounds - highest power-to-weight ratio in its class
• 7.6 kW rated output, 50% Duty Cycle at 60A with automatic multi-voltage detection from 208-480V; built for portability and durability with the integral multi-handle design
• SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology also available as an RPT Torch
• 5/8 in. (16 mm) recommended cut capacity with greater than 1-1/2 in. (38 mm) maximum sever and 5/8 in. (16 mm) pierce
• Pilot arc "On" setting for cutting expanded metal
• High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator
• Industry-leading 4-year warranty on power supply and 1-year warranty on torch

Comes Complete with:

• Cutmaster® 60i 3-phase plasma cutter
• SL60QD™ 1Torch® with ATC Quick Disconnect and 50 Foot Lead
• Spare Parts Kit
• 20-Foot Detachable Work Cable and Clamp with Dinse Connector
• Input Power Cable
• Operating Manual
• Filter Wrench
