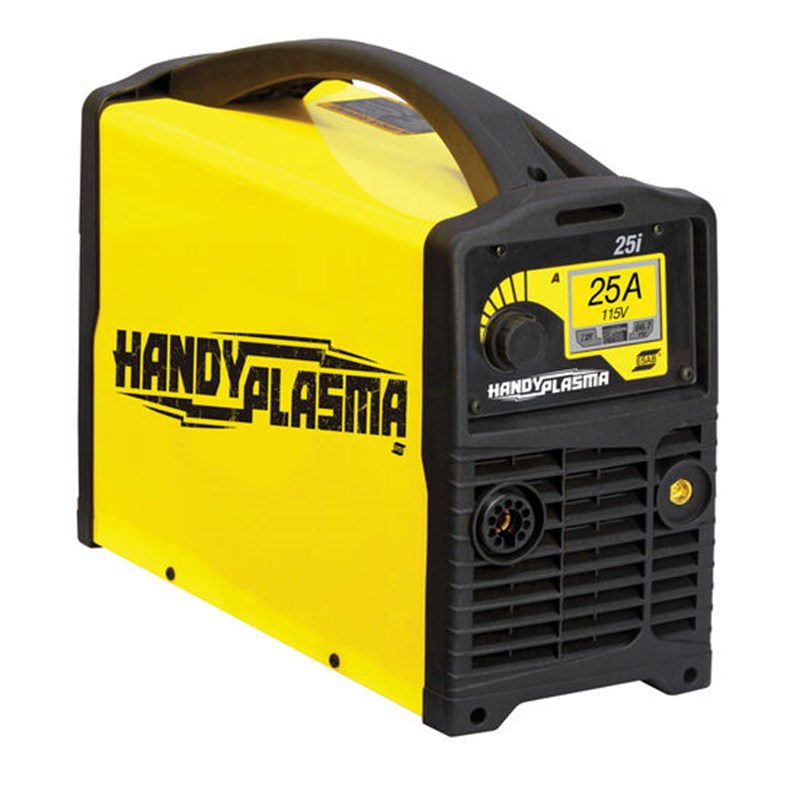

ESAB® HandyPlasma 25i Plasma Cutter, 115V #1-1601-25D

Part Number: 1-1601-25D
UPC: 662067330331
$1,150.38 + Free Shipping $1,249.00*
SAVE $98.62

Cut capacity:

3/8" Capacity

3/8" Capacity

Plasma Torch Type:

Handheld

Handheld

Power supply:

110V

110V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 3/8" capacity DIY plasma cutter3/8" Cut Capacity
  • 110V household outlet plasma cutter120V Household Power Input
  • Handheld plasma torch includedHandheld Torch Included
  • Lightweight, portable plasma cutterLightweight & Portable

ESAB HandyPlasma 25i - Lightweight DIY/Hobbyist Plasma Cutter

Unlock precision and power with the HandyPlasma 25i plasma cutter. The HandyPlasma25i is a portable, lightweight power source for plasma cutting. It contains a 115V 50/60 Hz single phase power supply for long-lasting use. A control knob manages all adjustments making it easy for its users. HandyPlasma 25i automatically detects inlet and outlet pressure, eliminating the need to constantly change gas. Gas is purged by a built-in automatic system.

What Sets the New ESAB HandyPlasma 25i Apart:

  • Torch trigger lock for increased safety
  • 2-year guarantee for the power source and a 3-month guarantee for the torch
  • Grate or plate cutting functions

Key Features/SPECS

Portable & Lightweight: 13.5 kg (29.7 lbs)

Maximum Cut Capacity: 8 mm

Easy to Use: 2.8" color TFT screen and large control knob for all adjustments


Applications:

  • Plasma Cutting
  • Repair & Maintenance
  • Industrial & General Fabrication

What's Included:

  • Plasma Torch
  • 3 m Work Lead with Ground Clamp
  • Shoulder Strap
  • Compressed Air Connector
  • Air Filter Wrench

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your ESAB® HandyPlasma 25i Plasma Cutter order!

Check out the full line of products by ESAB and shop all ESAB equipment.
ESAB HandyPlasma 25i Specifications
Output Power 3 kW
Input Ratings 115 VAC, 1 ph, 50/60 Hz
Duty Cycle 25 A @ 25 % duty cycle
Gas Pressure 5.5-7.6 bar ( 80-110 psi )
Gas Flow 110 l/min ( 3.9 cfm )
Pierces
Mild Steel
Stainless Steel
Aluminum

5 mm ( 3/16 in. )
Torch Air Pressure 4.6 bar ( 67 psi )
Enclosure Class IP21S
Certification Mark CSA
Recommended Cut
Mild Steel
Stainless Steel
Aluminum

5 mm ( 3/16 in. )
Maximum Cut
Mild Steel
Stainless Steel
Aluminum

8 mm ( 5/16 in. )
6 mm ( 1/4 in. )
5 mm ( 3/16 in. )
8 mm ( 5/16 in. )

SHIPPING DIMENSIONS

Height: 12.76 Inches
Width: 6.93 Inches
Length: 16.34 Inches
Weight: 29 Lb(s) 11 Oz
