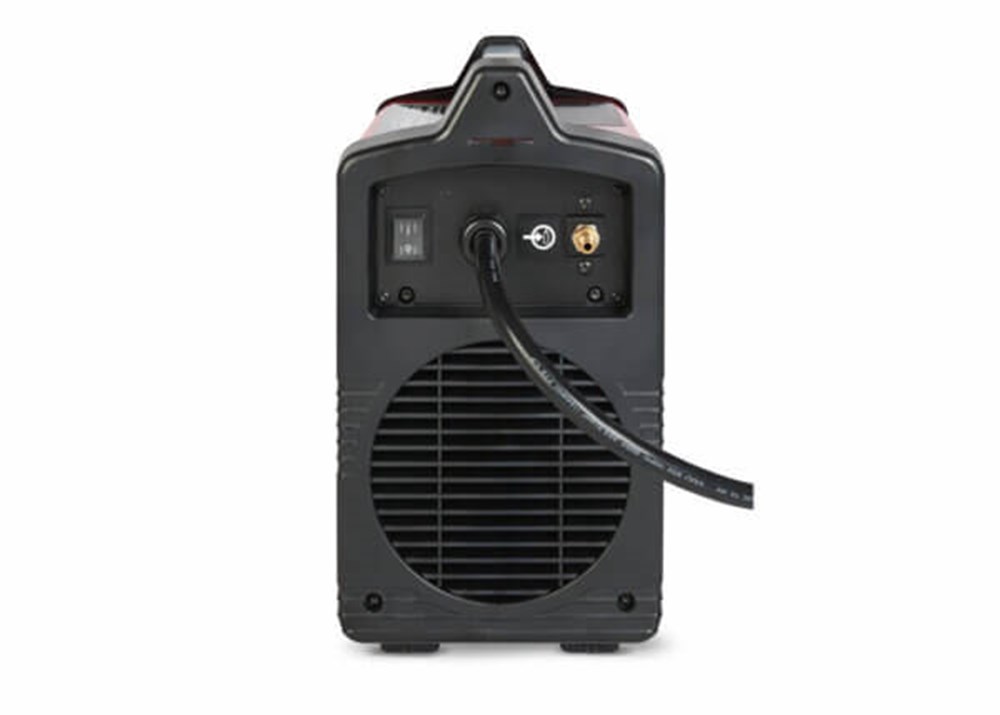

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - Rear fan & power cord

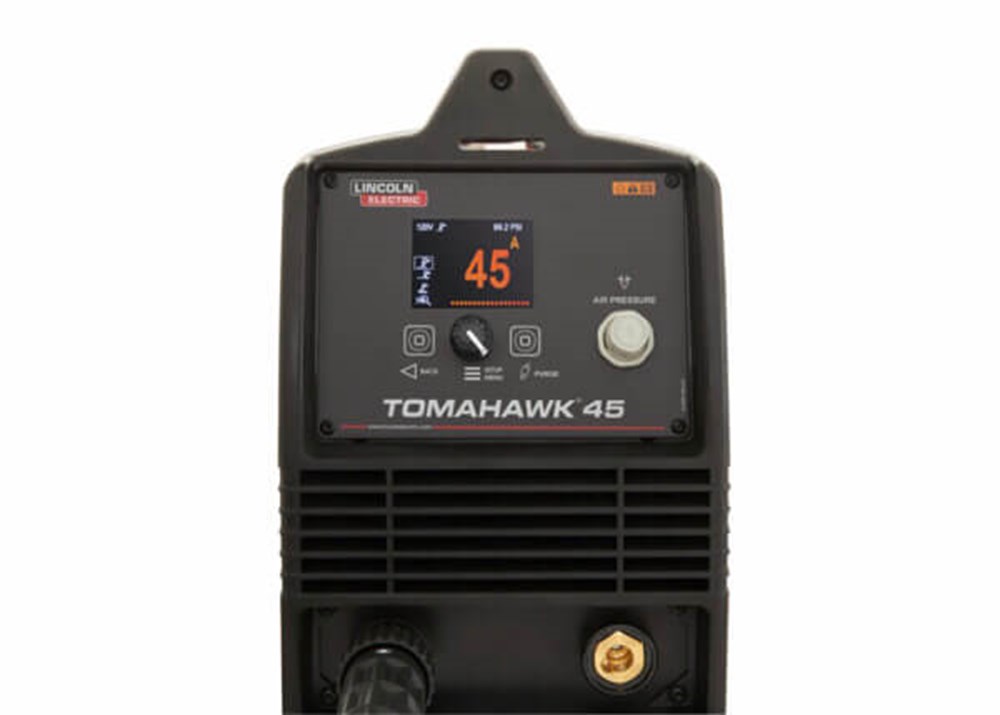

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - Control Panel

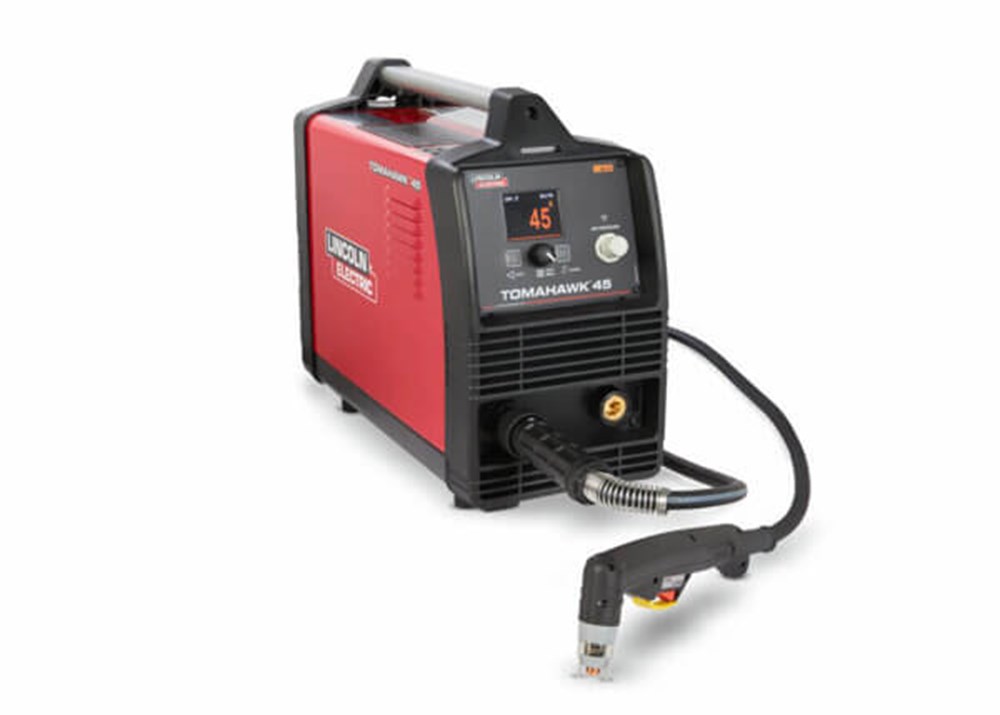

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - Power supply & torch

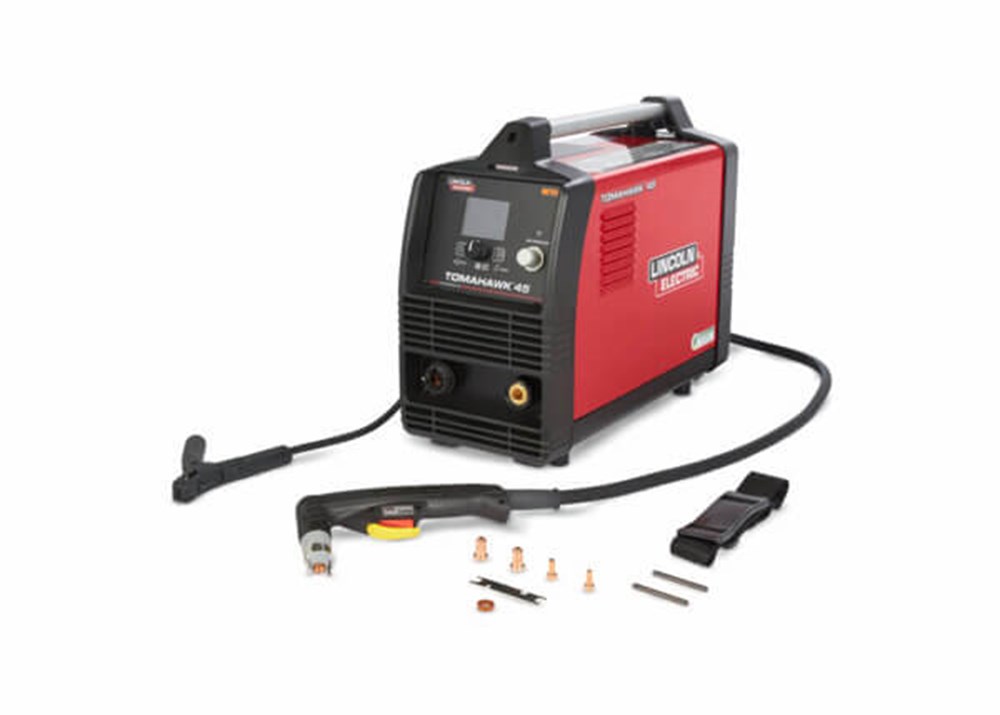

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - What's included

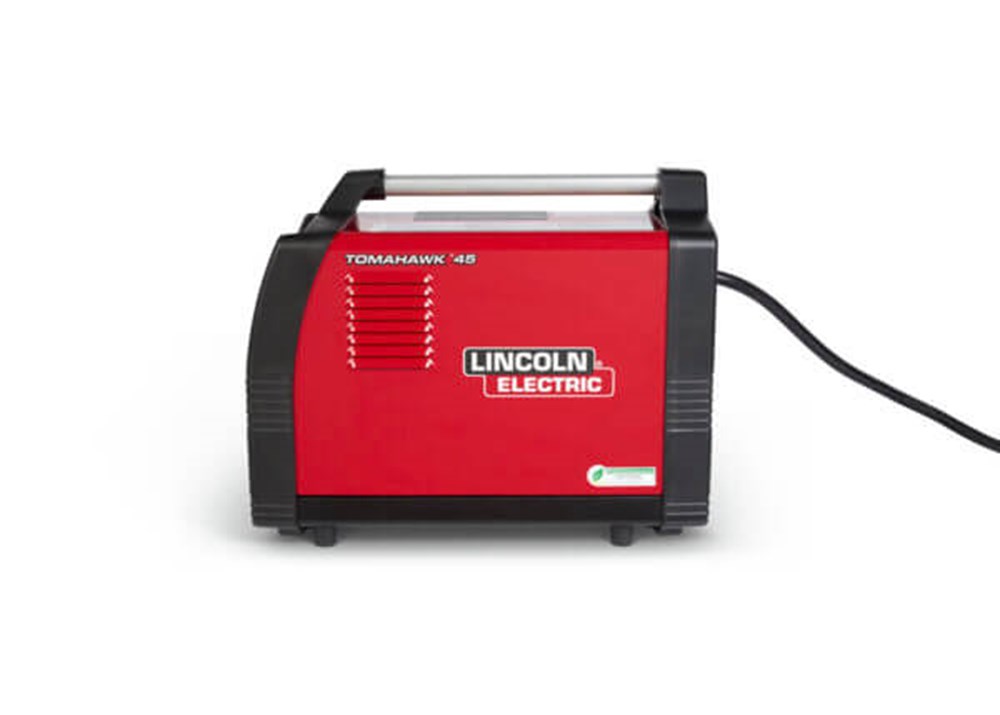

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - Left side panel

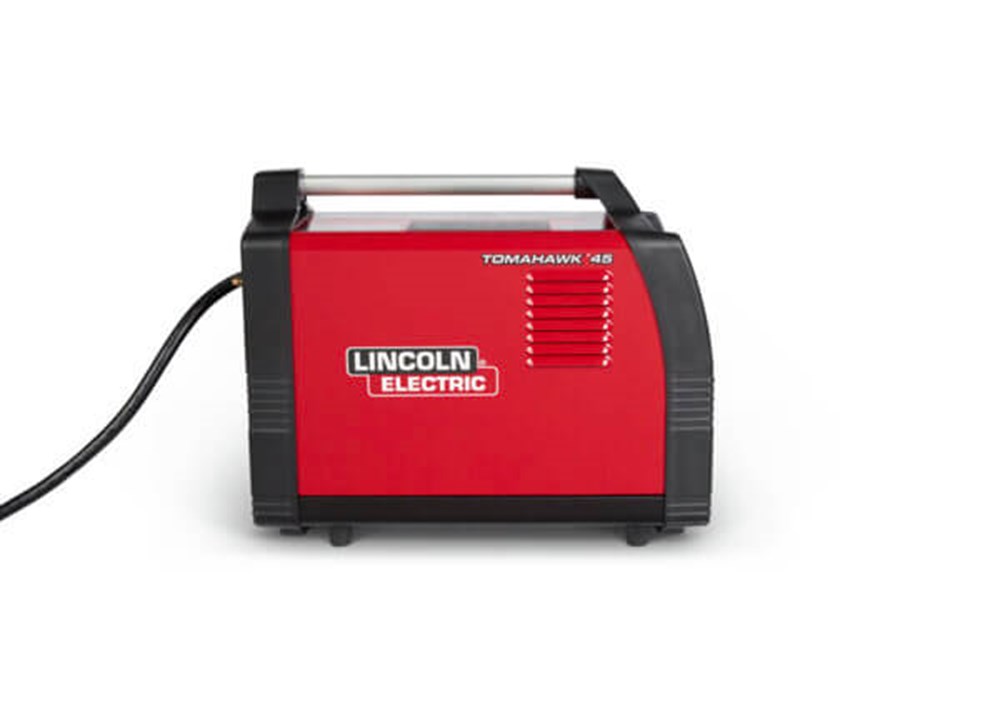

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 - Right side panel

Lincoln Electric Tomahawk® 45 Plasma Cutter #K5458-1 -

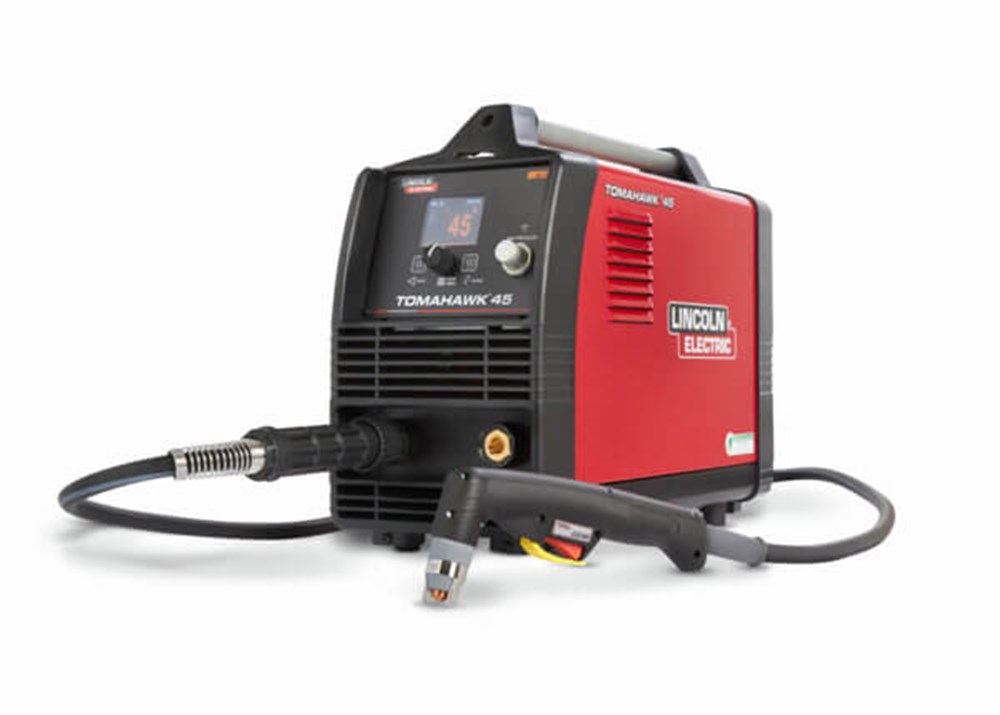

Lincoln Electric Tomahawk® 45 Plasma Cutter with 20 ft (6.1 m) Hand Torch #K5458-1

Name: Tomahawk 45 Plasma Cutter w/ 20' Hand Torch (220V 1PH) #K5458-1
Brand: Lincoln Electric
SKU: LINK5458-1

Part Number: K5458-1

UPC: 015082700137

Rebate Forms:

$500 MFR Rebate - Buy Red, Save Green

$2,319.00 + Free Shipping $2,319.00*

SAVE $0.00

Qualifies for IRS 179 Sale

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

Lightweight & Portable
Hand Torch Included
230V Input
1-Phase
No CPC/Serial Port
3-Year Lincoln Electric Warranty

Lincoln Tomahawk 45 Plasma Cutter w/ 20 ft Hand Torch #K5458-1

Plasma Cutting - Anywhere, Anytime

The Tomahawk 45 plasma cutting system is versatile and portable, weighing only 28 lbs. You can easily carry it to any job site and start cutting projects. This system can handle everything, whether cutting through thick metal or working with expanded metal. With its 45A capability, you can tackle even the most challenging cutting tasks. Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many failure problems associated with high-frequency start systems. The control system includes a Parts-in-Place™ feature to ensure consumables are in place before initiating the cutting or gouging process. Hook up the compressed air, grab the torch, and you’re all set.

Features of the Tomahawk 45

2.8 in. LCD Screen – For an easier and user friendly user interface.
Lightweight and Portable – Easily carried by one person.
Continuous Output Control – Focus the arc for different material thickness.
Touch Start System – Reliable plasma arc initiation without high frequency.
Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
Cool Operation, Long Consumable Life - Numerous torch consumables for a wide range of hand-held applications.
Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.

What's Included

(1) Tomahawk 45 Plasma Cutter

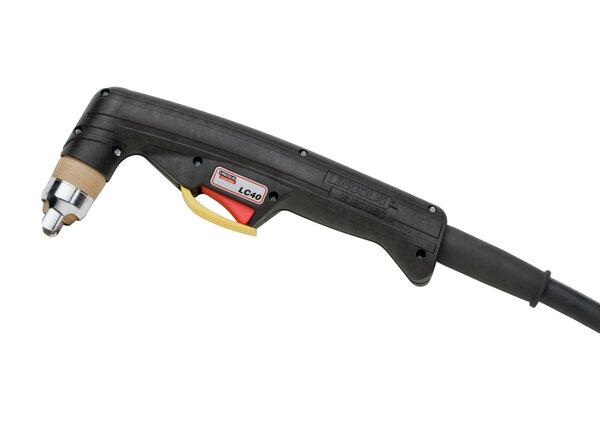

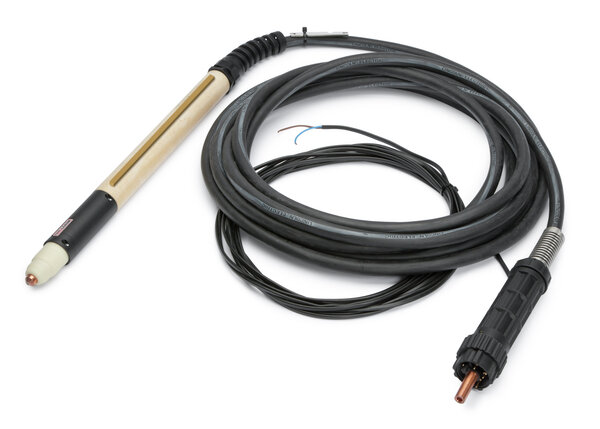

(1) K2847-1 LC40 Hand Torch 20 ft Cable

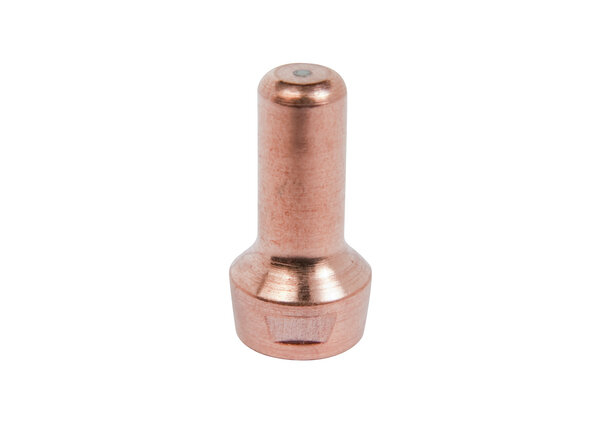

(3) KP2843-1 Electrode

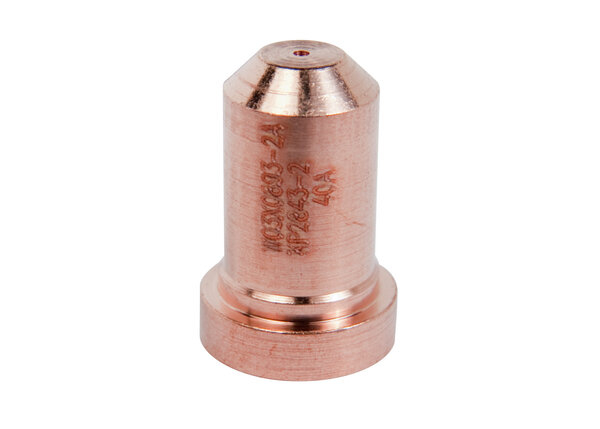

(3) KP2843-2 Nozzle 40A

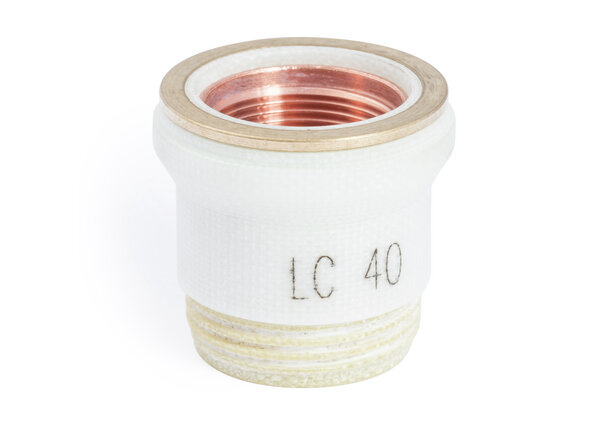

(2) KP2842-4 Swirl Ring

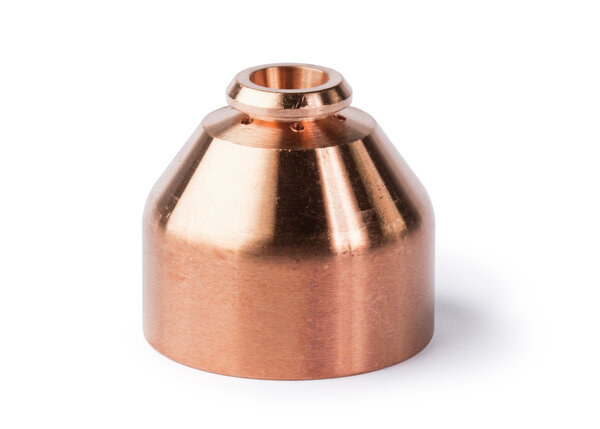

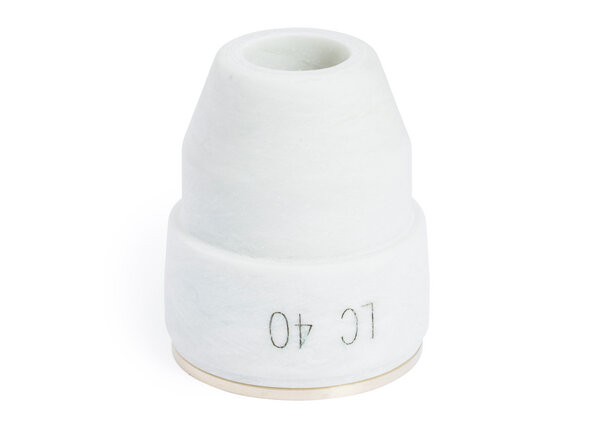

(1) KP2843-5 Retaining Cap (Standard)
(1) KP2843-2 Drag Spacer
(1) Air Regulator and Pressure Gauge
(1) Internal Water Separator
(1) Work Clamp and Cable
(1) Shoulder Strap
(1) Input Power Cord

Shop all plasma cutting machines & Lincoln Electric products at the best prices online, from Welders Supply.

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz)	230/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle)	30A/92V/100%
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle)	40A/96V/60%
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle)	45A/98V/45%
Phase 1: Input Current at Max Rated Ouput #1 (Current)	23A

Machines

Machines Processes	Plasma Gouging Plasma Cutting
Max Rating	45A

Plasma Machines

Plasma Machines Process	Cutting Gouging
Torch Included	Yes
Gas Supply	Air or Nitrogen
Gas Pressure Required	80 - 110 psi (6 -7.5 Bar)
Recommended Cutting Capacity (Mild Steel) (In/ft)	1/2 in @ 20 ipm
Recommended Cutting Capacity (Mild Steel) (mm/M)	12.7 mm. @ .51 m/min
Maximum Cutting Thickness (Mild Steel) (ln/Ft)	5/8 in @ 12 ipm
Maximum Cutting Thickness (Mild Steel) (mm/M)	15.9 mm. @ .30 m/min
Maximum Severance (Mild Steel) (In/Ft)	3/4 in @ 8 ipm
Maximum Severance (Mild Steel) (mm/M)	19.1 mm. @ .20 m/min
