Medium-duty outfits feature quality construction throughout and are built to provide reliability and extended service. The Miller - Smith MD Acetylene Outfit feature our proven in-tip gas mixing technology for acetylene gas and include torch-mount flashback arrestors. This combination greatly improves operator safety and increases torch life.

Miller - Smith MD Acetylene Outfit W/Acc, CGA 510 feature:

• Rugged, highly accurate Series 30&trade
• Regulators with 2-inch gauges constructed with Sure Seat&trade
• Technology and shatter-resistant polycarbonate lenses.
• A rugged cutting attachment and torch handle that are covered by the Miller True Blue™ warranty.

Further Features of the Miller - Smith MD Acetylene Outfit W/Acc, CGA 510:

• Graf-Tite® soft seats - Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
• In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
• Slip-in tip design — just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
• Removable high-pressure seat - Allows cleaning from back of tip.
• Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
• Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
• Triple o-ring seal - Provides positive gas seal, and allows rotation.
• Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
• Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
• Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.
• Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
• Replaceable hose connections - Hose connections are easily replaced if damaged.

Welders Supply has the best selection of Miller Welding equipment and accessories for sale online.

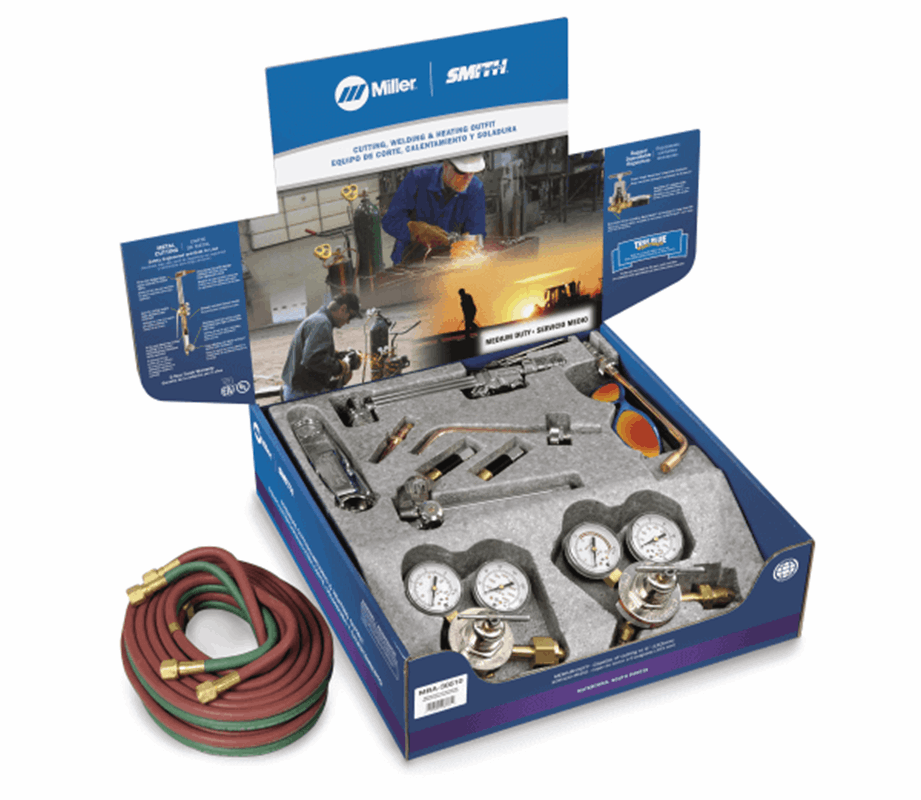

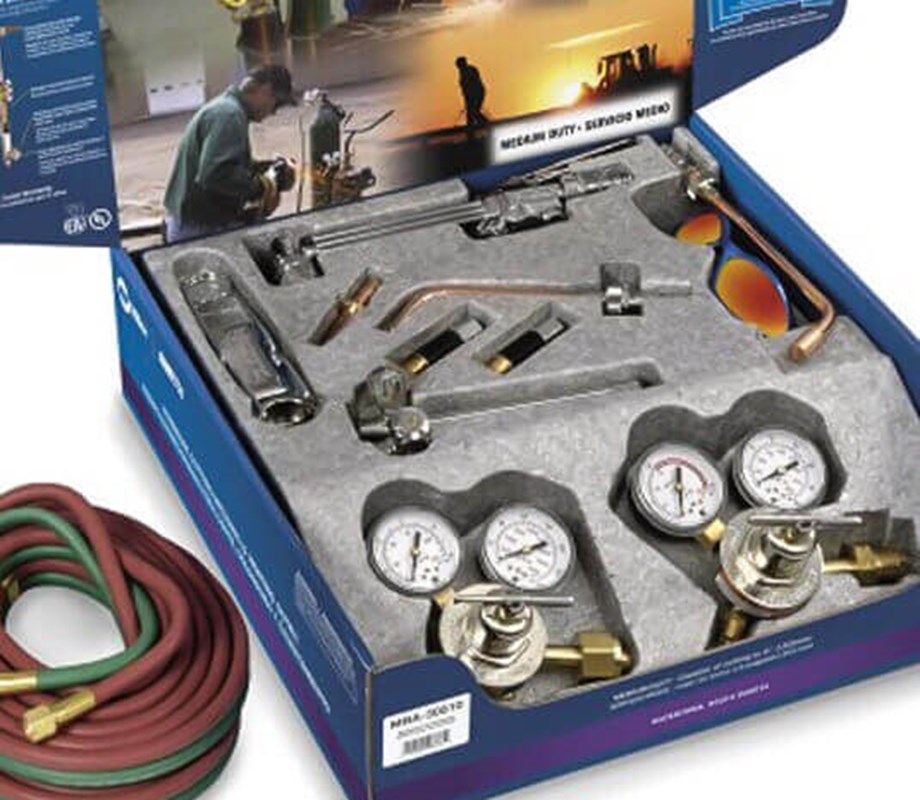

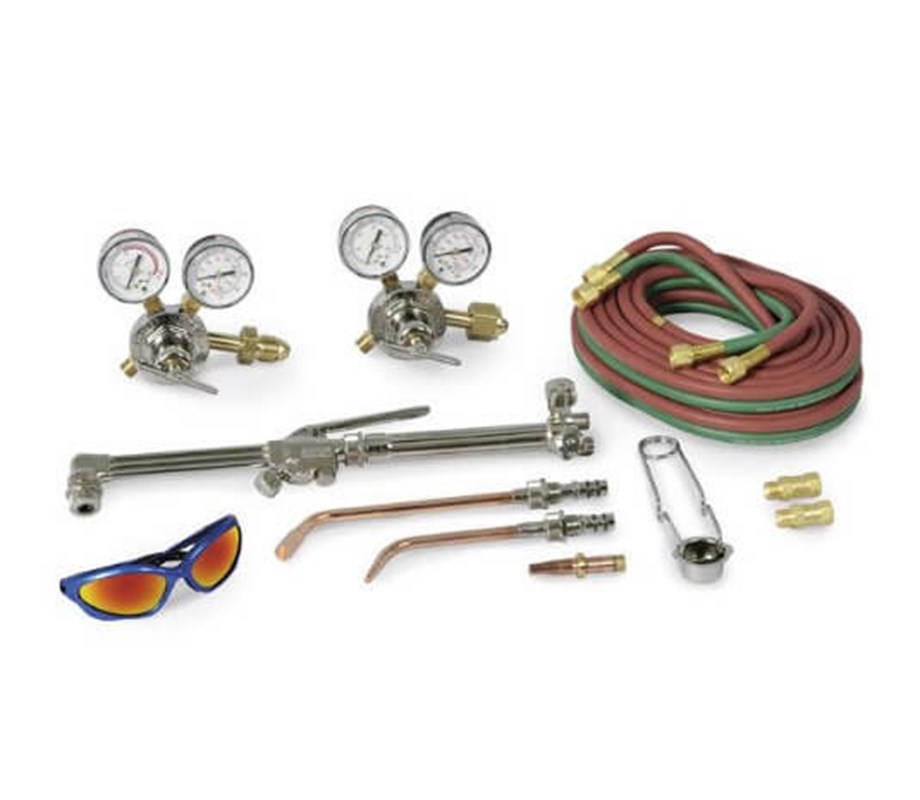

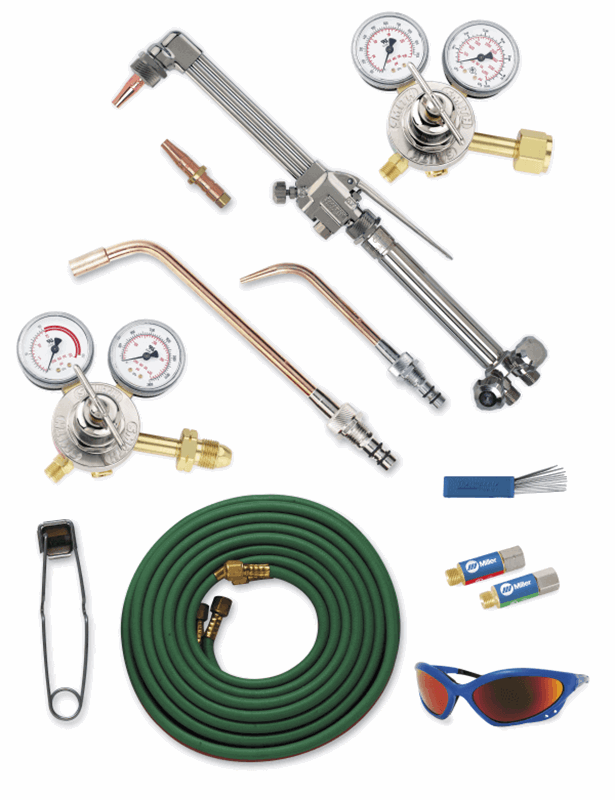

What's Included:

• Torch handle (WH100)
• Cutting attachment (MC509)

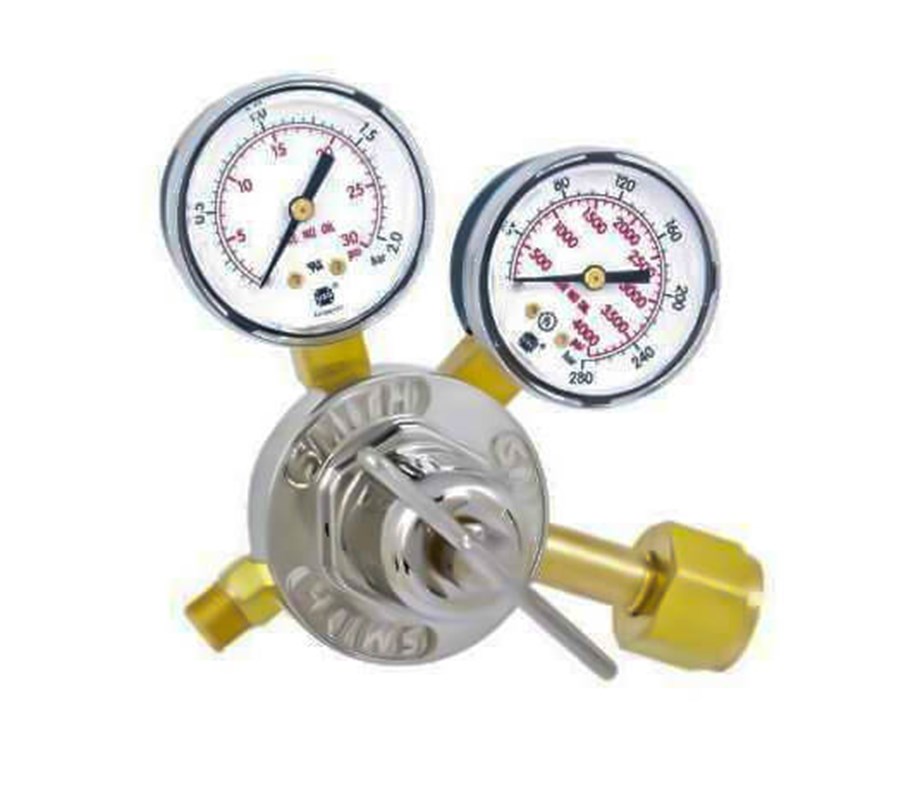

• Oxygen Regulator(30-100-540)
• Acetylene Regulator (30-15-510)
• 2 Cutting Tips (MC12-0 & MC12-1)
• Welding tip (MW205)
• Heating tip (MT603)
• 20-ft 3/16" Twin Hose (RL935)
• Friction Lighter (N113ANB)
• Safety Glasses (78000)
• Tip cleaner (N250)
• Torch Mount Flashback Arrestors (H743)
• Operations Manual

Processes:

• Oxy-Fuel Cutting, Welding & Heating

Industries Interests:

• Aerospace
• Racing / Customizing / Restoring
• Construction
• DIY / Home Hobbyist
• Farm and Ranch
• Heavy Equipment Manufacturing
• Infrastructure
• Manufacturing
• Metal Art / Sculptures
• Railcar
• Shipbuilding
• Boat / Yacht
• High Purity Processing

• Miller - Smith MD Acetylene Outfit MBA-30510 Specs
