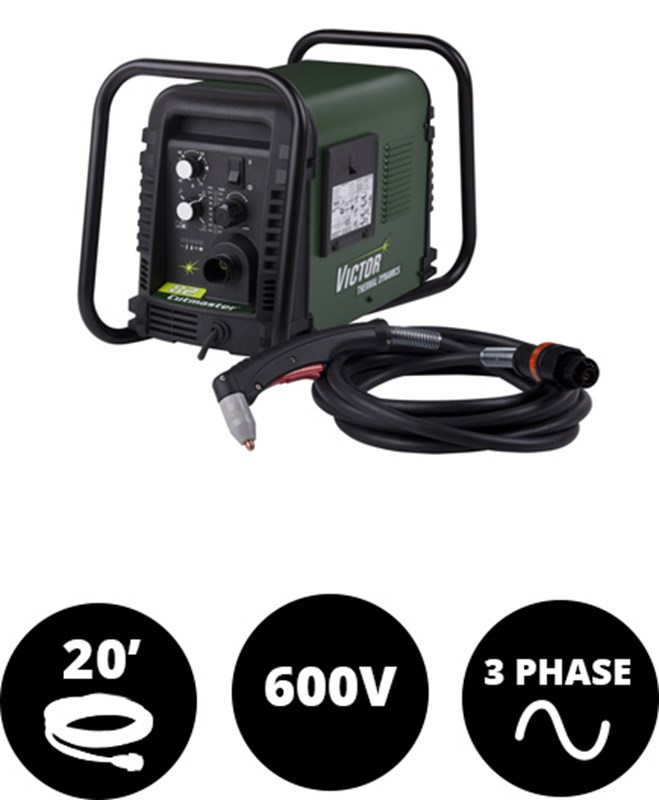

Thermal Dynamics Cutmaster 82 Plasma Cutter w/ 20' 75° Hand Torch (600V 3PH) #1-1130-5

20' Leads (6.1m)
Three Phase
Single Phase
Multi-Voltage
1"+ Cut
4 Year Warranty

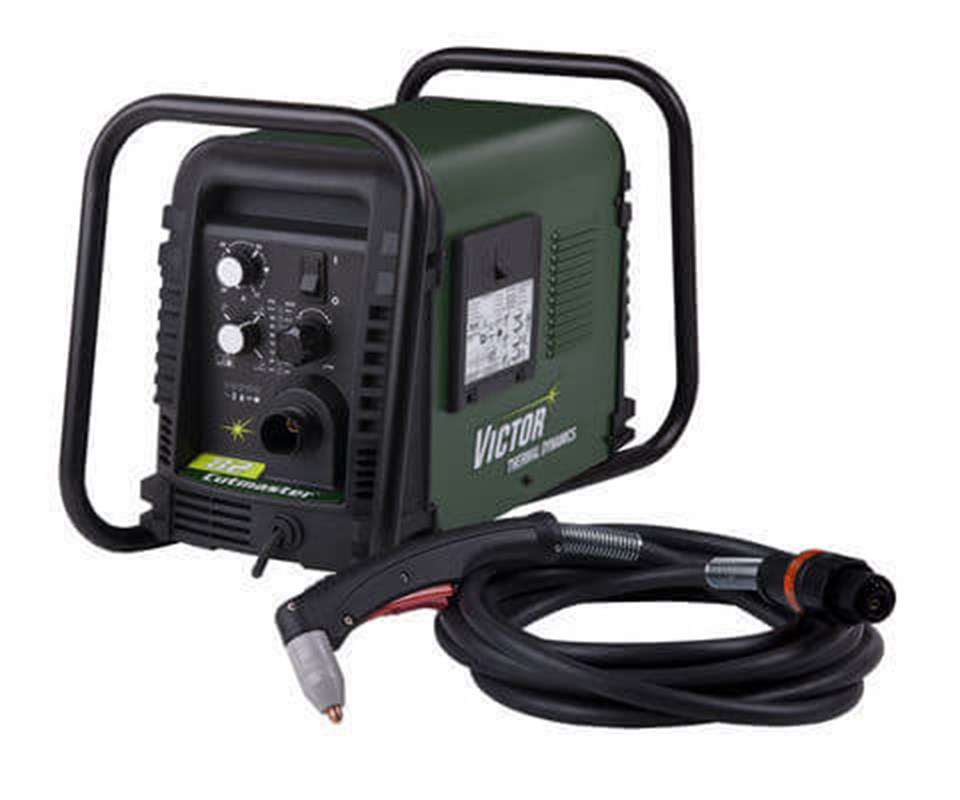

Cutmaster 82 Plasma System #1-1130-5

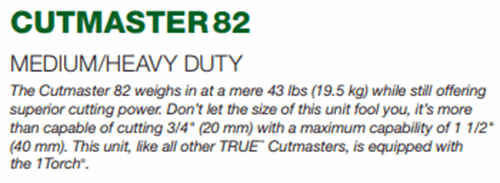

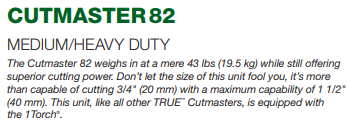

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 82 weighs in at a mere 43 lbs. (19.5 kg) almost 50% less than its leading competitor, while still offering superior cutting power. Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4.

Warranty: 4 Years

Features

TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
Color Coded LED’s indicate pressure status and setup errors
All user controls are conveniently located on the front panel
Lightweight design improves portability (Reduced nearly 50%)
Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Multiple Torch Capability (Hand, Mechanized, Automation)
The Industry’s only 60 Amp Drag Tip
Convenient storage compartment for spare and consumable parts
Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
Power Supply
50ft. (15.2m) Lead
1Torch SL60, 75 deg. Head
10 ft. (3.0m) Input Power Cable 3Ph without plug
Work Cable and Clamp
Spare Parts Kit
Operating Manual

More Features

Front Panel LEDs indicate status conditions for maximum efficiency
Storage compartment for convenient access to spare parts and consumables
Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
True Guard roll bar provides easy transportation and protection for unmatched durability
Multi-voltage allows operation from 208 to 480 Volts in a single power supply
Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability.

Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories

Other Versions:
1-1130-1 230V 20 Ft. Hand Torch
1-1131-1 208/230V 50 Ft. Hand Torch
1-1131-2 460V 50 Ft. Hand Torch

General Specifications

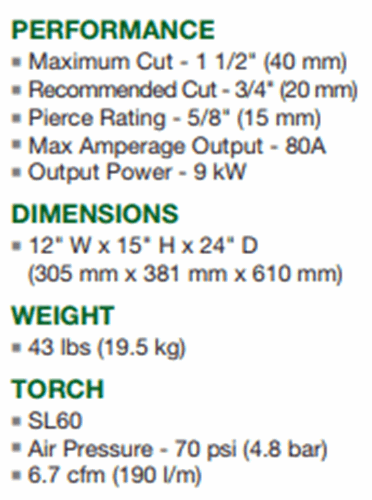

Process(es)	Manual Air Plasma Cutting

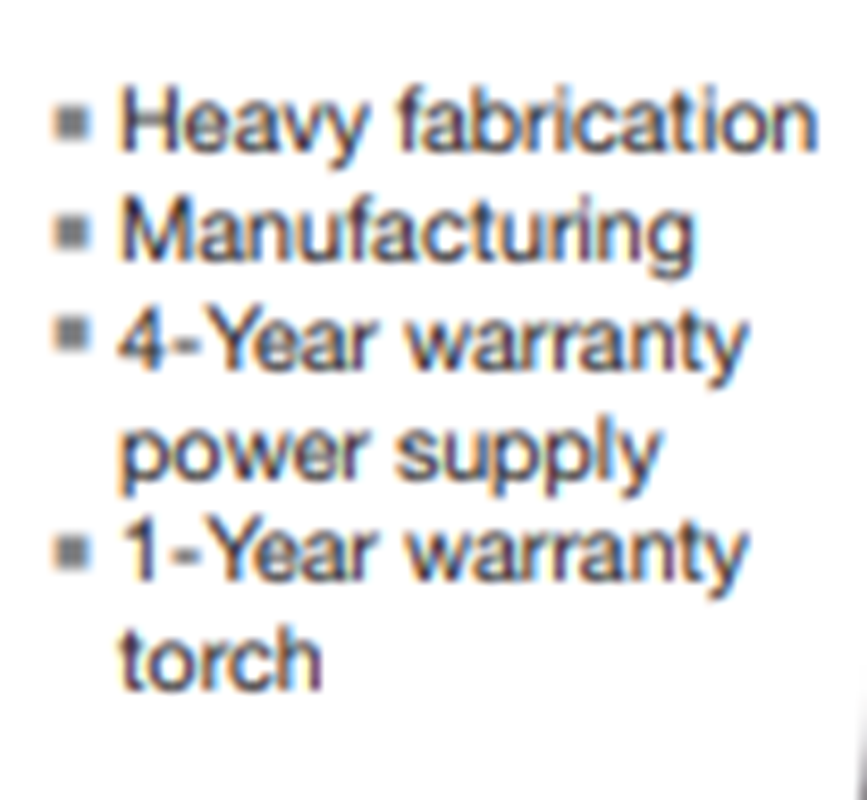

Industrial Applications	Heavy Fabrication Manufacturing Contractors
Maximum Amperage Output	80A
Output Power	9 kW
Recommended Cut	3/4" (20 mm)
Maximum Cut	1 1/2" (40 mm)
Pierce Rating	5/8" (15 mm)
Amperage Range	20-80 Amps

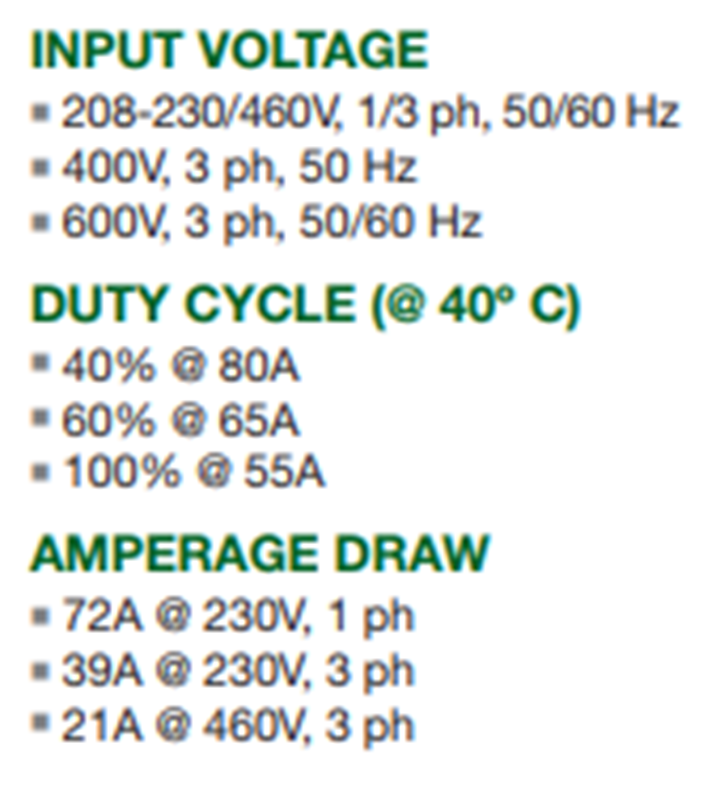

Input Voltage	208-230/460V, 1/3Ph, 50/60 Hz, Configured for 208-230V 1Ph
	400V, 3Ph, 50Hz
	600V, 3Ph, 50/60Hz
Duty Cycle (@ 40 deg C)	40% @ 80A 60% @ 65A 100% @ 55A
Amperage Draw	72A @230V, 1Ph
	39A @230V, 3Ph
	21A @460V, 3Ph
Dimensions: (H x W x D)	15" ( 381 mm) x 12" (305 mm) x 24" (610 mm)
Weight	43 lbs (19.5kg)
Pilot	Start Cartridge
Control	Hand Torch Switch or Hand Pendant Control
Warranty (Parts & Labor)	4 Years
Certifications	IP23S

Torch Specifications
Hand Automated & Mechanized	SL60 SL100
Air Pressure	70 psi (4.8 bar)
Flow	6.7 cfm (190 l/m)
Torch	SL60 with ATC (hand), SL100 (mechanized)

SHIPPING DIMENSIONS
Height:	15.00 Inches
Width:	12.00 Inches
Length:	24.00 Inches
Weight:	43 Lb(s) 0 Oz

Thermal Dynamics Industrial Plasma Cutting Equipment Guide

Consumables

W850-115 Metabo Angle Grinder #601232420

Product Questions and Answers

Q - What is the output power? A - 9 kW

Q - Maximum cut? A - 1.5" is the maximum cut, 3/4" is the recommended cut.

How to clean the torch :

Disconnect primary power.
Always disconnect power to the system before disassembling the torch or torch leads and NEVER touch any internal torch parts while the AC indicator light of the Power Supply is ON.
Inspect inside of torch.
Even if clean air is always used with a torch, the inside will eventually become coated with residue that will affect pilot arc initiation and overall cut quality.
Clean torch internals.
Spray electrical contact cleaner on inside of torch and clean with a cotton swab or soft wet rag. If necessary, remove torch from the leads, pour electrical contact cleaner into the torch and blow it through with compressed air.
Allow torch to dry.
Dry the torch thoroughly before reinstalling.
