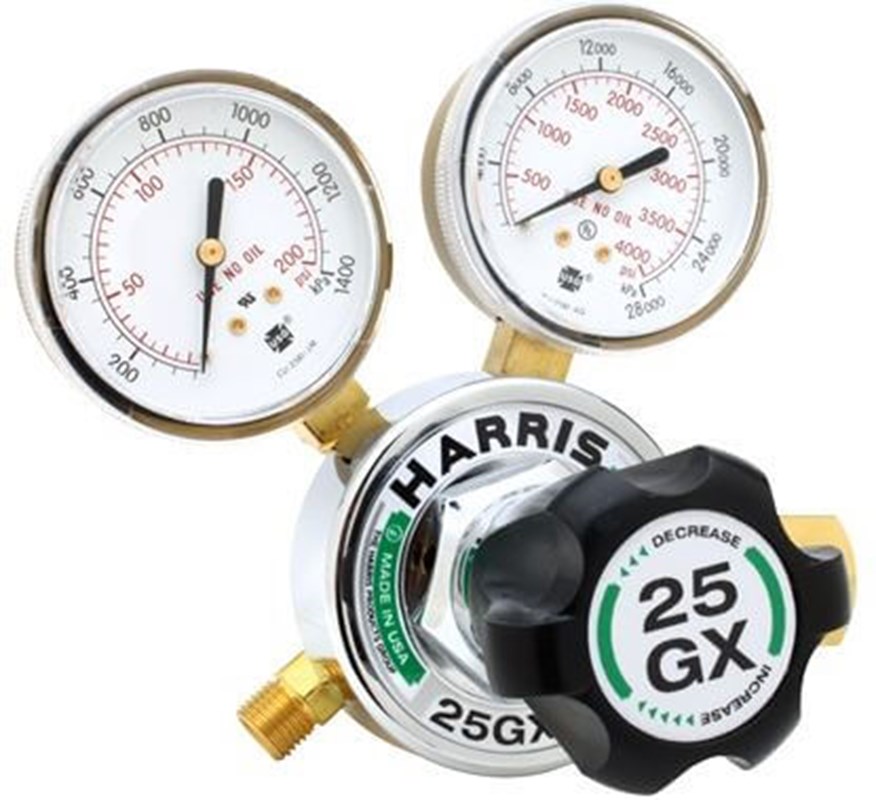

Harris Model 25GX-15-510 (CGA 510) #3000682

The Model 25GX is designed to be the next-generation workhorse of the Harris industrial regulator line. The adjusting mechanism is protected from contaminants by the ergonomic adjusting knob. It also features larger gauges that are easier to read than previous models.

Features:

• Comes with a 7-year warranty
• Made in the USA
• Medium to Heavy Duty Capacity
• 2.5" Steel dual scale gauges for improved readability
• One-piece encapsulated seat design with internal filter and a PTFE Teflon® seat

Shop for more Gas Welding Accessories or Gas Welding & Cutting Equipment online at Welders Supply.

Harris Model 25GX-15-510 (CGA 510) - #3000682

Materials:

• Body - Forged Brass
• Bonnet - Chrome-plated Zamac 3®
• Gauges - 2 1/2", steel case, multi-scale gauges
• Diaphragm - Neoprene, fiber-reinforced
• Nozzle - Brass
• Seats - PTFE Teflon
• Filters - Nickel-plated Sintered Bronze 10 micron
• Seat Return Spring - PH 17-7 Stainless Steel
• Adjusting Knob - ABS, UB resistant, composite knob
• Outlet - Brass

Cylinder Gas:

• Acetylene

Inlet Connection:

• CGA510

Outlet Connection:

• 9/16-18 RH

Outlet Pressure:

• 0 - 15 PSIG

Gauge Size:

• 2 1/2"

Inlet Pressure:

• 500 PSIG
