REPLACED BY #087189 Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25
Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25
Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25
Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25
Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25

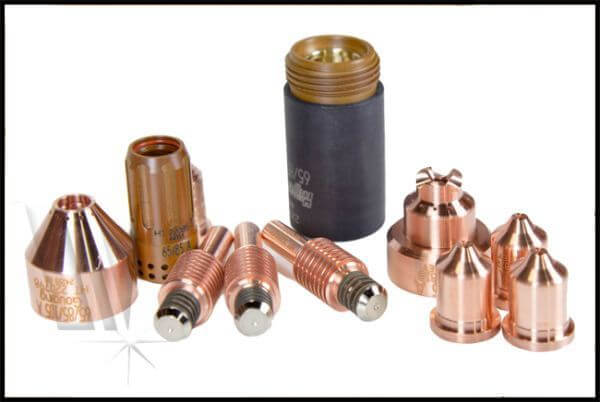

Hypertherm Powermax 85 Plasma Cutter Accessories
Powermax85 #087115 (200-600 V CSA) with 180° Machine Torch, 25

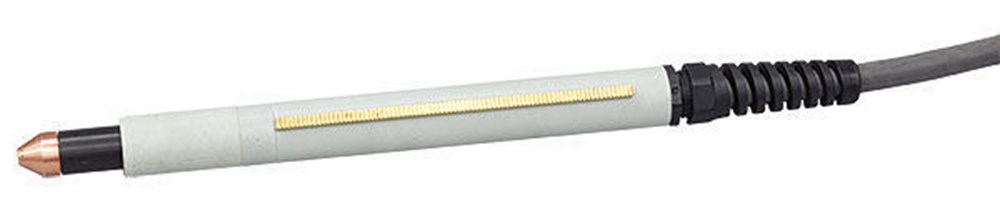

Hypertherm Powermax 85 180 Degree Torch

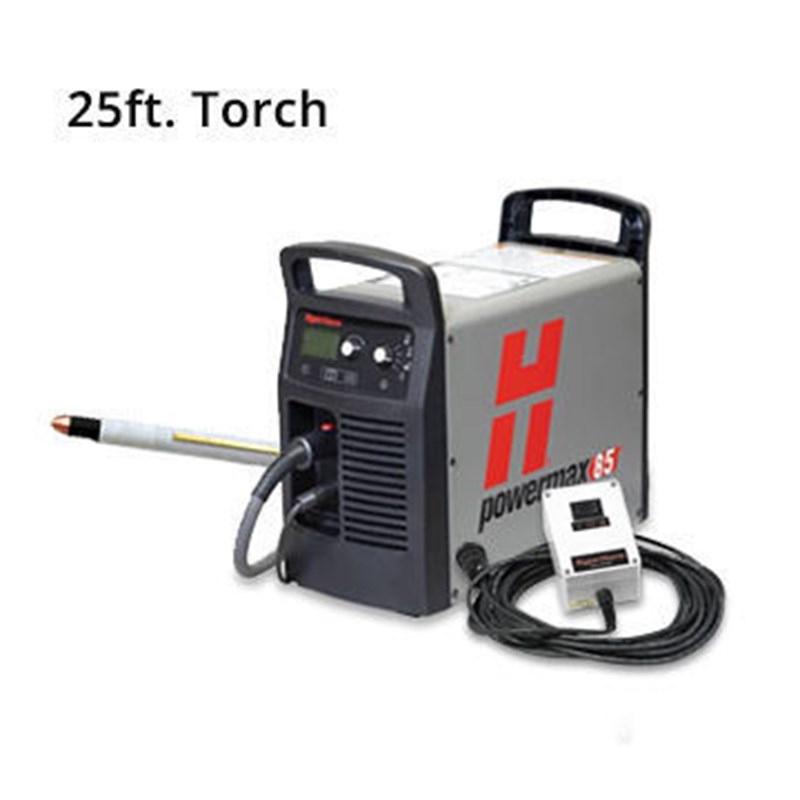

Powermax85 (200-600 V CSA) with 180° Machine Torch, 25' Leads, Remote Pendant, CPC Port & Voltage Divider 087115

Part Number: 087115
This Item Has Been Discontinued and has been replaced by Powermax85 SYNC Plasma Cutter w/ CPC Port, 25' Machine Torch (200-600V 1/3PH) #087189 - Level up today!

Cut capacity:

1 - 2" Capacity

1 - 2" Capacity

Plasma Torch Type:

Mechanized

Mechanized

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • High cut capacity plasma cutter1" Cut Capacity
  • Single or three phase power inputSingle/Three Phase
  • 25ft torch leads25' Lead
  • Mechanized plasma torch included180° Machine Torch
  • CPC port for CNC plasma cuttingCPC Port
  • Hypertherm 3 year warranty3-Year Power Warranty
  • Student rebate availableFirst Time Student Rebate

Powermax 85 (200-600 V CSA) with 180° Machine Torch, 25' Lead, Remote Pendant, CPC Port & Voltage Divider #087115

Hypertherm Powermax 85 #087115 product overview video

Upgrade your cutting capabilities with the highly acclaimed Powermax 85 plasma cutting system. With an impressive maximum cut capacity of 1" (25 mm) material, this system offers enhanced power compared to the Powermax 65, thanks to its maximum output current of 85 amps. Equipped with a CPC Port and Voltage Divider, the power supply provides excellent functionality and versatility.

Included in this system is the reliable 180° Full-Length Machine Torch from Duramax. Designed with durability in mind, it ensures long-lasting performance for your cutting needs. The Spring Start™ technology in the electrode eliminates moving parts in the torch for reliable ignition. Not only does this system provide exceptional durability, but it also reduces operating costs through its long consumable life and electrode end-of-life detection feature in the power supply.

A Mechanized Machine for Maximum Power and High-Performance Cutting

Powermax 85 Machine Torch Features:

  • Cut speeds 2 1/2 times greater than oxyfuel on 1/2' mild steel
  • Conical Flow nozzle reduces dross and increases arc energy density for better quality cutting
  • Low maintenance for maximum uptime

HYPERTHERM Powermax 85 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 85 handheld consumable kit or Powermax 85 mechanized consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Shop for Hypertherm products, plasma cutting accessories, and safety apparel at Welders Supply.

Other versions of the Powermax 85:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters

Torches compatible with the Powermax 85:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Plasma Cutting Torches

Capacity Thickness Cut speed
Cutting
Recommended 25 mm (1") 500 mm/min (20 ipm)
  32 mm (1-1/4") 250 mm/min (10 ipm)
Severance (hand cutting) 38 mm (1-1/2") 125 mm/min (5 ipm)
Pierce* 20 mm (3/4")
 * Pierce rating for handheld use or with automatic torch height control
Capacity Metal removal rate Groove profile
Gouging
Typical gouge 8,8 kg/hr
(19.5 lbs/hr)		 5,8 mm D x 7,1 mm W
(0.23" D x 0.28" W)




Cuttable Metals

Aluminum

Mild Steel

Stainless Steel
Power Supply Type Inverter-IGBT

Hypertherm Powermax 85 Error Codes and Troubleshooting

Hypertherm Powermax 65 Error Codes Hypertherm Powermax 85 Error Codes

Additional Powertherm 85 errors and fault codes

Cut Sheets for the Powermax85

SHIPPING DIMENSIONS
Height: 17.90 Inches
Width: 9.20 Inches
Length: 19.70 Inches
Weight: 71 Lb(s) 0 Oz

Product Questions and Answers

Q - Will exposure to dust be a problem for this machine? A - In dusty conditions, we recommend the Air filtration kit, which has a 1-micron filter. We also recommend a dust cover when your machine isn't in use. /P/891/HyperthermAirFiltrationK
Q - How does Hypertherm's trade-in program work? A - You need to fill out a claim form. the form has info on the credit amount you'll receive, which varies depending on which system or torch you buy.
Q - What is the CPC port? A - The CPC port is a connection for a machine torch to be used with mechanized tables and systems, such as a CNC table. This plasma cutter comes with both the CPC port and the machine torch.
Q - Do I need to adjust the air pressure? A - The Smart SenseTM technology does the adjusting for you. No need to change it.

How to install machine interface cable:

  1. Turn OFF.

    Switch power to OFF and disconnect power supply.

  2. Remove cover.

    Remove the machine interface receptacle cover.

  3. Connect cable.

    Connect the Hypertherm machine interface cable.

  4. Plug in cable.

    Plug cable into pin connector on controller or CNC.

  5. Secure with screws.

    Use assembly kit to secure cable.

Have a question about this product? Submit your question using the form below
