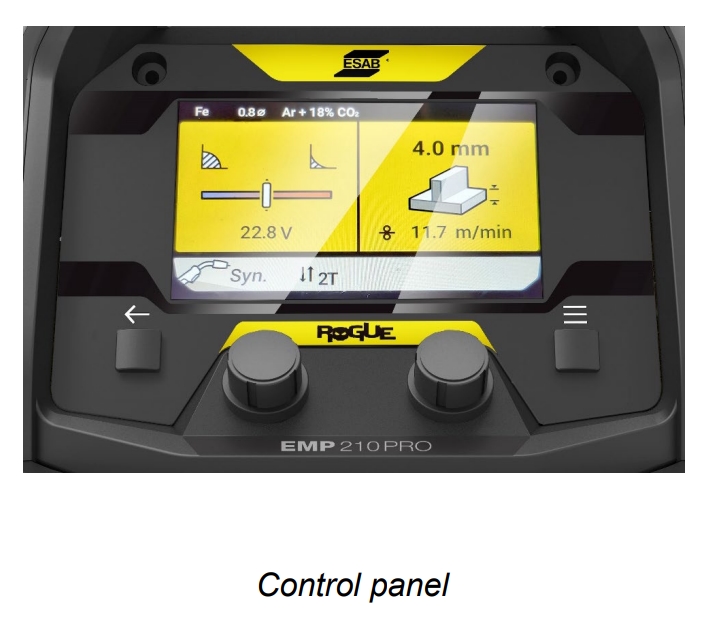

ESAB® Rogue EMP 210 PRO #0700301085 - Control Panel Diagram

ESAB® Rogue EMP 210 PRO Multi-Process Welder, Dual Voltage (120/230V) #0700301085

Name: Rogue EMP 210 PRO Multi-Process Welder #0700301085
Brand: ESAB
SKU: ESA0700301085

Part Number: 0700301085

$1,449.00 + Free Shipping $1,799.99*

SAVE $350.99

Qualifies for IRS 179 Sale

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Accessories
Consumables
FAQS

Light Fabrication & Repair
Multi-Process MIG/TIG/Stick
Lightweight & Portable
120/230V Input
Single Phase Input
210 A / 24.5 V Max Output
3-Year ESAB Warranty

ESAB® Rogue EMP 210 PRO Versatile Multi-Process Welder for Light Fabrication and Maintenance (120/230V) #0700301085

The ESAB® Rogue EMP 210 PRO is a robust, inverter-based multi-process welding system designed to meet the demands of light fabrication, repair, and maintenance projects. Weighing only 36.8 lbs (16.7 kg), it offers dual voltage input (120/230V) and delivers up to 210 amps of power, enabling efficient welding across various materials and thicknesses.

Download literature of this machine:

2024 Spec Sheet - Rogue EMP 210 PRO Instruction Manual - Rogue EMP 210 PRO

Highlights

True Multi-Process Capability: Supports Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and Stick welding, including 6010 electrodes.
Intuitive 5-Inch TFT Screen: Provides clear views with direct interaction for easy parameter adjustments.
Synergic Weld Programs: Offers a full range of welding parameters (0.5 – 10.0 mm) with single-knob control.
Power Factor Correction (PFC): Ensures a stable arc, resistant to power fluctuations, even when using long extension cables up to 100 meters.
Rugged Industrial Design: Features multiple lift points and cable management for enhanced portability and durability.
Arc Dynamics Control: Allows fine-tuning of arc characteristics for a crisp/stiff arc on carbon steel or a smooth/soft arc on stainless steel.
Memory Function: Save and recall up to 10 welding jobs for increased efficiency.
Spool Gun Ready: Automatically configures setup when a spool gun is connected.
IP23S Rated: Suitable for indoor and outdoor use.

Processes

Synergic MIG
Manual MIG
MIG Brazing
Flux-Cored
Lift TIG
Stick (MMA), including 6010 electrodes

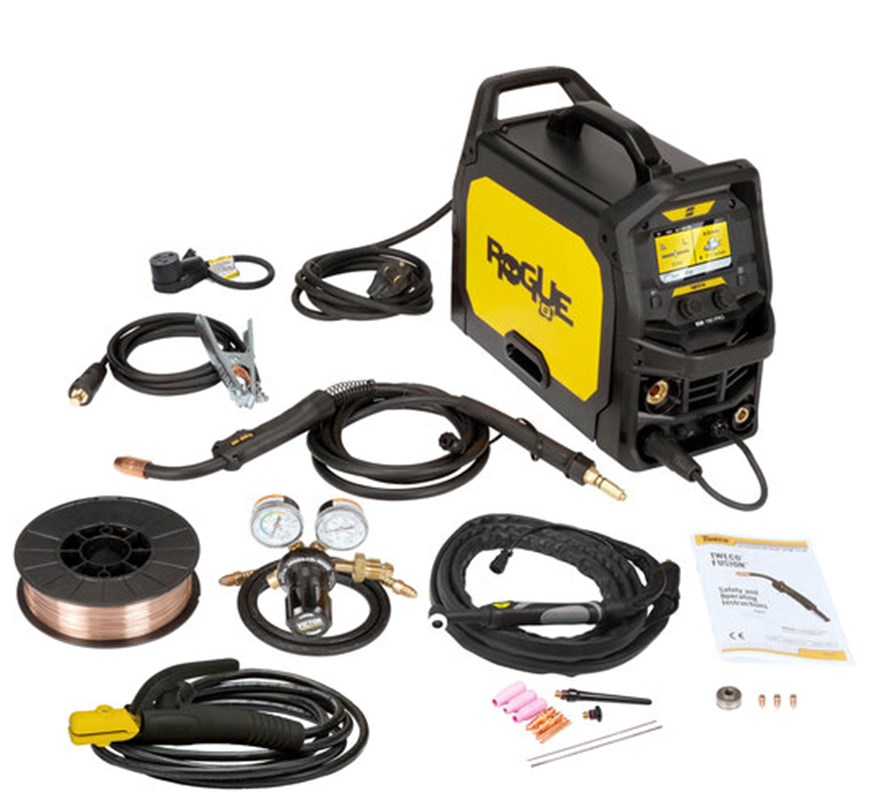

What's Included

Rogue EMP 210 PRO welding system
10 ft. Tweco® Fusion® 180 MIG gun with Velocity® consumables
Tweco® 17V TIG torch with 13 ft. leads, remote amperage control, and 50mm Dinse connector
TIG accessory kit
Victor® Argon/CO₂ regulator with hose
Tweco® electrode holder with heavy-duty 50 mm Dinse connection
Tweco® ground clamp with heavy-duty 50 mm Dinse connection
120V/230V adapter plug
Sample spool of ESAB OK AristoRod 12.50 mild steel MIG wire (2 lbs)
Drive rolls for .024/.030 and .030/.035 wire

Industries

Automotive
Civil Construction
Repair and Maintenance
Light Fabrication
HVAC
Agricultural Equipment

Benefits of the ESAB® Rogue EMP 210 PRO

Energy Save Mode: Reduces power consumption after 2 minutes of inactivity.
Multi-Language Display: Configure the interface in one of 29 languages.
Generator Compatible: Operates with 10 kVA generators for fieldwork flexibility.
Extended Cable Use: Maintains performance with extension cables up to 328 ft (100 m).

Fast, Free Shipping & Easy Returns

Enjoy fast, free shipping on orders over $300 and hassle-free returns within 14 days for new, unopened merchandise. For assistance, contact Welders Supply customer support at 1-844-682-0205.

Explore our full range of multi-process welders from ESAB and other top brands to find the perfect fit for your welding needs.

Specifications - ESAB® Rogue EMP 210 PRO
Input Voltage	230 VAC ±10 %, 1 Φ, 50/60 Hz
MIG (GMAW) Welding Output	210 A24.5 V @ 30 % Duty Cycle 136 A20.8 V @ 60 % Duty Cycle 105 A19.2 V @ 100 % Duty Cycle
MMA (SMAW) Welding Output	180 A27.2 V @ 30 % Duty Cycle 116 A24.7 V @ 60 % Duty Cycle 90 A23.6 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output	210 A18.0 V @ 30 % Duty Cycle 136 A15.4 V @ 60 % Duty Cycle 105 A14.2 V @ 100 % Duty Cycle
Current Range	30-210 A
12-26 V
Wire Feeder Specifications	2.0-16.5 m/min
Open Circuit Voltage	78 VDC
Wire Diameter Aluminium Stainless Steel Cored Wire Mild Steel	0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm
Max Spool Diameter	100 & 200 mm
Power Factor at Maximum Current	0.99
Efficiency at Maximum Current	>82 %
Energy Save Mode	50 W
Operating Temp	-10 - +40 °C
Enclosure Class	IP23S
Certification Mark	CE
Setting Range	15.5-24.5 V (30-210 A) 20.4-27.2 V (10-180 A) 10.4-18.4 V (10-210 A)
