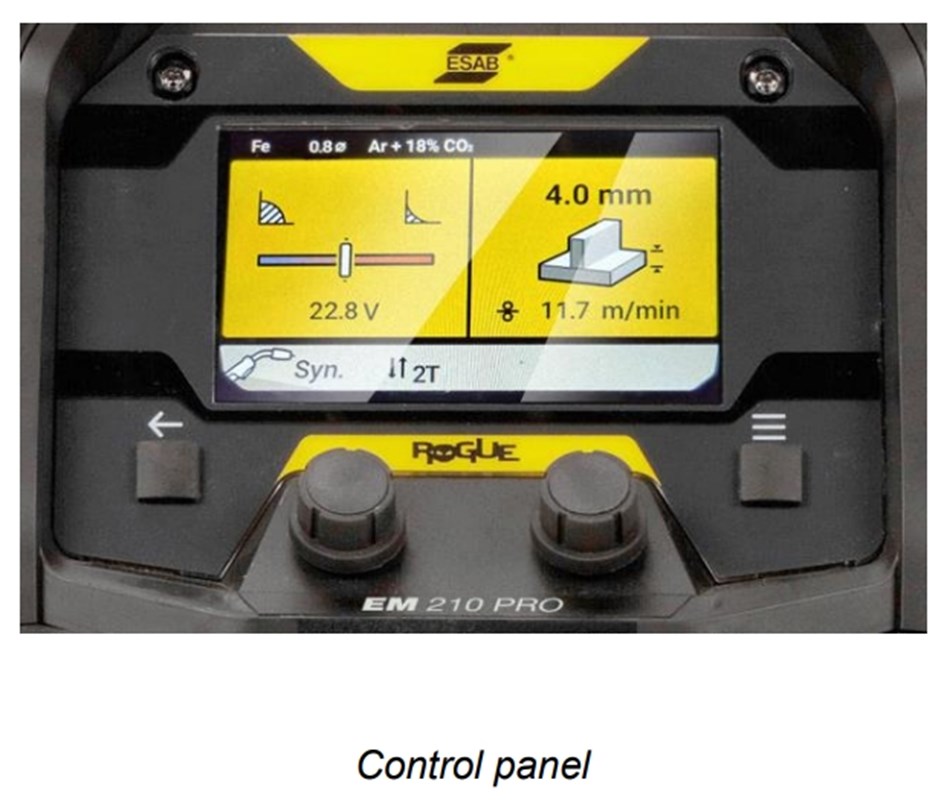

ESAB Rogue EM 210 PRO Control Panel Diagram

ESAB® Rogue EM 210 PRO Portable MIG Welder, Dual Voltage (120/230V) #0700301084

Name: Rogue EM 210 PRO Portable MIG Welder, Dual Voltage (120/230V) #0700301084
Brand: ESAB
SKU: ESA0700301084

Part Number: 0700301084

$1,099.99 + Free Shipping $1,349.00*

SAVE $249.01

Qualifies for IRS 179 Sale

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Consumables
FAQS

Light Fabrication & Repair
MIG/MAG Welding
Lightweight & Portable
120/230V Input
Single Phase Input
210 A / 24.5 V Max Output
3-Year ESAB Warranty

ESAB® Rogue EM 210 PRO Lightweight MIG Welder for Light Fabrication, Repair & Maintenance (120/230V) #0700301084

The ESAB® Rogue EM 210 PRO is a versatile, portable MIG welding system designed for light fabrication, repair, and maintenance tasks. Weighing just 37.3 lbs (16.9 kg), it offers dual voltage input (120/230V) and delivers up to 210 amps of power, enabling welding of materials up to 3/8" thick in a single pass.

Download literature of this machine:

2024 Spec Sheet - Rogue EM 210 PRO Instruction Manual - Rogue EM 210 PRO

Highlights

Dual Voltage Input: Operates on 120V or 230V power sources for flexibility.
Lightweight Design: Weighs only 37.3 lbs for easy portability.
High Output: Delivers up to 210A for welding materials up to 3/8" thick.
Intuitive Interface: Features a 5-inch TFT screen for clear, direct interaction.
Synergic Weld Programs: Offers single-knob control for a full range of welding parameters.
Power Factor Correction: Ensures a stable arc, resistant to power fluctuations.
Rugged Design: Built to withstand harsh environments with multiple lift points and cable management.
Arc Dynamics Control: Fine-tune arc characteristics for various materials.
Memory Function: Save and recall up to 10 welding jobs for efficiency.
Spool Gun Ready: Automatically configures setup when a spool gun is connected.

Processes

Synergic MIG
Manual MIG
MIG Brazing
Flux-Cored

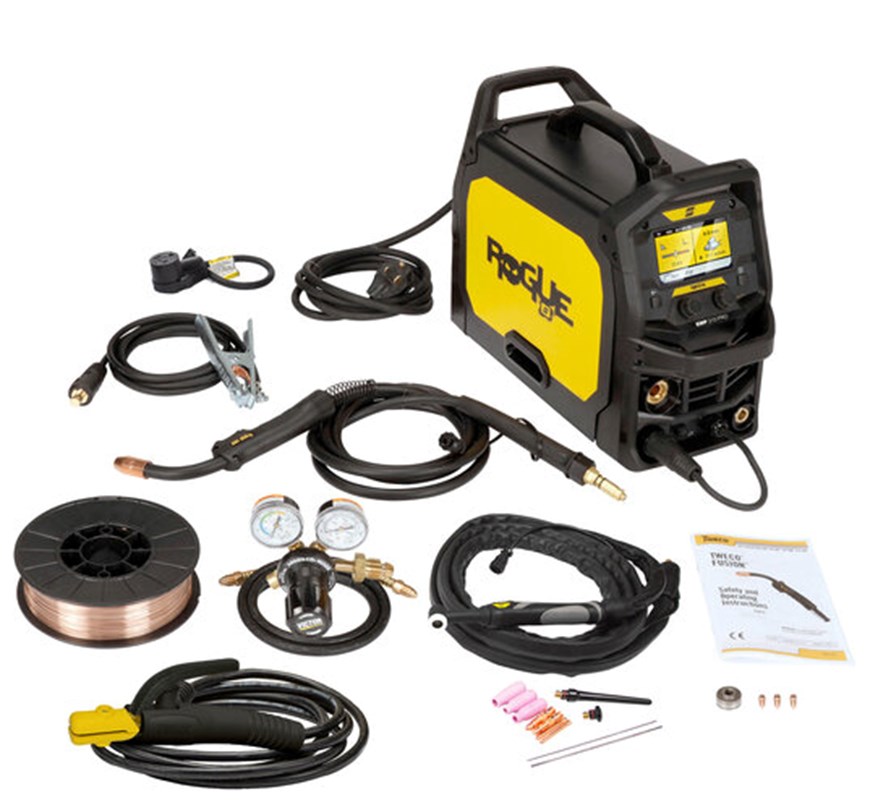

What's Included

Rogue EM 210 PRO MIG welder
10 ft. Tweco® Fusion® 180 MIG gun with Velocity® consumables
Victor® Argon/CO₂ regulator with hose
Tweco® ground clamp with heavy-duty 50 mm Dinse connection
50A-15A (120/230V) power adapter
Sample spool of ESAB OK AristoRod 12.50 mild steel MIG wire (2 lbs)
Drive rolls for .024/.030 and .030/.035 wire

Industries

Automotive
Civil Construction
Repair and Maintenance
Hobbyist
Light Fabrication
Automotive Bodies
Agricultural Equipment

Benefits of the ESAB® Rogue EM 210 PRO

Energy Save Mode: Reduces power consumption after 2 minutes of inactivity.
IP23S Rating: Suitable for indoor and outdoor use.
Multi-Language Display: Configure the interface in one of 29 languages.
Generator Compatible: Operates with 11 kVA (10 kW) generators for fieldwork.
Extended Cable Use: Maintains performance with extension cables up to 328 ft (100 m).

Fast, Free Shipping & Easy Returns

Enjoy fast, free shipping on orders over $300 and hassle-free 14-day return period for new, unopened products. For assistance, contact Welders Supply customer support at 1-844-682-0205.

Explore our full range of MIG Welders from ESAB and other top brands to find the perfect fit for your welding needs.

Specifications
Input Voltage	230 VAC ±10 %, 1 Φ, 50/60 Hz 120 V ±10% %, 1Φ, 50/60 Hz
GMAW Welding Output	100 A19.0 V (120 V) @ 25 % Duty Cycle 82 A18.1 V (120 V) @ 60 % Duty Cycle 63 A17.2 V (120 V) @ 100 % Duty Cycle 210 A24.5 V (230 V) @ 25 % Duty Cycle 136 A20.8 V (230 V) @ 60 % Duty Cycle 105 A19.2 V (230 V) @ 100 % Duty Cycle
Current Range	10-210 A
10.4-27.2 V
Wire Feeder Specifications	2.0-16.5 m/min ( 75-650 in./min )
Open Circuit Voltage	78 VDC
Wire Diameter Aluminum Mild Steel Flux Cored Stainless Steel	0.8-1.2 mm ( 0.030-0.045 in. ) 0.6-1.0 mm ( 0.023-0.035 in. ) 0.8-1.2 mm ( 0.030-0.045 in. ) 0.8-1.0 mm ( 0.030-0.035 in. )
Max Spool Diameter	100 & 200 mm ( 4 & 8 in. )
Power Factor at Maximum Current	0.99
Efficiency at Maximum Current	80 %
Energy Save Mode	<50 W
Operating Temp	-10 - +40 °C
MCableX	14/2, 3 m (10 ft)
Rated kVA	6.2 kVA (230 V) 2.4 kVA (120 V)
Recommended Generator	6.0 kW (120 V) 10 kW (230 V)
Enclosure Class	IP23S
Certification Mark	cETLus
