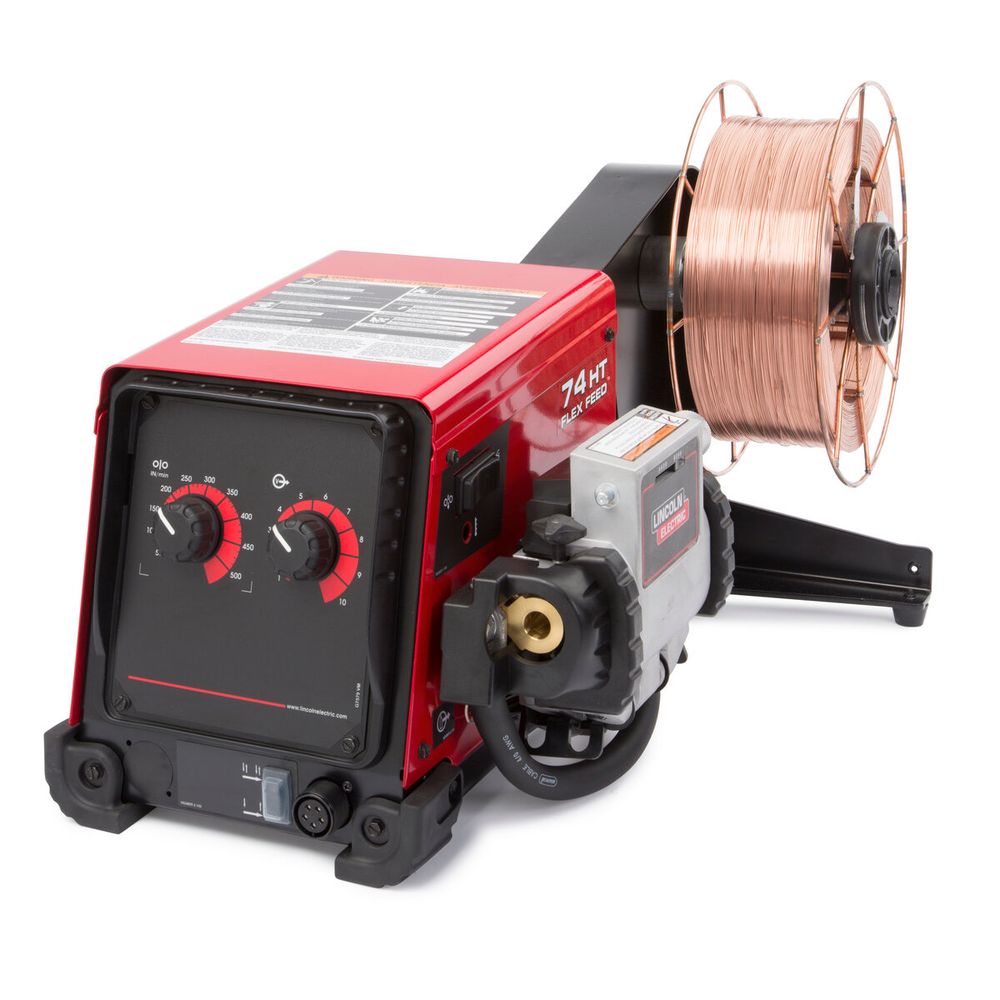

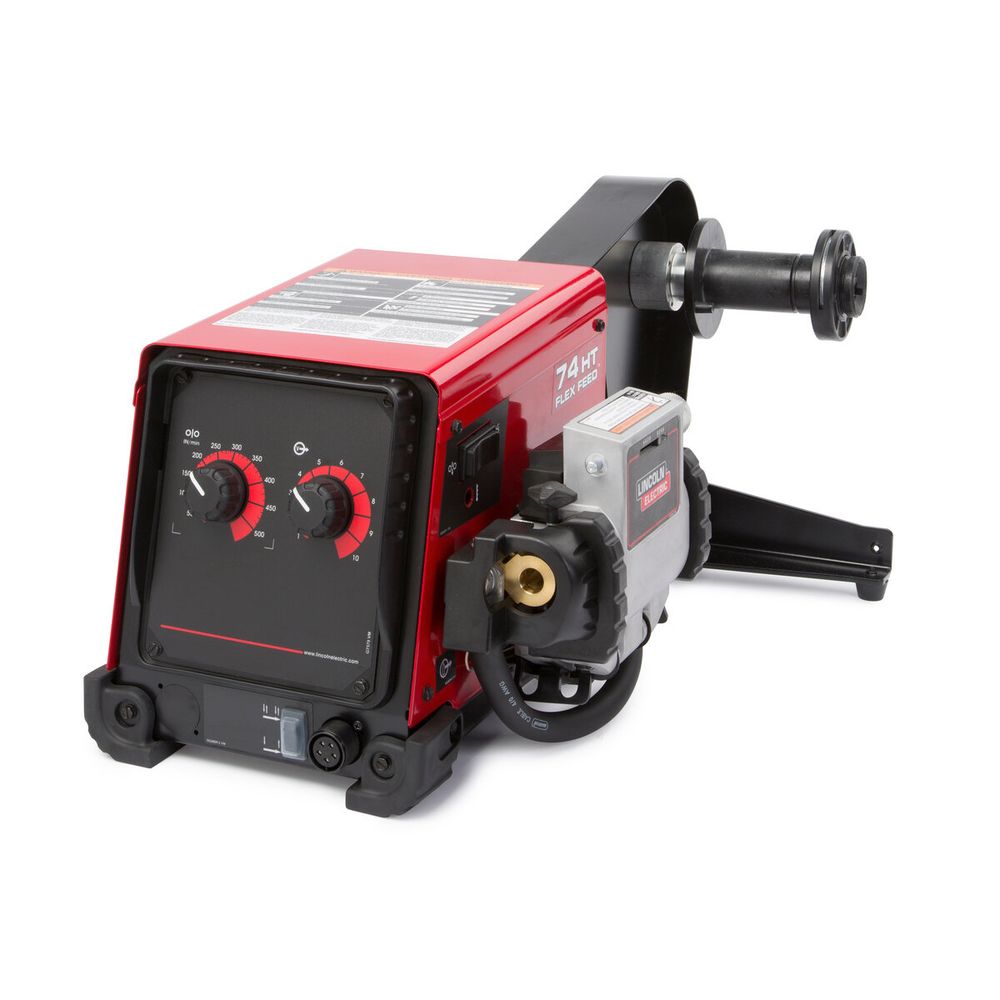

Lincoln Electric Flex Feed® 74 HT Wire Feeder - Simple U/I, Std. Dty. Reel #K3883-5
Part Number: K3883-5
UPC: 015082565767
$3,873.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Electric Flex Feed 74 HT Heavy Duty Wire Feeder #K3883-5
The Flex Feed 74 HT is a robust semiautomatic wire feeder designed for heavy-duty applications in general and structural fabrication.
Highlights
- Simple 4-drive roll design for reliable feeding
- Basic and digital user interface for streamlined operator setup
- Strong drive motor supports large-diameter wire applications
- Advanced MaxTrac® 4-roll wire drive for consistent performance
Industries
- Structural Fabrication
- Manufacturing
- Heavy Industry
What’s Included
- Control Cable Extension - Male 14 pin to Female 14 pin - 10 ft (3 m) | K1797-10
- Inlet Bushing, Quick Connect Style | K3929-1
- Wire Reel Stand - Standard Duty | K3342-1
Benefits of the Flex Feed® 74 HT
- User-Friendly Interface: Simplifies the setup process, allowing operators to quickly adjust settings.
- Durable Construction: Enhanced isolation and environmental protection for reliable operation in challenging conditions.
- Modular Design: Customizable configurations to meet specific application needs.
- Consistent Performance: Robust connection points and strong drive motor ensure reliable wire feeding in demanding applications.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm) |
| Net Weight | 47 lbs (21.3 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | Analog |
| UI type | Simple |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 45 Lb(s) 0 Oz |
