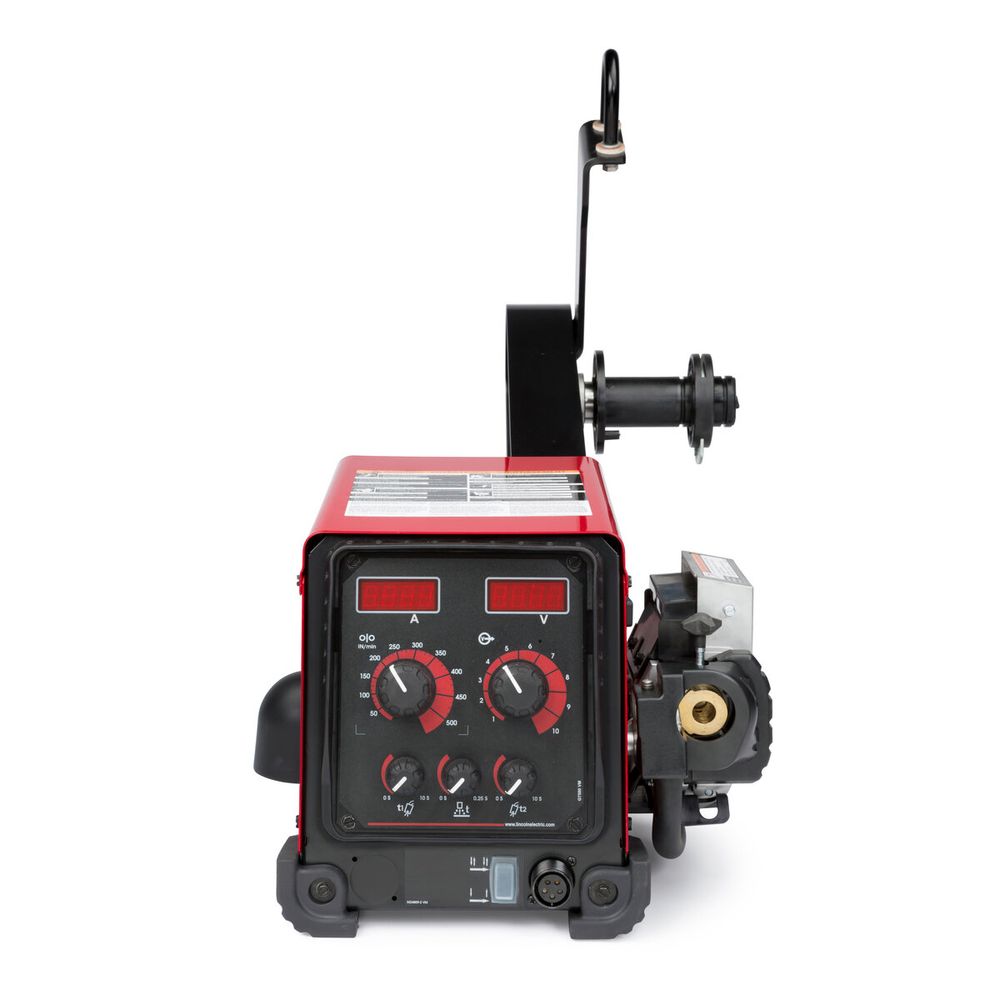

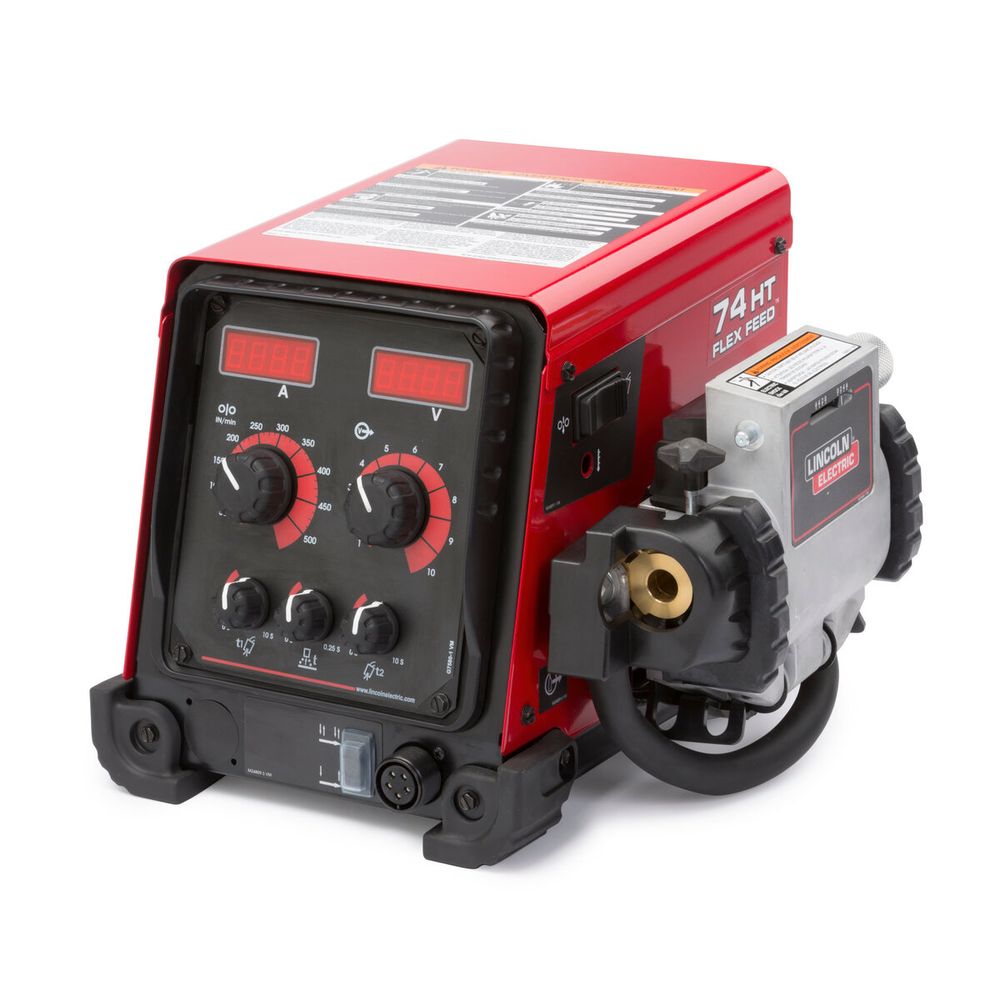

Lincoln Electric Flex Feed® 74 HT Bench Wire Feeder w/ Digital U/I & No Reel #K3883-2
Part Number: K3883-2
UPC: 015082565736
$4,220.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 74 Bench Wire Feeder, High Torque w/ Digital User Interface & No Reel #K3883-2
The Flex Feed® 74 HT (High Torque) is a heavy-duty, yet lightweight at 36 pounds, industrial semiautomatic wire feeder designed to be customized for each application. A digital user interface streamlines operator setup and modularity allows for customizable configurations. The machine has a wire feed speed range of 50-700 IPM and handles wire diameters up to 3/32 in./2.4 mm (solid) or .120 in./3 mm (cored).
Highlights
- Simple design
- Strong drive motor for large-diameter wire applications
- Digital meters show actual current and voltage during welding
- Advanced MaxTrac® 4-roll wire drive design
- Modularity allows for customizable configurations
Industries
- Heavy Fabrication
- Structural Fabrication
What’s Included
- Inlet Bushing, Quick Connect Style
- Flex Feed® 74 HT
- Digital User Interface
Benefits of the Flex Feed® 74 HT Bench Wire Feeder
- Digital user interface streamlines operator setup
- Improved isolation & protection
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm) |
| Net Weight | 36 lbs (16.33 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | Analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
| Input Power | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 16.50 Inches |
| Width: | 21.00 Inches |
| Length: | 23.00 Inches |
| Weight: | 44 Lb(s) 0 Oz |
