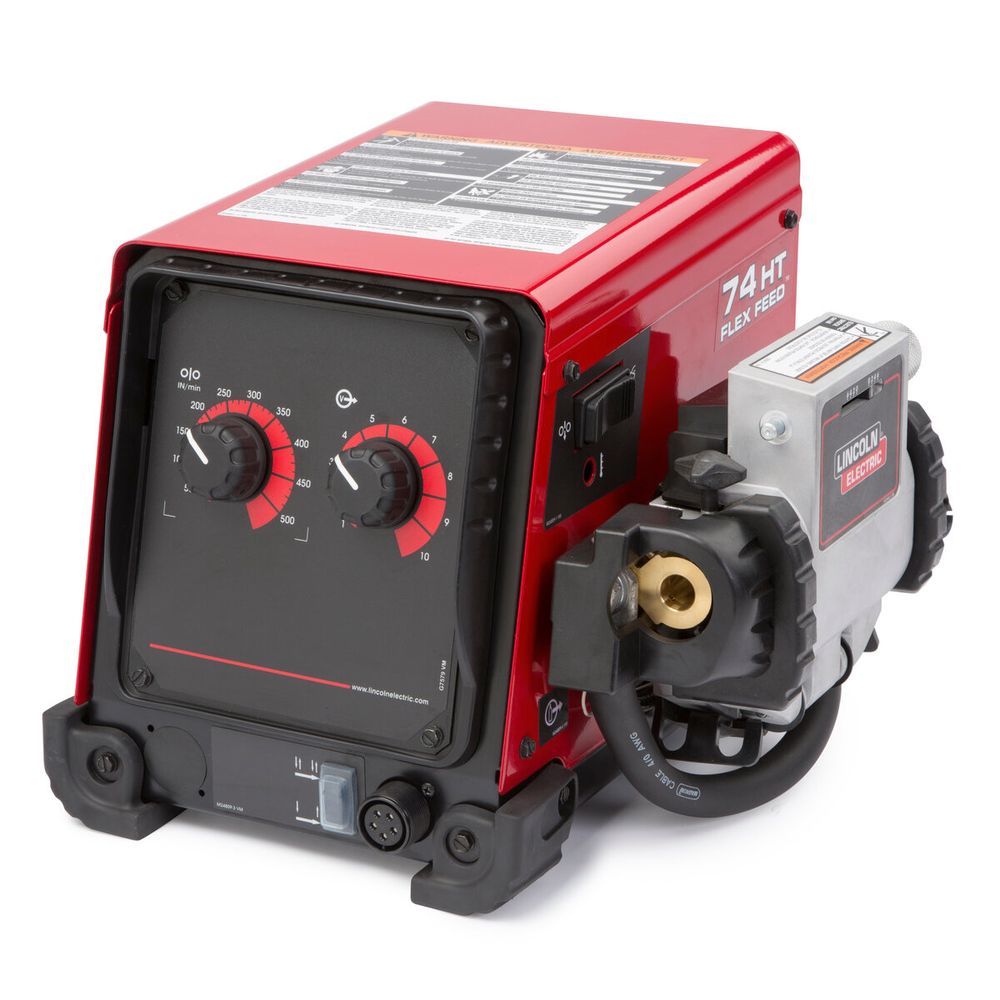

Lincoln Electric Flex Feed® 74 HT Wire Feeder - Simple U/I, No Reel #K3883-1
Part Number: K3883-1
UPC: 015082565729
$3,538.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 74 HT Heavy-Duty Semiautomatic Wire Feeder #K3883-1
The Flex Feed® 74 HT is a robust industrial wire feeder designed for general and structural fabrication and is customizable for various applications.
Highlights
- Basic user interface for straightforward operator setup
- Strong drive motor for handling large-diameter wires
- Improved isolation and environmental protection for reliable operation
- Advanced MaxTrac® 4-roll wire drive design for consistent feeding
- Modular design for flexible configurations
Industries
- Construction
- Manufacturing
- Metal Fabrication
- Heavy Industry
What’s Included
- Flex Feed® 74 HT Wire Feeder
- Inlet bushing, quick connect style | K3929-1
- Documentation for setup and operation
Benefits of the Flex Feed® 74 HT
- Enhanced connection points for reliable performance in tough conditions
- Easy adaptability for different welding processes and applications
- Strong performance with minimal downtime due to robust design
- User-friendly setup for quick deployment in various settings
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm) |
| Net Weight | 36 lbs (16.33 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | Analog |
| UI type | Simple |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 21.00 Inches |
| Length: | 23.00 Inches |
| Weight: | 42 Lb(s) 0 Oz |
