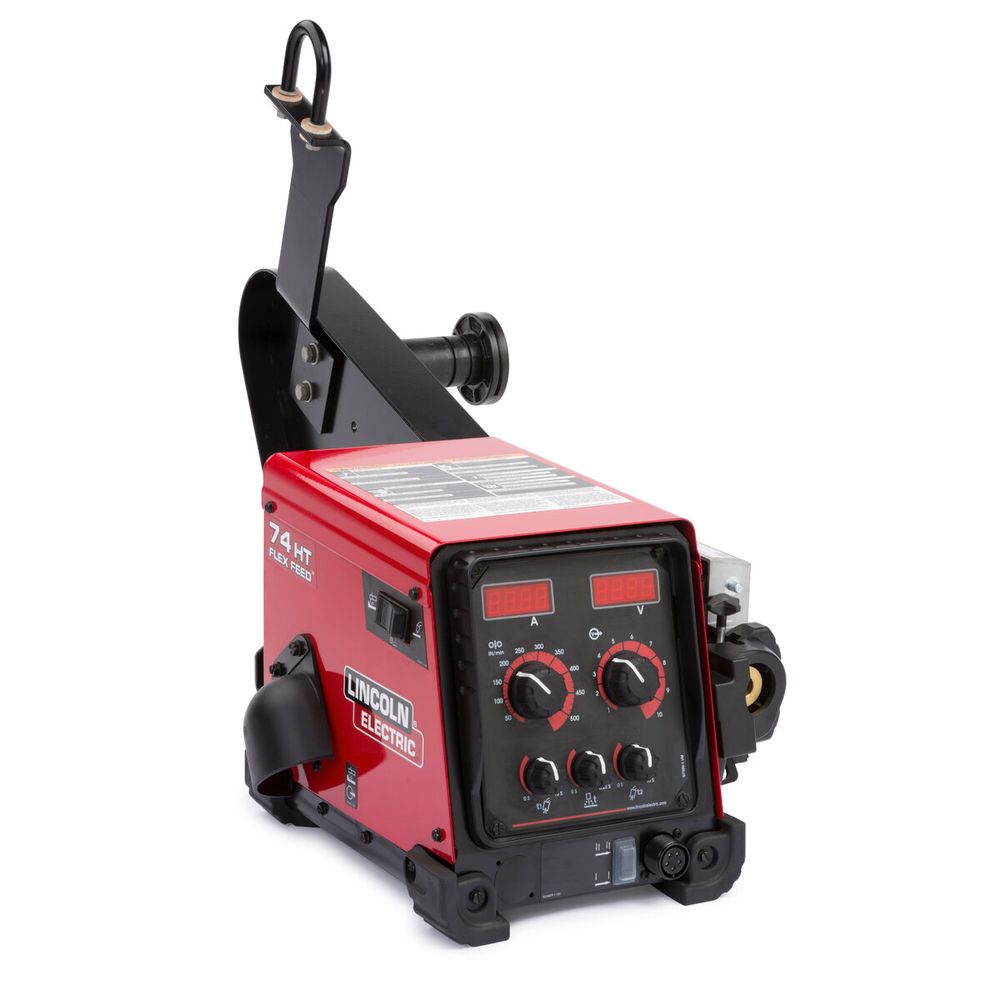

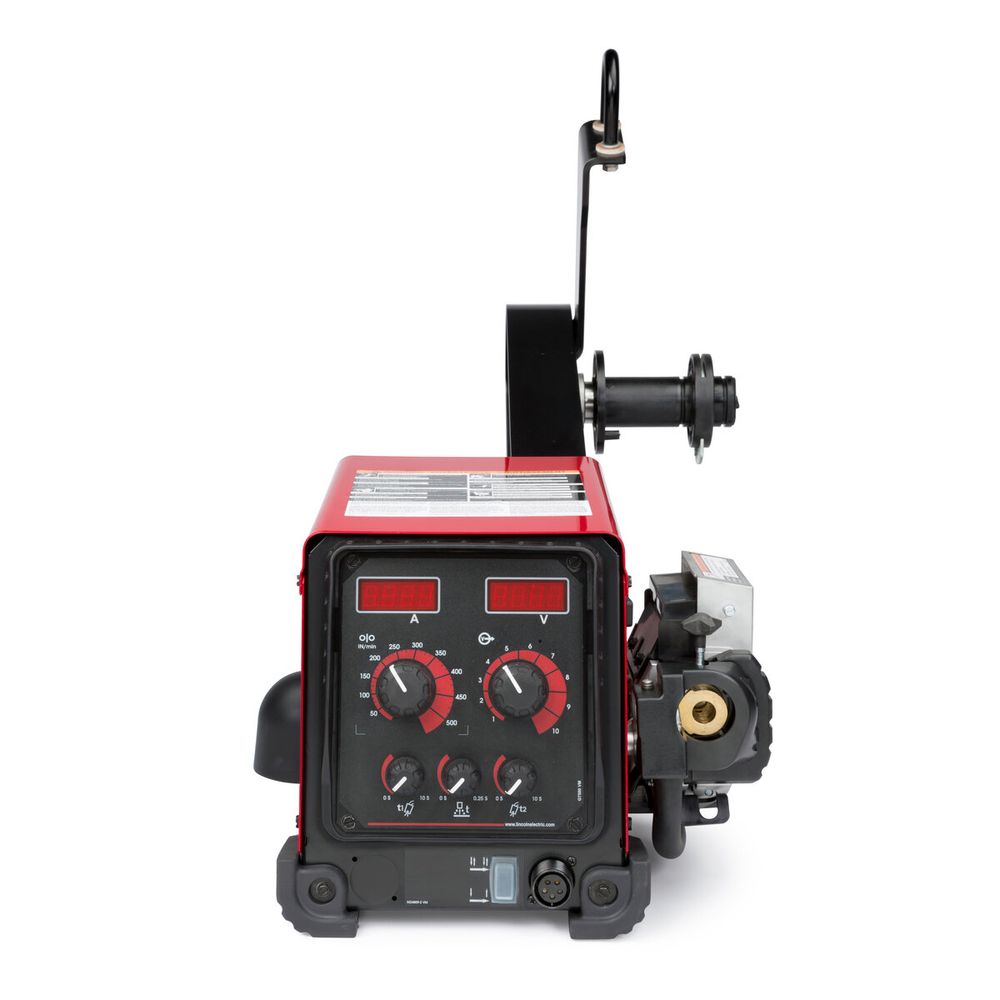

Lincoln Electric Flex Feed® 74 HT - Digital U/I, Heavy Duty Reel, Gouge Kit #K3883-14
Part Number: K3883-14
UPC: 015082565859
$5,463.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsHigh Torque Wire Feeder for Industrial Applications
The Flex Feed™ 74 HT is a robust, semiautomatic wire feeder designed for general and structural fabrication, offering customization for various applications.
Highlights
- User-Friendly Interface: Basic and digital U/I simplifies operator setup for efficiency.
- Durable Construction: Improved isolation and environmental protection ensure reliability in tough working conditions.
- Customizable Modularity: Designed to adapt to specific welding needs.
Industries
- Structural Fabrication
- General Fabrication
- Heavy Manufacturing
What’s Included
- Gouge Kit
- Heavy Duty Wire Reel Stand (K3343-1)
- Control Cable Extension (Male 14 pin to Female 14 pin - 10 ft) (K1797-10)
- Quick Connect Style Inlet Bushing (K3929-1)
- Flex Feed® 74 HT - Digital U/I, Gouge Kit (K3883-4)
Benefits of the Flex Feed® 74 HT
- Strong Drive Motor: Designed for large-diameter wire applications.
- Digital Meters: Display actual current and voltage during welding for enhanced monitoring.
- Advanced Wire Drive Design: The MaxTrac® 4-roll wire drive ensures consistent feeding and performance.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.3 in x 15.5 in x 23.5 in (338 mm x 394 mm x 599 mm) |
| Net Weight | 63 lbs (28.5 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 56 Lb(s) 0 Oz |
Consumables
