Lincoln Electric Flex Feed® 74 HT - Digital U/I, Gouge Kit #K3883-4
Part Number: K3883-4
UPC: 015082565750
$5,006.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Flex Feed® 74 HT Semiautomatic Wire Feeder with Gouge Kit #K3883-4

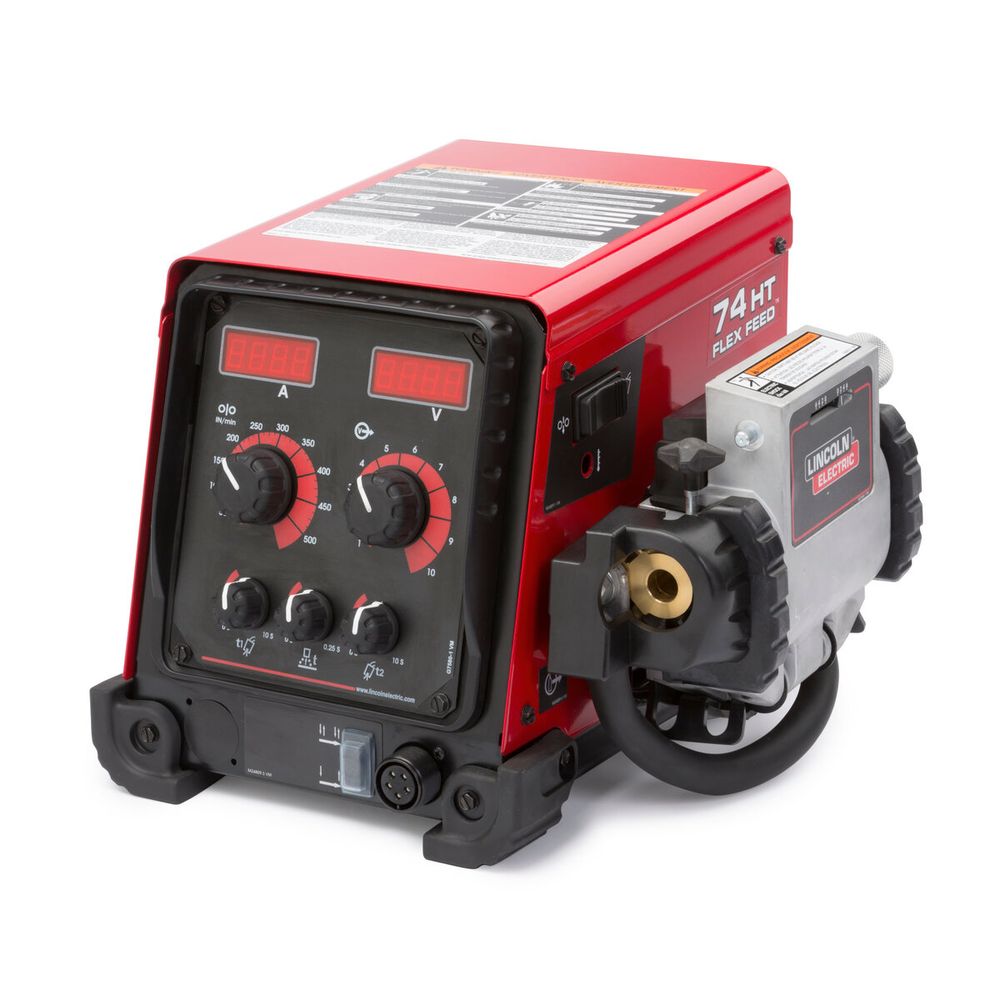

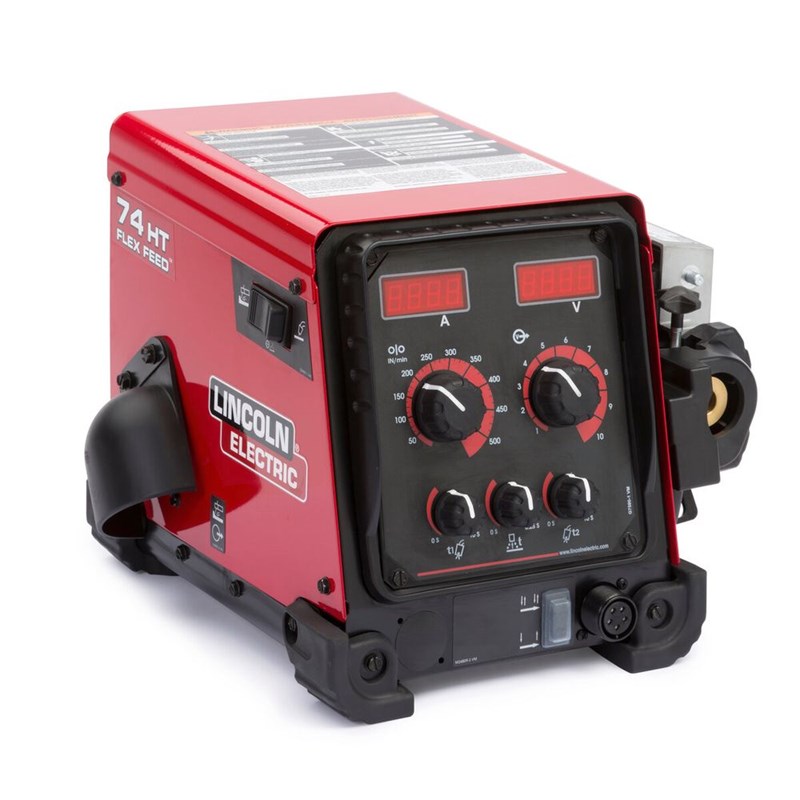

The Flex Feed™ 74 HT (High Torque) is a heavy-duty industrial wire feeder designed for general and structural fabrication, offering customizable features for various applications.
Highlights
- Basic and digital user interface for streamlined setup
- Enhanced isolation and environmental protection
- Robust connection points ensure reliable operation
- Modular design allows for customizable configurations
Industries
- General Fabrication
- Structural Fabrication
- Manufacturing
- Construction
- Metalworking
What's Included
- Gouge Kit
- Inlet Bushing, Quick Connect Style (K3929-1)
- Flex Feed® 74 HT - Digital U/I, No Reel (K3883-2)
Benefits of Flex Feed® 74 HT
- Simple design with a strong drive motor for large-diameter wire applications
- Digital meters display actual current and voltage during welding
- Advanced MaxTrac® 4-roll wire drive design for consistent feeding
- Configurable to meet specific operational needs, enhancing versatility in various work environments
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm) |
| Net Weight | 44 lbs (19.958 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Meters |
| Max Wire Diameter (Solid) | 3/32 in (2.4 mm) |
| Max Wire Diameter (Cored) | 0.120 in (3 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Max Spool Size (lbs) | 60 |
| Max Spool Size (kg) | 30 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
Application
| Typical Application | Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 44 Lb(s) 0 Oz |
