Check out the newer and better Hypertherm Powermax 45XP

Hypertherm Powermax 45 Plasma Cutter Part# 088016 20Ft Hand Torch

Hypertherm Powermax 45 is now the lighter, stronger 45XP #088016

Name: Powermax45 w/ 20' 75° Hand Torch (220V) #088016
Brand: Hypertherm
SKU: 088016

Part Number: 088016

This Item Has Been Discontinued and has been replaced by Hypertherm Powermax45 SYNC Plasma Cutter w/ 75° Hand Torch, 20' Leads #088560 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

220V Single Phase or 460V
3/4" Cut Capacity
75° Hand Torch
20' Leads
3-Year Power Warranty
First Time Student Rebate

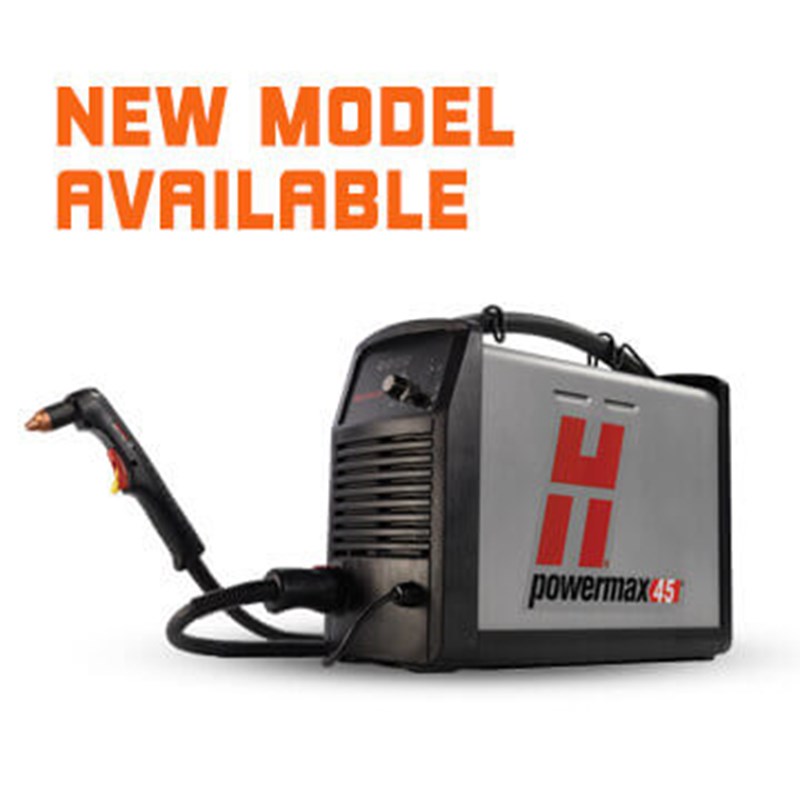

View the NEW & BETTER Model

Hypertherm Powermax 45 Plasma Cutter #088016 New Version:

088112 Powermax 45 XP 20 Ft. Hand Torch

INCLUDED IN THIS PACKAGE: 20' Torch assembly and 20' ground lead with clamp

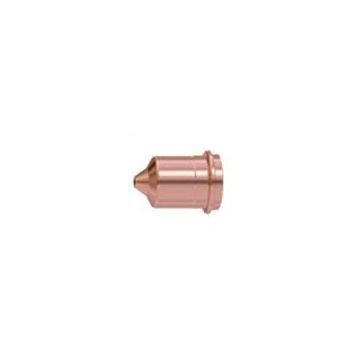

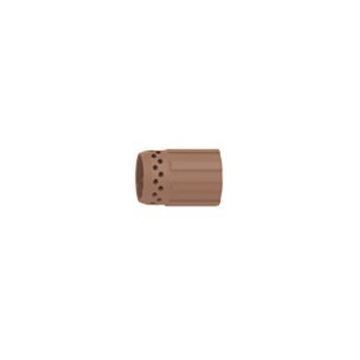

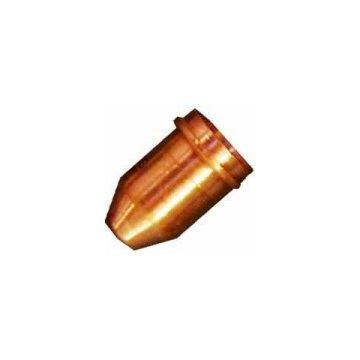

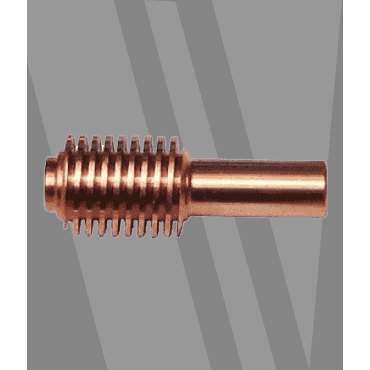

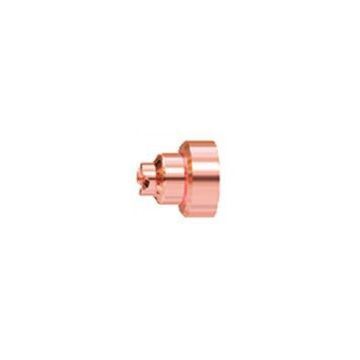

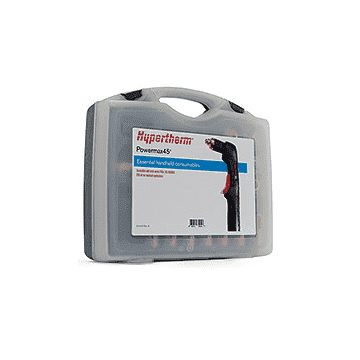

Accessories: Hypertherm Powermax 45 parts kit, replacement nozzle, electrode or cover.

Get the best price on Hypertherm's most popular handheld plasma with true 1/2" cutting capacity. It is a 230 volt single phase system with plenty of punch to pierce even thicker plate. Save hundreds of dollars with today's specials and we will ship it free to anywhere in the lower 48 states.

Shop at Welder Supply for the lowest price on Hypertherm Powermax refurbished torches and equipment.

We ship Hypertherm Powermax 45 around the world, including U.S., Puerto Rico, Canada, Mexico, Brazil, Venezuela, Colombia, U.K., Germany, Denmark, South Africa, and Australia!

Hypertherm Powermax 45 Plasma Cutter #088016: The Absolute Best Cutting or Gouging

Welders Supply's best-selling plasma cutter, the Powermax 45, is highly sought after by professional welders. Renowned for its versatility and portability, this machine stands out as the top choice for those in need of a 1/2" cutting solution. With its impressive range of capabilities, the Powermax 45 proves to be a truly multi-purpose tool, surpassing other comparable products in terms of speed, precision, and ease of use.

The plasma cutter comes complete (and we mean complete!) with these standard components:

Power supply
T45v hand torch
Extra consumables for cutting and gouging
20-foot work cable with clamp
20-foot torch assembly
Handy carrying strap

You can take it anywhere easily and use it for almost anything effectively. It’s probably why Powermax plasma cutters have been used for years at the Kennedy Space Center.

You want to make sure that your product works the way it should and Hypertherm Warranty can help you there. Be sure to register your Hypertherm Product.

Hypertherm Powermax 45 Plasma Cutter #088016: Amazing Range of Capabilities

Welders Supply proudly carries the Powermax 45, a plasma cutter that exemplifies superb design and engineering. Hypertherm's extensive collection of plasma cutter patents sets them apart as a leading manufacturer. With a focus on practicality and profitability, Welders Supply offers an impressive range of Hypertherm products and parts, specifically designed to assist professional welders in achieving excellent results.

To fully appreciate the capabilities of the Powermax 45, you'll need to spend a considerable amount of time operating it. Despite its compact and lightweight design, this machine offers an impressive combination of power and user-friendly features. It effortlessly slices through thin steel, providing a smooth, effortless cutting experience while handling thicker metals up to the recommended maximum thickness of 1/2".

Hypertherm Powermax 45 Plasma Cutter #088016: Delivers Outstanding Operational Advantages

The operational benefits are truly outstanding:

Key power supply advantages

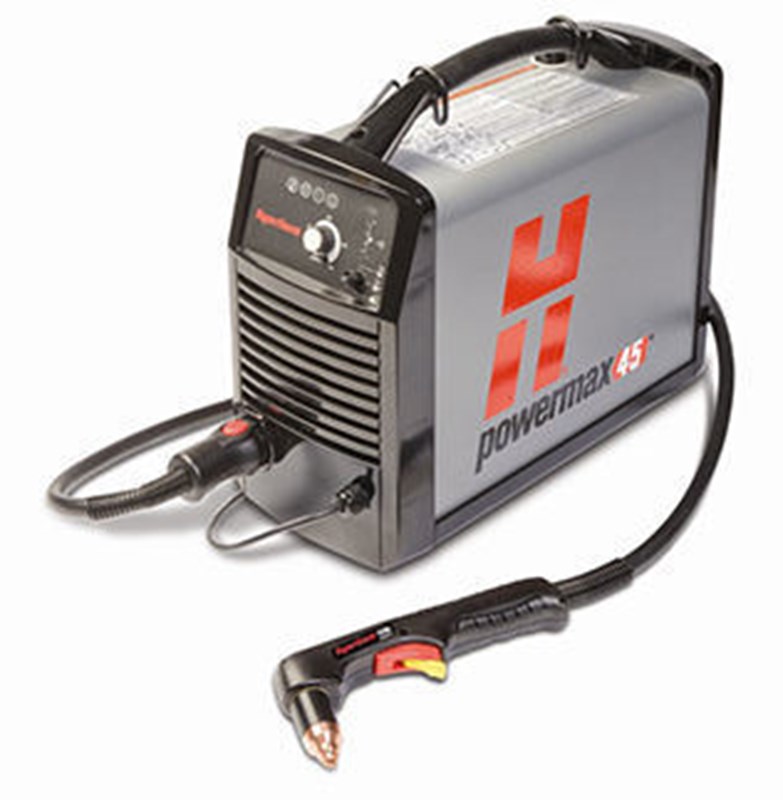

Hypertherm Powermax Power Supply

Small size and light weight provide unmatched portability among 1⁄2" (12 mm) machines.
Boost Conditioner^™ (on CSA models) compensates for input voltage variations on 200 - 240 V lines, providing improved performance on low-line voltage, on motor generators and on fluctuating input power.
Available CNC interface.
FastConnect^™ torch connection increase versatility for handheld and mechanized usage.
Powercool^™ design cools internal components more effectively for greater system reliability and improved uptime.

Key torch advantages

Hypertherm Plasma Torch

Conical Flow^™ increases arc energy density for superior cut quality with little dross.
Patented drag-cutting technology makes it easy to use - even for first-time operators.
Dual-angle design extends nozzle life and lowers operating cost.

Many additional accessories are available for the Powermax 45, including parts kit, replacement nozzle, electrode or cover. All Hypertherm products are covered by a manufacturer’s warranty.

Compare the Hyperthem Powermax 45 plasma cutter vs 30xp, 65, 85, 105 and 125.

Hypertherm Powermax 45 Review:

"The Powermax 45 increased our HVAC duct cutting speeds by more than 20% versus our old Thermal Dynamics model. The Powermax cut quality is better and the nozzles and electrodes last around 4x longer, so we now do fewer consumable change-outs. We are very impressed with the power coming out of this little plasma system."

Sylvain Fournier
Purchasing Manager at Le Materiel Industriel

Shop all Hypertherm products and accessories or browse plasma cutting machines and plasma cutting consumables and safety equipment available online at Welders Supply.

Newest Versions:

Hand Systems:

088112 Powermax 45 XP 20 Ft. Hand Torch
088113 Powermax 45 XP 20 Ft. Hand Torch W/ CPC
088114 Powermax 45 XP 50 Ft. Hand Torch W/O CPC
088115 Powermax 45 XP 50 Ft. Hand Torch W/ CPC
088124 Powermax 45 XP 20 Ft. Hand Torch 75° & 15° W/ CPC
088114 Powermax 45 XP 50 Ft. Hand Torch W/O CPC

Mechanized System:

088116 Powermax 45 XP 25 Ft. Mechanized Torch W/CPC & Remote
088117 Powermax 45 XP 35 Ft. Mechanized Torch W/CPC & Remote
088118 Powermax 45 XP 50 Ft. Mechanized Torch W/CPC & Remote
088121 Powermax 45 XP 25 Ft. Mechanized Torch W/ CPC
088122 Powermax 45 XP 25 Ft. Mechanized Torch W/CPC & Remote
088123 Powermax 45 XP 35 Ft. Mechanized Torch W/CPC

Torches Compatible with the Powermax 45:

Browse other versions of the Powermax 45:

Hypertherm Powermax 45 Plasma Cutter #088017 50Ft Hand Torch

Hypertherm Powermax 45 Specifications

Input voltages (± 10%)	CSA	200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz
	CE	230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz
Input Current @ 5.95 kW	CSA	200/230 V, 1-PH, 34/28 A 480 V, 3-PH, 9 A
	CE	230 V, 1-PH, 30 A 380/400 V, 3-PH, 10.5/10 A
Output current	20 - 45 A
Rated output voltage	132 VDC
Duty cycle @ 40°C (104°F)	CSA	50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH
	CE	50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH
	CE	50% @ 45 A, 380/400 V, 3-PH 60% @ 41 A, 380/400 V, 3-PH 100% @ 32 A, 380/400 V, 3-PH
Open circuit voltage (OCV)	275 VDC
Dimensions with handles	426 mm (16.75") D; 172 mm (6.75") W; 348 mm (13.7") H
Weight with 6.1 m (20') torch	CSA	17 kg (37 lbs)
	CE	16 kg (35 lbs)
Gas Supply	Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure	Cutting: 170 l/min (360 scfh; 6 scfm) @ 80 psi (5.5 bar) Gouging: 360 scfh; 170 l/min (6 scfm) @ 60 psi (4.1 bar)
Input power cable length	3 m (10')
Power supply type	Inverter - IGBT
Cuttable metals	Aluminum Mild Steel Stainless Steel
Cut capacity	1/2"

Powermax system requirements:

AC power source (fixed or generator)
Compressed air – shop air, portable air compressor, or bottled air (nitrogen is often used for stainless steel) – no explosive oxyfuel (excluding Powermax30 AIR system)
Safety equipment – including shaded glasses or face shield, gloves, protective clothing
Proper ventilation
