Hypertherm Powermax 45 Plasma Cutter #088017 50Ft Hand Torch
Part Number: 088017
Cut capacity:
1/2" Capacity
Plasma Torch Type:
Handheld
Power supply:
220V Single Phase
Material type:
Mild Steel
Stainless Steel
Documents
Videos
220V Single Phase or 460V
1/2" Cut Capacity
75° Hand Torch
50' Leads (15.2m)
3-Year Power Warranty
First Time Student Rebate

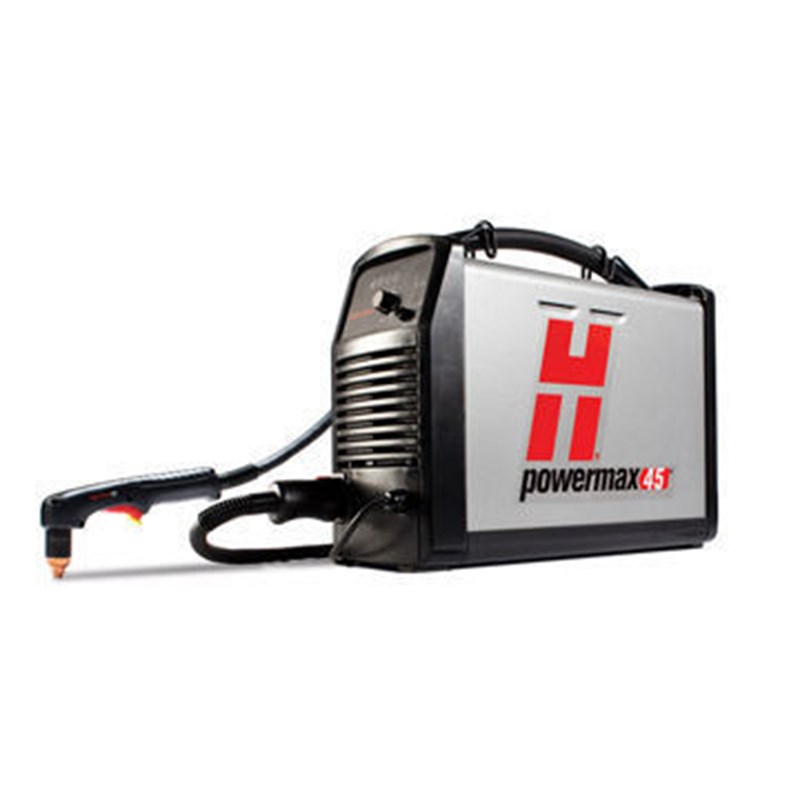

Powermax 45 Machine with a 50ft Hand Torch #088017
Hypertherm's best-selling handheld plasma cutter offers a genuine 1/2" cutting capacity. This 230-volt single-phase system delivers ample power to pierce thicker plates. Take advantage of today's special offer to save hundreds of dollars and enjoy free shipping to anywhere in the lower 48 states.
You want to make sure that your product works the way it should and Hypertherm Warranty can help you there. Be sure to register your Hypertherm Product.
Comes complete with a 50' torch assembly and 20' ground lead with clamp or order replacement Nozzles, Electrodes, Nozzle Retainer.
ORDER TODAY AND SAVE!
Key power supply advantages
- Small size and light weight provide unmatched portability among 1⁄2" (12 mm) machines.
- Boost Conditioner™ (on CSA models) compensates for input voltage variations on 200 - 240 V lines, providing improved performance on low-line voltage, on motor generators and on fluctuating input power.
- available CNC interface. FastConnect™ torch connection increase versatility for handheld and mechanized usage.
- Powercool™ design cools internal components more effectively for greater system reliability and improved uptime.
Mechanized key torch advantages
- Conical Flow™ increases arc energy density for superior cut quality with little dross.
- Patented drag-cutting technology makes it easy to use - even for first-time operators.
- Dual-angle design extends nozzle life and lowers operating cost.
View all our Hypertherm welding products and best sellers:
- Hypertherm Powermax Machine 30xp
- Hypertherm Powemax Machine 45
- Hypertherm Powermax Machine 65
- Hypertherm Powermax Machine 85x
- Hypertherm Powermax Machine 105
Compare the Powermax 45 plasma cutter from Hypertherm vs 30xp, 65, 85, 105 and 125.
HYPERTHERM Powermax 45 CONSUMABLES AND KITS
Stock up on consumables with the handheld CSA consumable kit, essential handheld consumables kit, or view compatible torch.
Shop other Plasma Cutting Machines, Accessories, Welding Helmets, Helmet Accessories, Gloves, Jackets, Aprons, Caps, and Pants.
The Miller #088017 has been replaced with the new and improved Miller #088114.
Newest Versions:
Hand Systems
Mechanized System
- 088116 Powermax 45 XP 25 Ft. Mechanized Torch W/CPC & Remote
- 088117 Powermax 45 XP 35 Ft. Mechanized Torch W/CPC & Remote
088118 Powermax 45 XP 50 Ft. Mechanized Torch W/CPC & Remote - 088121 Powermax 45 XP 25 Ft. Mechanized Torch W/ CPC
- 088122 Powermax 45 XP 25 Ft. Mechanized Torch W/CPC & Remote
- 088123 Powermax 45 XP 35 Ft. Mechanized Torch W/CPC
| Input voltages (± 10%) |
CSA | 200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz |
|---|---|---|
| CE | 230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz |
|
| Input Current @ 5.95 kW | CSA | 200/230 V, 1-PH, 34/28 A 480 V, 3-PH, 9 A |
| CE | 230 V, 1-PH, 30 A 380/400 V, 3-PH, 10.5/10 A |
|
| Output current | 20 - 45 A | |
| Rated output voltage | 132 VDC | |
| Duty cycle @ 40°C (104°F) | CSA | 50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH |
| CE | 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH |
|
| CE | 50% @ 45 A, 380/400 V, 3-PH 60% @ 41 A, 380/400 V, 3-PH 100% @ 32 A, 380/400 V, 3-PH |
|
| Open circuit voltage (OCV) | 275 VDC | |
| Cuttable metals | Mild steel, stainless steel, aluminum | |
| Dimensions with handles | 426 mm (16.75") D; 172 mm (6.75") W; 348 mm (13.7") H |
|
| Weight with 6.1 m (20') torch | CSA | 17 kg (37 lbs) |
| CE | 16 kg (35 lbs) | |
| Gas Supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate / pressure |
Cutting: 170 l/min (360 scfh; 6 scfm) @ 80 psi (5.5 bar) Gouging: 360 scfh; 170 l/min (6 scfm) @ 60 psi (4.1 bar) |
|
| Input power cable length | 3 m (10') | |
| Power supply type | Inverter - IGBT | |
Powermax system requirements:
- AC power source (fixed or generator)
- Compressed air – shop air, portable air compressor, or bottled air (nitrogen is often used for stainless steel) – no explosive oxyfuel (excluding Powermax30 AIR system)
- Safety equipment – including shaded glasses or face shield, gloves, protective clothing
Proper ventilation
Cut Capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
|
Cutting |
||
| Recommended | 12 mm (1/2") | 500 mm/min (20 ipm) |
| 19 mm (3/4") | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 25 mm (1") | 125 mm/min (5 ipm) |
| Pierce* | 12 mm (1/2") | |
Hypertherm Powermax 45 XP Error Codes and Troubleshooting
Additional Error Codes and Troubleshooting for the Powermax 45 XP
 |
 |
SHIPPING DIMENSIONS |
|
| Height: | 13.70 Inches |
| Width: | 6.75 Inches |
| Length: | 16.75 Inches |
| Weight: | 37 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the gouge capacity?
A - 6.2 lbs per hour with a groove profile of .13" D by .22" W
Q - How much does it weight?
A - 37 lbs with the 20' torch
Q - What is the cut capacity?
A - ½ inch
Q - What torch is included?
A - Powermax45 T45v Hand Torch Assembly 50 ft and 20 ft ground lead with clamp.
