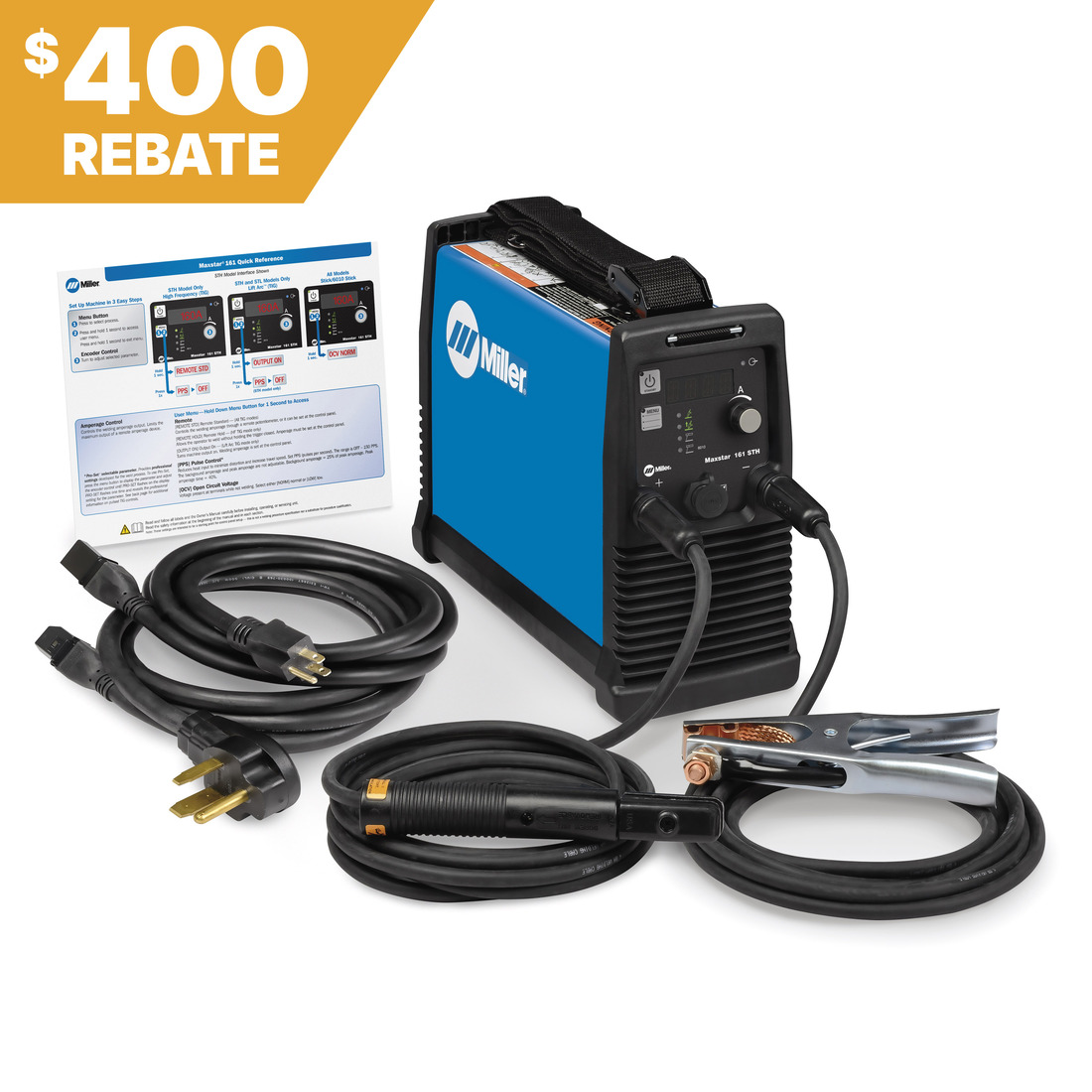

Miller Maxstar 161 STH Pulsed TIG/Stick Welder, 120-240V #907711

Welding type:

TIG

Stick
Power supply:

110V

220V Single Phase
Material type:

Mild Steel

Welder’s Supply is a proud provider of Miller welders and accessories. Miller, often considered to be an industry giant in the welding world, is a manufacturer of top-notch TIG welders that boast high levels of dependability and performance. We offer a wide variety of Miller TIG welding packages depending on your welding needs, and we are guaranteed to have a setup that best fits you.
This is a basic, yet simple Maxstar 161 TIG welding kit with everything you need to get started. Looking for a more inclusive Miller welding package? Be sure to check out our full line of Maxstar 161 TIG welding packages and Miller welding accessories.
The Maxstar 161 STH TIG welder completely eliminates the need for an annoying gas valve, and can easily connect to any standard 120 or 240 volt receptacle without the need for any additional attachments or tools. Because you can reduce the amount of heat involved, the 161 is also great for welding delicate thin metals that can often be prone to extreme warpage. The 161 welder is lightweight, features a compact, easy to transport design, and is great for both professional contractors and amateur welders alike.
Other Versions:
Maxstar 161 STH Part #907711 Specifications: | ||
---|---|---|
Input Voltage Options | 110/115/120 V 220/230/240 V |
|
Input Hz Range | 50 / 60 Hz | |
Input Phase | 1-phase | |
Current Type | DC | |
Weld Output | CC | |
Maximum Open Current Voltage | 48 VDC | |
Material Thickness | 0.02 in. (0.5 mm) - .1875 in. (4.8 mm) | |
Weldable Metals | Steel Stainless Steel |
|
Processes | Stick (SMAW) Lift-Arc™ TIG (GTAW) High-frequency TIG (GTAW) Pulsed TIG (GTAW-P) |
|
Process Specifications | ||
Stick (SMAW) Lift-Arc™ | TIG (GTAW) | |
Welding Amperage Range | 120 V: 5–130 A 240 V: 5–160 A |
120 V: 20–90 A 240 V: 20–160 A |
Rated Welding Output | 120 V: 90 A at 13.6 VDC, 100% duty cycle; 130 A at 15.2 VDC, 30% duty cycle 240 V: 110 A at 14.4 VDC, 100% duty cycle; 160 A at 16.4 VDC, 20% duty cycle |
120 V: 60 A at 22.4 VDC, 100% duty cycle; 90 A at 23.6 VDC, 30% duty cycle 240 V: 110 A at 24.4 VDC, 100% duty cycle; 160 A at 26.4 VDC, 20% duty cycle |
Ancilliaries | ||
Industrial Applications | Racing / Customizing / Restoring DIY / Home Hobbyist Farm and Ranch Metal Art / Sculpting Manufacturing Aerospace Boat / Yacht Construction Education / Training Heavy Equipment Manufacturing High Purity Processing Infrastructure Mechanical Contracting |
|

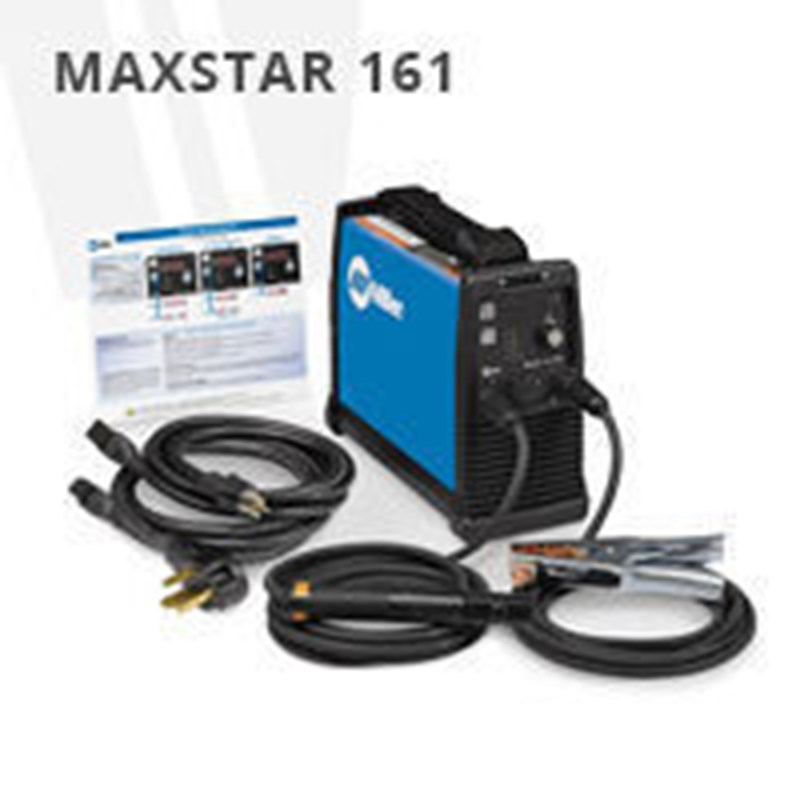

Package Includes | Maxstar 161 power source 6.5 ft. (2 m) 120-volt and 240-volt power cords Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector One air-cooled TIG torch connector (195234) Handle/shoulder strap Quick-reference guide |
|
Net Width | 5.6 in. (142 mm) | |
Net Height | 10.3 in. (262 mm) | |
Net Length | 13.5 in. (343 mm) | |
Net Weight | 13 lb. (5.9 kg) | |
Portability | Handles Straps |
|
Warranty | 3 years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 10.30 Inches |
Width: | 5.60 Inches |
Length: | 13.50 Inches |
Weight: | 13 Lb(s) 0 Oz |
