Millermatic 350P/Aluma-Pro Package Pulsed MIG Welder 230/460V #951452
Part Number: 951452
Welding type:
MIG
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
MIG Welding
Multi-Voltage
1-Phase or 3-Phase
1/2" Max Thickness

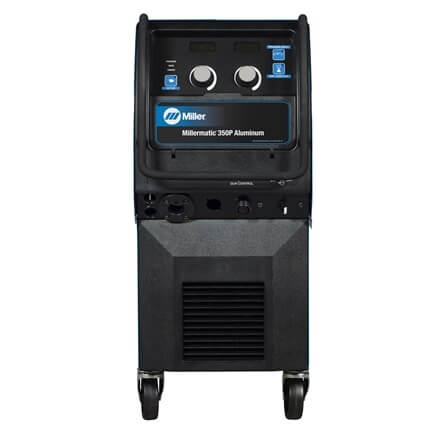

Millermatic 350P Aluminum MIG Welder #951452 (DISCONTINUED)
FREE SHIPPING TO THE LOWER 48 states on purchases over $300
The Millermatic 350P MIG Welder/Aluma-Pro Package Pulsed MIG Welder is designed only for MIG welding work on aluminum. This 230/460Volt machine runs at a 60% duty cycle and is rated at 300 amps. It will weld up to 1/2" aluminum, and has ample power for most home and professional welding projects. By switching to Pulsed-MIG welding using the Millermatic 350P welder, you'll not only save money but also improve productivity by 30, 50, or 100%.
Millermatic 350P Aluma-Pro MIG Welder Features:
- Aluminum Pulse Hot Start – Automatically provides more arc power, eliminating the “cold start” typically inherent with aluminum starts.
- SharpArc – Optimizes the size and shape of the arc cone, bead width, appearance, and puddle fluidity.
- Line Voltage Compensation (LVC) – Keeps output of the power source constant regardless of fluctuation in the input power +/- 10%.
- Gun-On-Demand – Allows you to use either a standard MIG gun, a Spoolmatic 15/30A spool gun, or any other Miller push-pull gun without flipping the switch. The welding machine automatically senses which gun you are using when you pull the trigger.
- Fan-On-Demand Cooling System- Only operates when needed, reducing the power consumption and keeping the internal components cleaner to provide less maintenance needs.
Applications
- Aluminum Welding
- Fabrication
- Farm and Ranch
- Field Maintenance and Repair
- Manufacturing
- Schools/Training
For the best price on Miller welding machines, MIG welders, and welding machine accessories, shop Welders Supply.
Other versions of the Millermatic 350P:
- 907300 - Basic Package
- 907300002 - Autobody Package
- 907474 - Aluminium-Welding Standard Unit
- 951451 - Aluminium Unit w/ 15ft. Aluma-Pro Push-Pull Gun
Millermatic 350P #951452 - Specifications | |
|---|---|
| Input Power | Requires 1- or 3-Phase power |
| Rated Output | 300 Amps at 32 VDC, 60% duty cycle, 1- or 3-Phase |
| Welding Amperage Range | 25 - 400 Amps |
| Wire Speed | 50 - 700 IPM (1.3 - 17.8 m/min) |
| Net Weight | 181 lb (82 kg) |
| Wire Diameter Capacity | .023 - .045 in (0.6 - 1.2 mm) Solid Steel .030 - .045 in (0.8 - 1.2 mm) Stainless .035 - .047 in (0.9 - 1.2 mm) Aluminum .035 - .052 in (0.9 - 1.3 mm) Metal-Core .030 - .052 in (0.8 - 1.3 mm) Flux Cored |
| Max Spool Size Capacity | 12 in (305 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 30.00 Inches |
| Width: | 36.00 Inches |
| Length: | 42.00 Inches |
| Weight: | 230 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the Millermatic 350P's amperage range?
A - 25 to 400 A
Q - How fast does Millermatic 350P feed wire?
A - 50 to 800 imp with Push-Pull Gun
How to install gas supply:
- Secure gas cylinder.
Obtain gas cylinder and chain to running gear, wall, or other stationary support so cylinder cannot fall and break off valve.
- Remove cap.
Remove cap, stand to side of valve, and open valve slightly. Gas flow blows dust and dirt from valve. Close valve.
- Connect supplied gas hose.
Connect supplied gas hose between regulator/flowmeter gas hose connection, and fitting on rear of welding power source.
- Adjust flow.
Typical flow rate is 30 to 35 cfh (cubic feet per hour). Check wire manufacturer’s recommended flow rate.
