Battery Powered
TIG Welding
Stick Welding
DC Output
110V Charging Input
1-Phase Charging Input
Lincoln Electric 3-Year Warranty

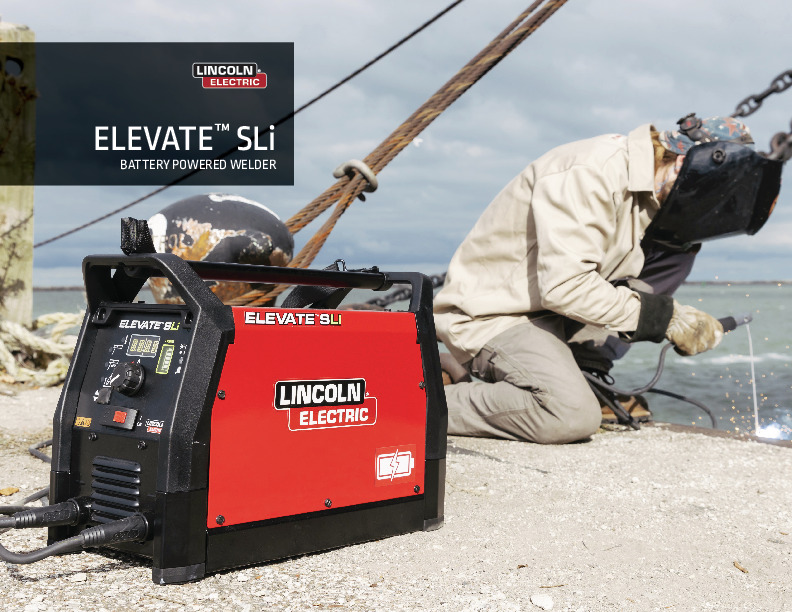

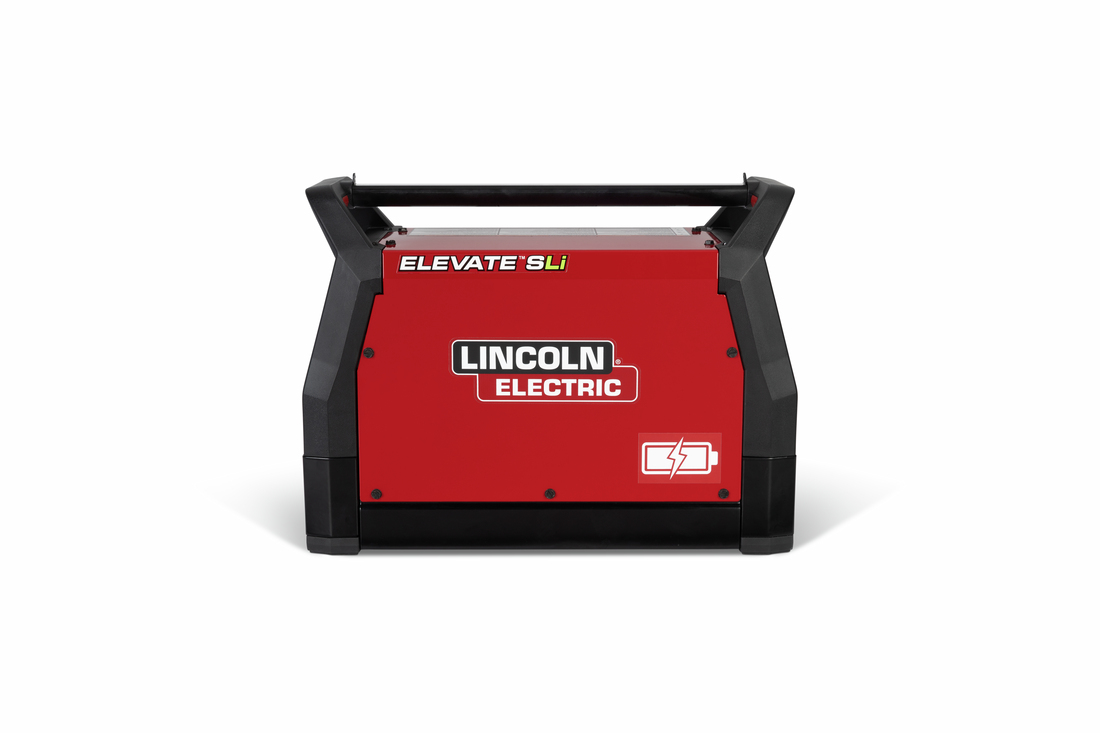

ELEVATE™ SLi Battery Powered Stick/TIG Welder w/ Rolling Carrying Case & TIG Package #K5624-1

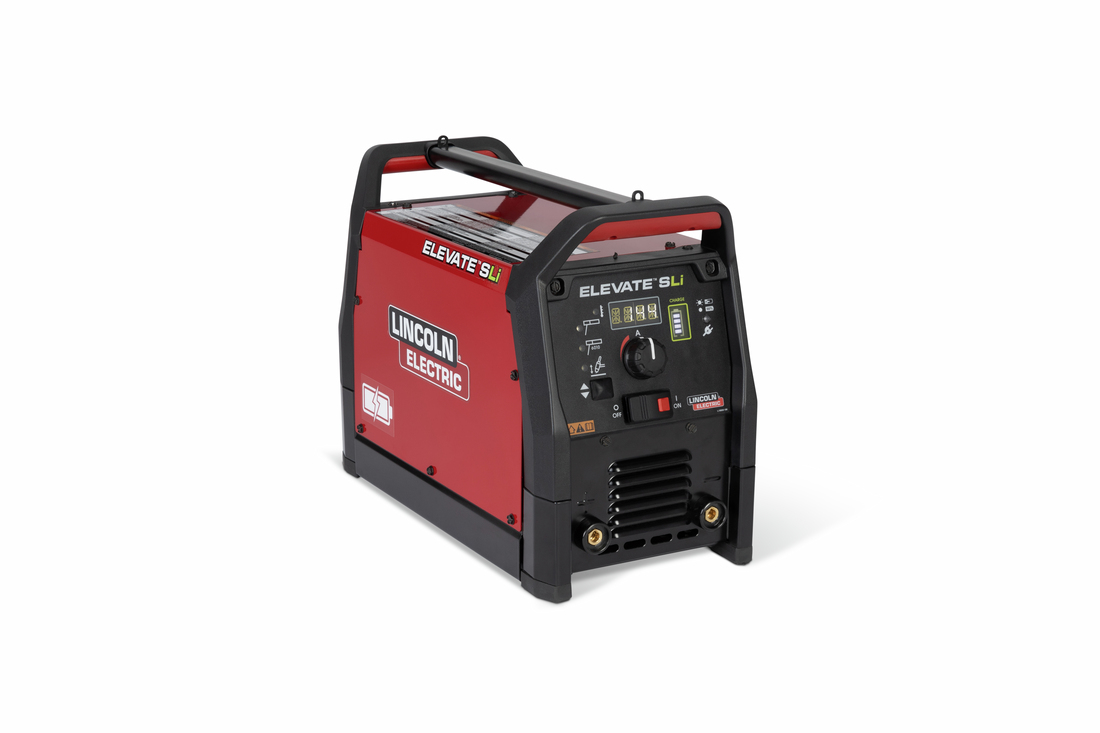

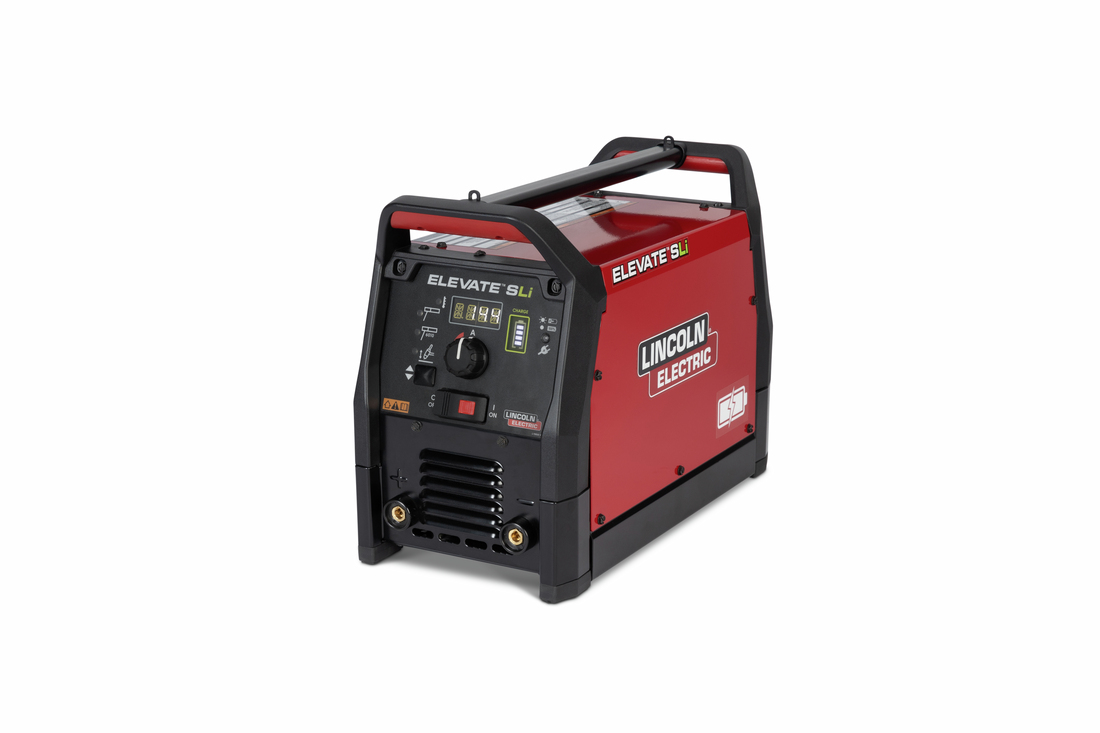

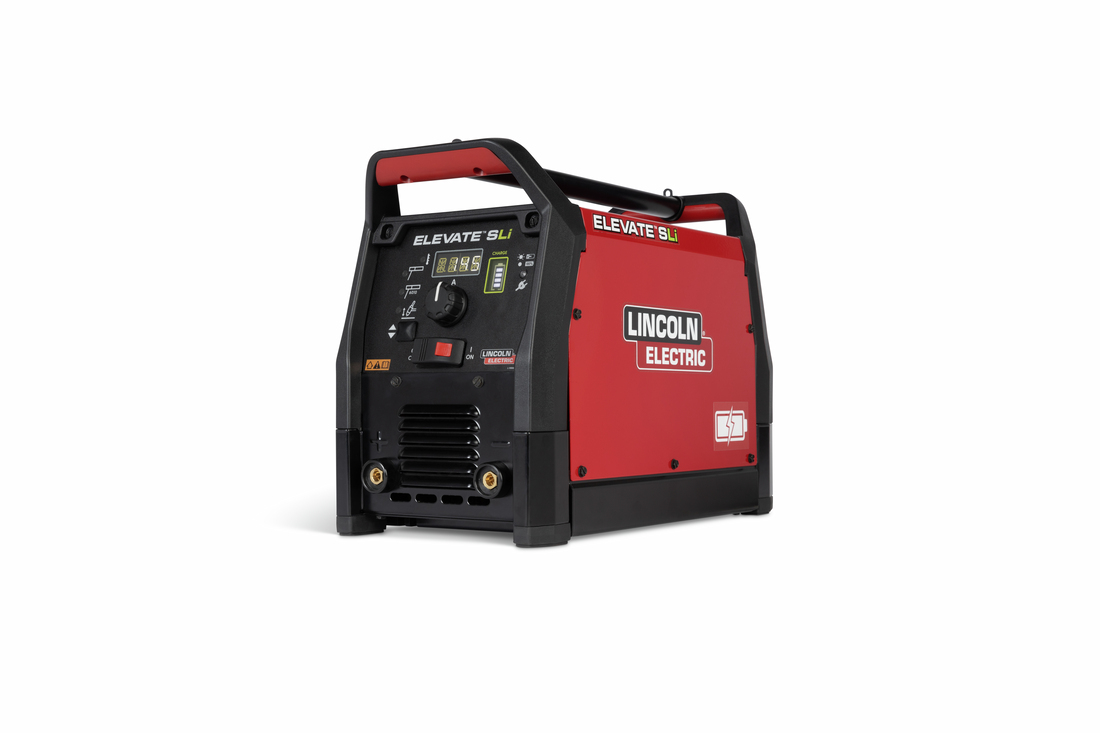

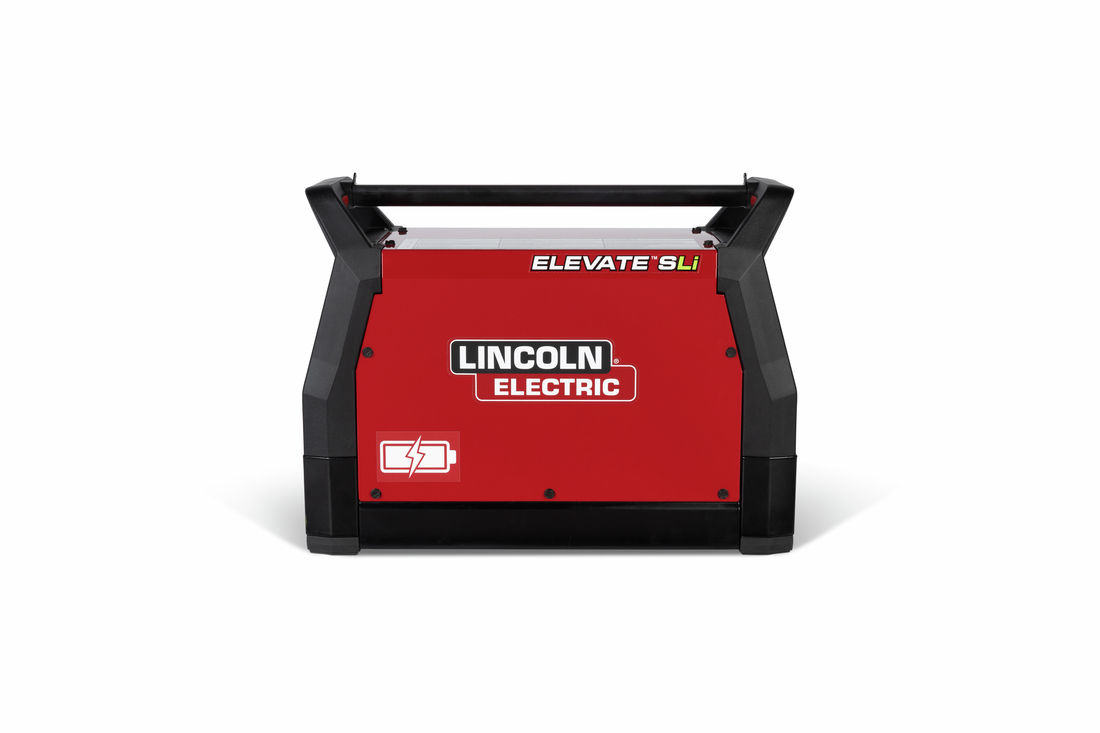

The ELEVATE™ SLi is a battery powered welder from Lincoln Electric is engineered to withstand harsh job site conditions and provides increased versatility with powerful cordless Stick & TIG welding capabilities. The TIG & Rolling Case Package adds a heavy-duty rolling carrying case with a 42-inch telescoping handle, a flow gauge regulator and a Caliber® 17 Series TIG Torch with an adaptor and an expendables kit.
Download literature of this machine:
Industries
- Construction
- Fabrication
- Maintenance
- Repair

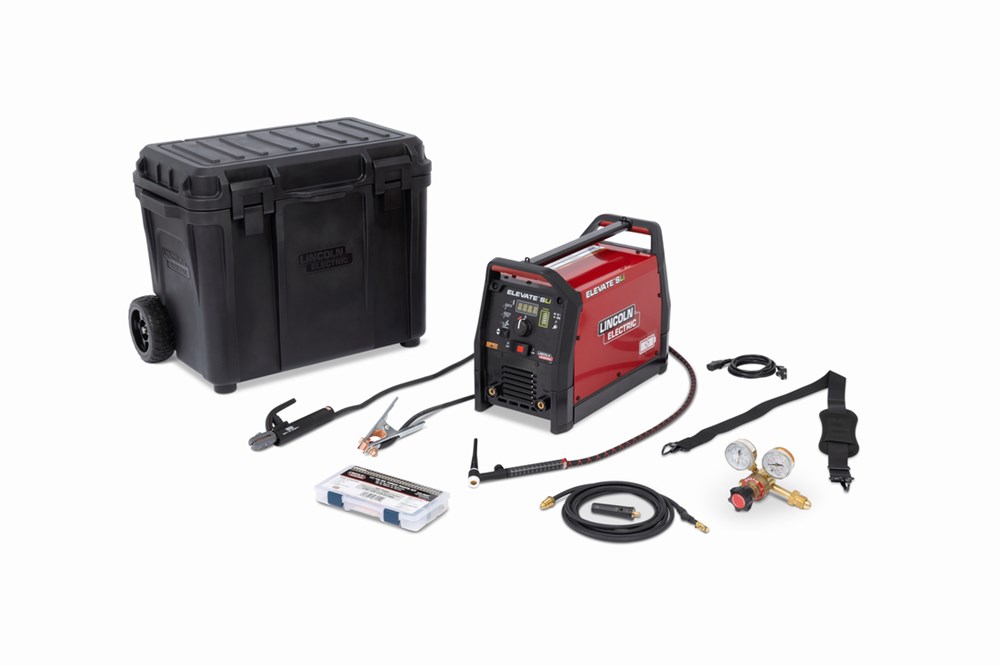

What’s Included
- ELEVATE™ SLi Battery Powered Welder

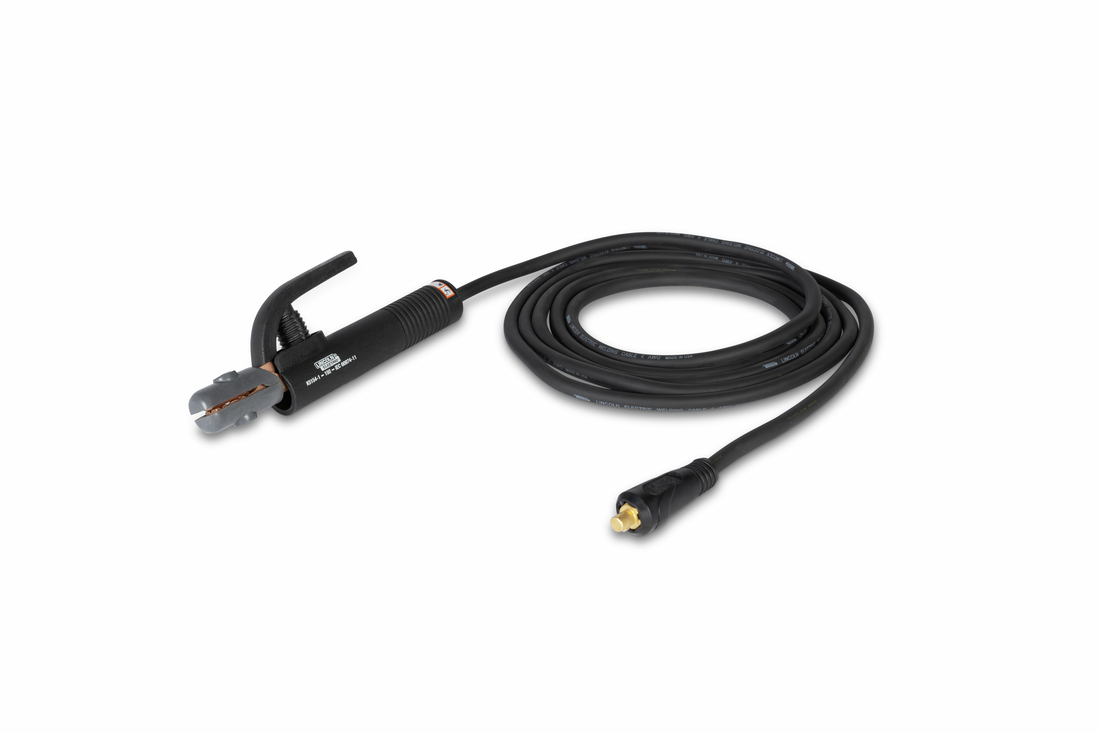

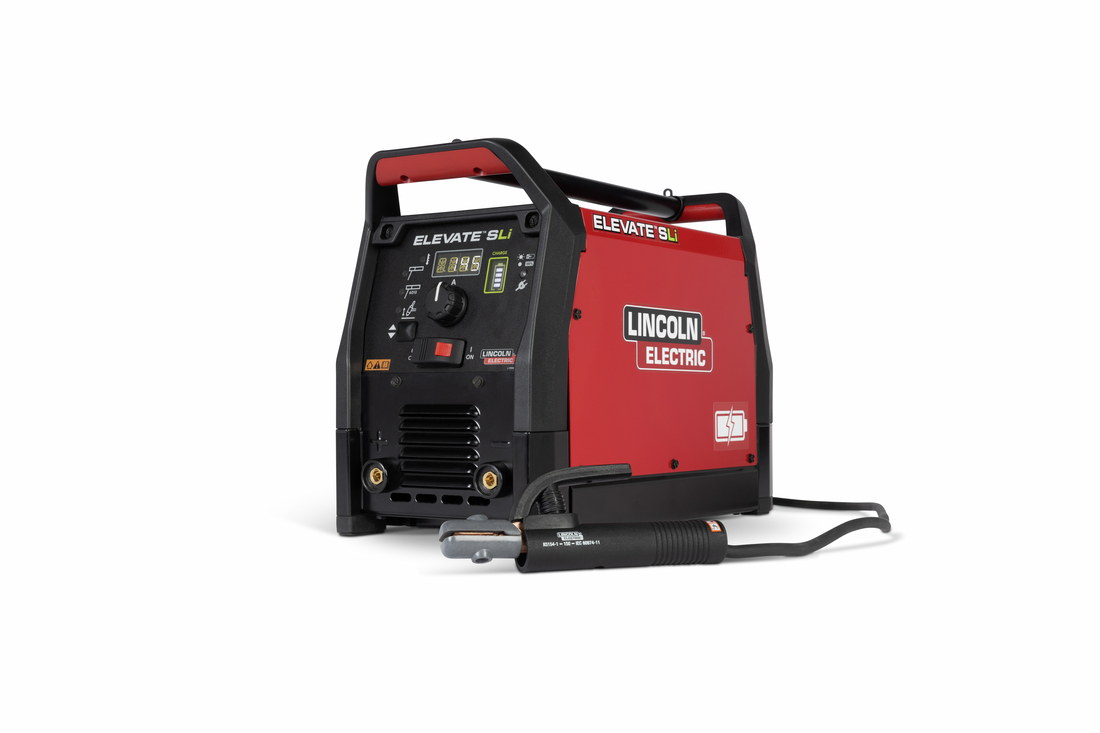

- 200A Industrial Electrode Holder, Cable and Twist Mate™ Plug (K-5612-1)

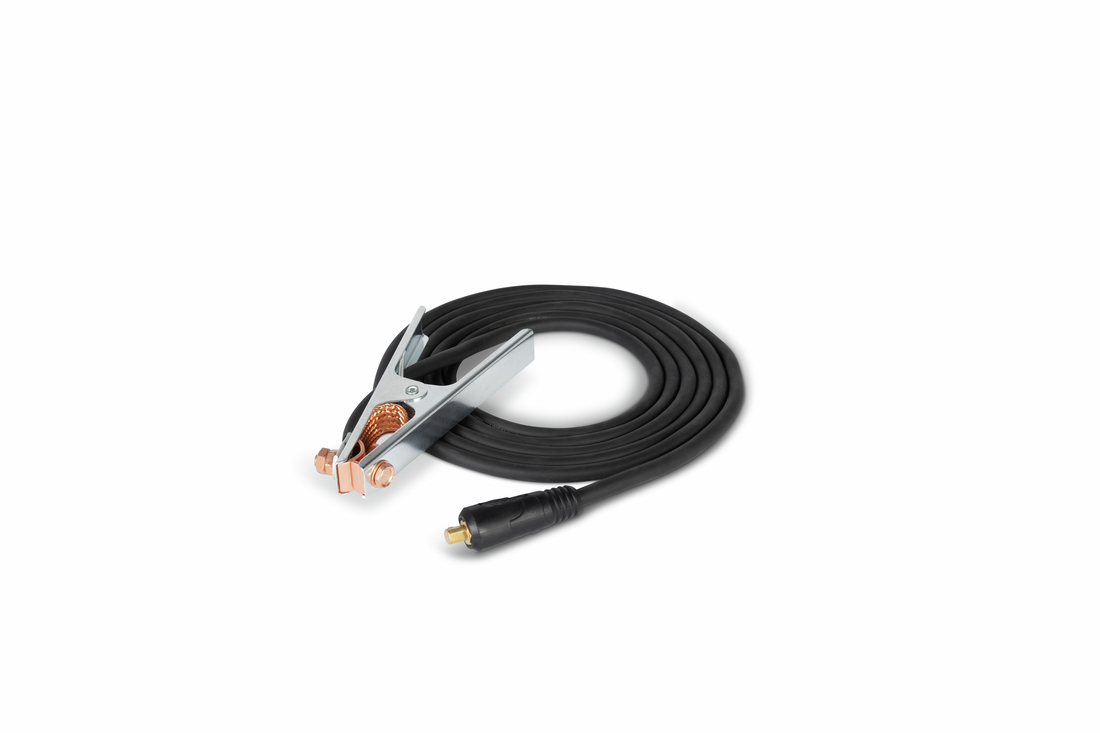

- Work Cable and Clamp with Twist Mate™ Plug (K5482-1)

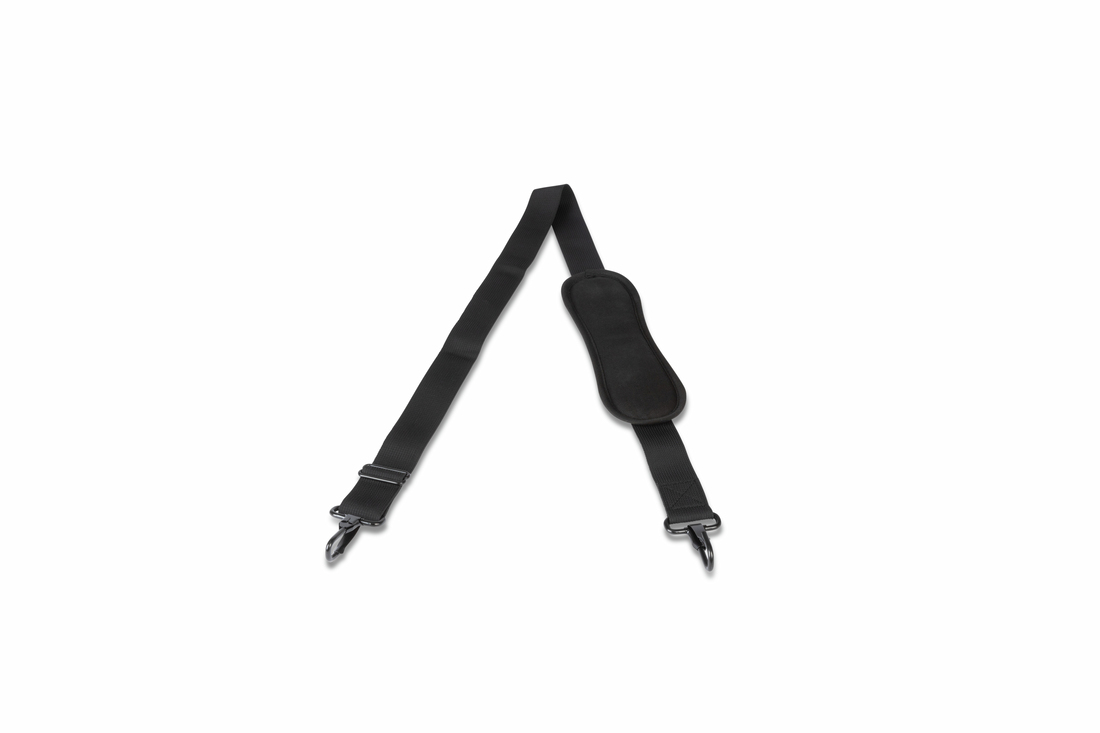

- Fully Adjustable Shoulder Strap (KP5656-1)

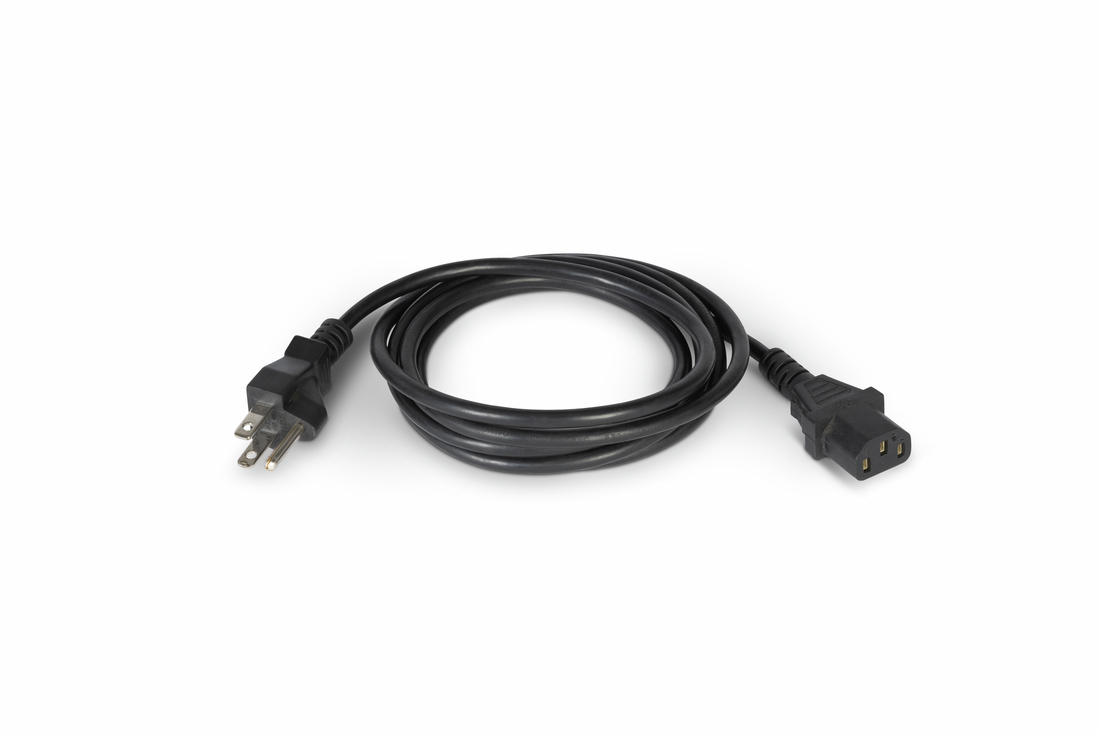

- 120V Input Cord, 8 ft. (2.4m) (KP5655-1)

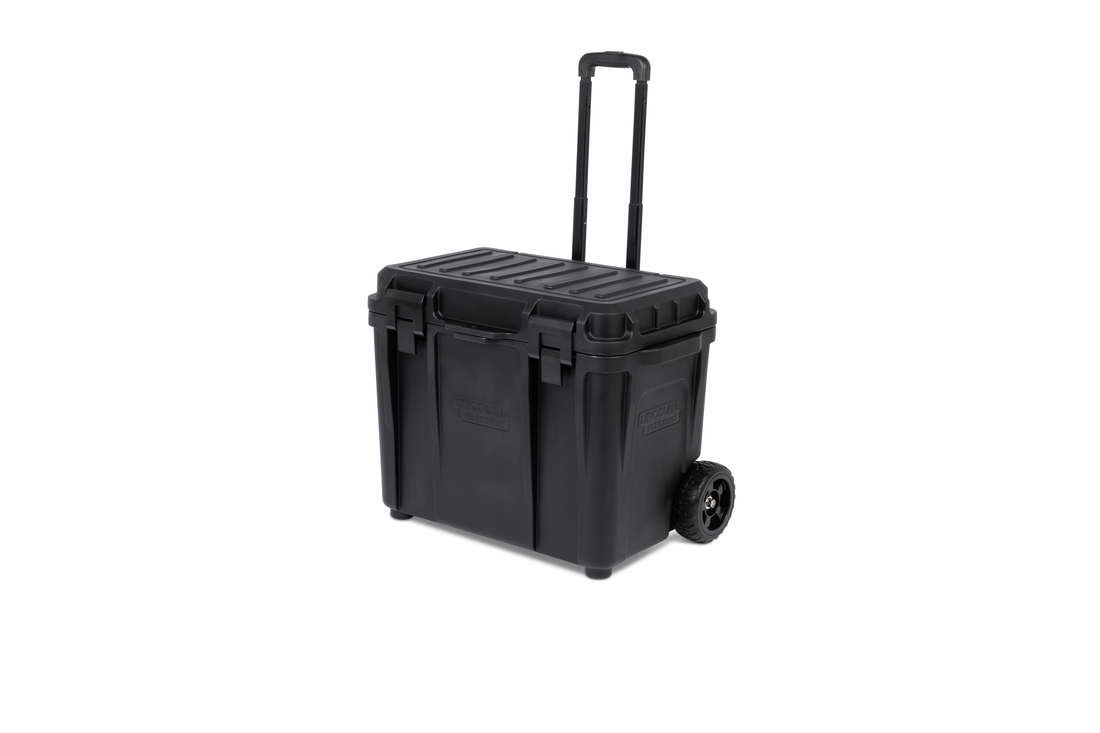

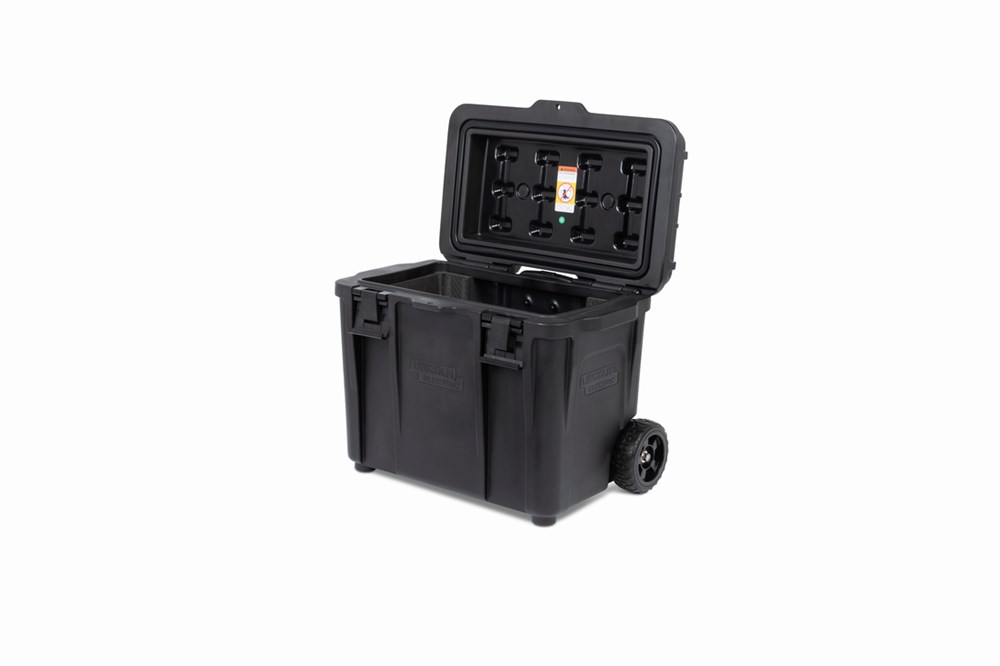

- Rolling Carrying Case (20.5H x 25W x 17.5D) (K5548-1)

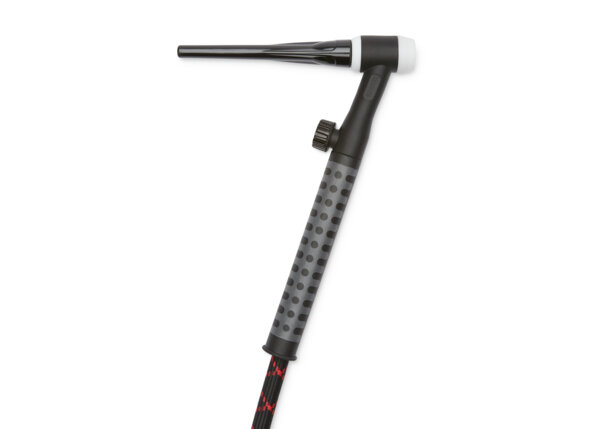

- Caliber® 17 Series TIG Torch - Flex/Valve 12.5 ft. (K4841-17FV-1)
- Small Twist Mate™ Torch Adapter (K960-2)

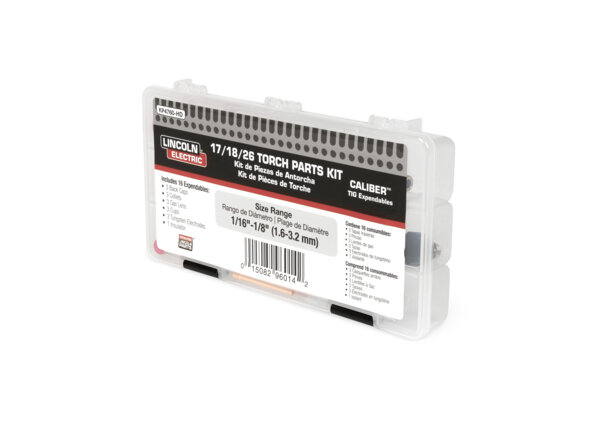

- Caliber® 17/18/26 Series TIG Torch Expendables Kit - 1/16 in. - ⅛ in. (KP4760-HD)
- Single-Stage Flowgauge Regulator Ar5-30-580 (3000369)
Benefits of the ELEVATE™ SLi Cordless Welder, Rolling Case Pkg

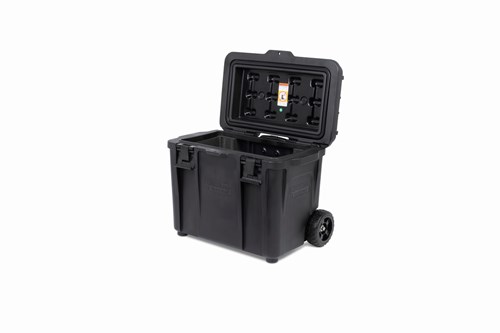

- Heavy Duty Rolling Carrying Case: Provides the ultimate protection for your welding equipment and comes with a telescoping handle, interior accessory tray, lockable case, water-resistant silicone gasket, heavy-duty locking latches and 6-inch all terrain wheels.
- Multiple Ways to Weld: You can use the ELEVATE™ SLi cordlessly or plug into a standard 120V wall outlet for charging while welding.
- Fan-As-Needed Circuitry (FAN™): Reduces the amount of debris entering your machine by shutting off the fan when it’s unnecessary. The fan automatically turns on before components overheat, prolonging your electronics’ life expectancy and helping to conserve battery life.
- Lithium Ion Phosphate Battery Technology: LFP offers good electrochemical performance and low resistance for one of the safest, most stable battery systems on the market.
Fast, Free Shipping & Easy Returns
At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE and demo items. For more details, contact our customer service team at 1-844-682-0205.
Try these accessories with your new ELEVATE™ SLi Cordless Welder:
Other Versions of the ELEVATE™ SLi:
| Lincoln Electric Elevate™ SLi Battery Powered Welder Specifications |
|---|
| Product Name |
Product Number |
Charging Input Power Voltage/Phase/Hertz |
Output Range |
Rated Output @ 104°F (40°C) |
Electrode Diameters in (mm) |
Open Circuit Voltage (OCV) |
Dimensions - H x W x D in (mm) |
Net Weight lb (kg) |
| ELEVATE™ SLi Base Model |
K4706-1 |
120/1/60 Max 6A |
Stick: 20-145A
TIG: 4-145A
|
145A / 25.8V |
3/32 (2.4)
1/8 (3.2)
5.32 (4.0)
|
Average: 55V
Peak: 72V
|
14 x 11 x 20
(356 x 292 x 508) |
33 (15) |
| Rolling Case Package |
K5622-1 |
| TIG & Rolling Case Package |
K5624-1 |
| Electrode Consumption - Stick Welding (SMAW) |
|---|
| |
E6010 |
E6013 |
E7018 |
| |
Electrodes Consumed |
Amps |
Electrodes Consumed |
Amps |
Electrodes Consumed |
Amps |
| 3/32 x 12 in |
21.7 |
60 |
16.8 |
75 |
12.3* |
90 |
| 1/8 x 14 in |
9.2 |
90 |
9.4 |
110 |
8.1 |
120 |
| 5/32 x 14 in |
6.3 |
120 |
5.8 |
140 |
5.3 |
140 |
| Lift Start TIG Welding (GTAW) |
|---|
| |
Total Arc Time to Battery Depletion (min) |
Amps |
| 1/16 in |
21.1 |
100 |
*Actual results may vary due to factors such as, but not limited to: welding conditions, machine parameters, material properties, operator technique, and/or battery lifecycle
SHIPPING DIMENSIONS
|
| Height: |
14.00 Inches |
| Width: |
11.00 Inches |
| Length: |
20.00 Inches |
| Weight: |
33 Lb(s) 0 Oz |
