Stick Welding
TIG Welding
1 or 3-Phase Input
3-Year Power Warranty

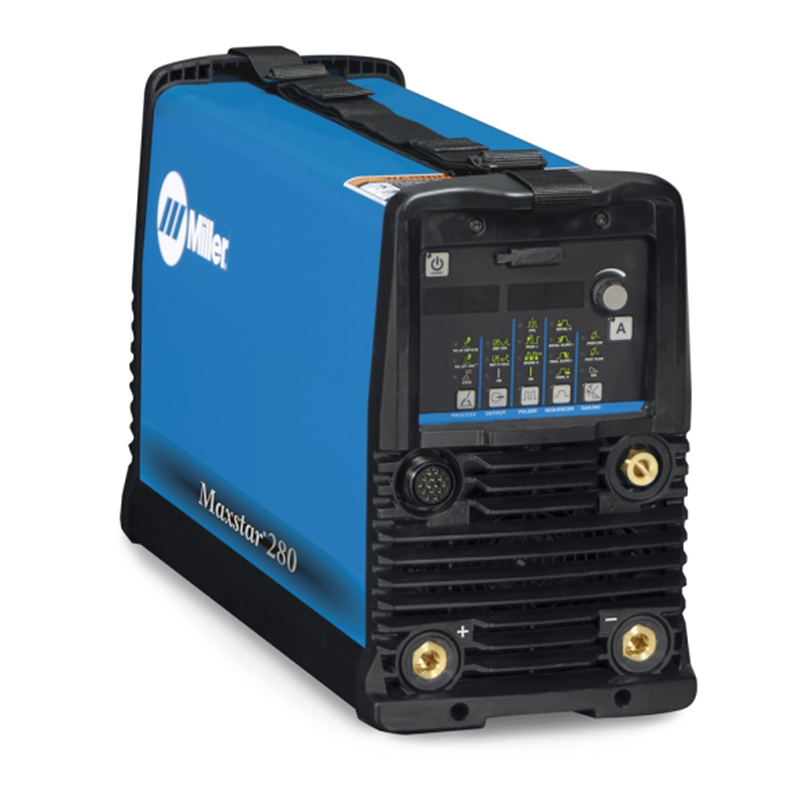

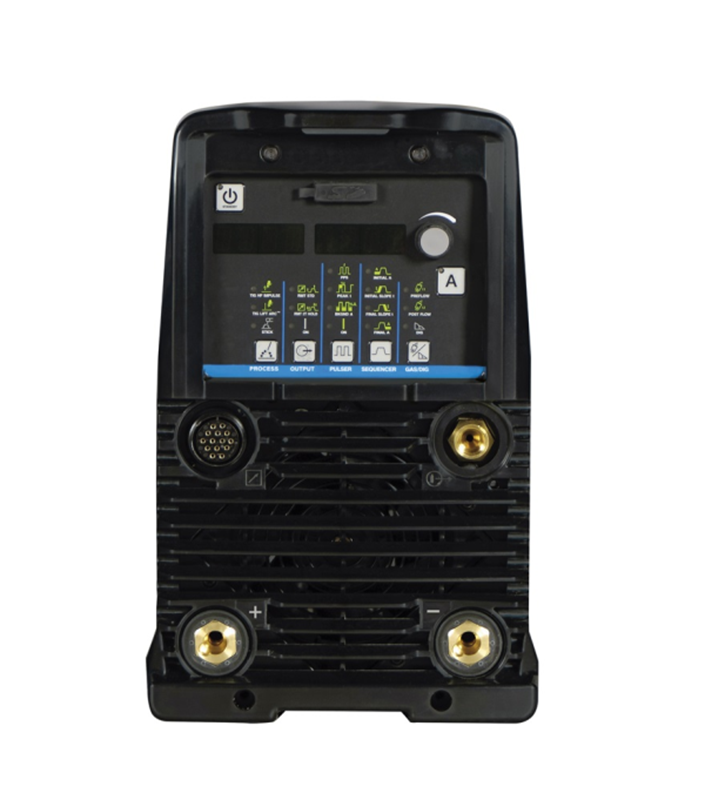

Maxstar® 280 DX 208-575 V

The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 47 pounds, it can weld up to 3/8" thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Base and Deluxe Models Available - Maxstar 280 - Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. Maxstar 280 DX - The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.

Portable with adjustable shoulder strap - Weighing in at just 47 pounds, the Maxstar 280 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.

Upgradeable and Expandable - Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.

Cooler Power Supply (CPS) - An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Maxstar also activates the receptacle to help prevent torch failure. Available on select models.

Auto-Line Power Management Technology - Allows hookup to either single-phase or three-phase electrical input from 208-575 V with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.

Pro-Set Feature (professional settings) - This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.

Weldcraft® W-280 (WP-280) TIG Torch - Two-piece torch head and exclusive Super Cool™ Technology provides additional surface area to increase cooling efficiency and capacity Torch body includes an anti-rotation feature and multi-position locking to prevent handle movement during welding and improve operator control Mechanical fittings provide a secure gas and water connection to prevent leakage and allow easy hose replacement
