Name: Prism® Circulator w/ Nano Filter (575V) #K5140-5
Brand: Lincoln Electric
SKU: LINK5140-5

575V Input
3-Phase Input
4000 SCFM
4 Nano Filters
Lincoln Electric 3-Year Warranty

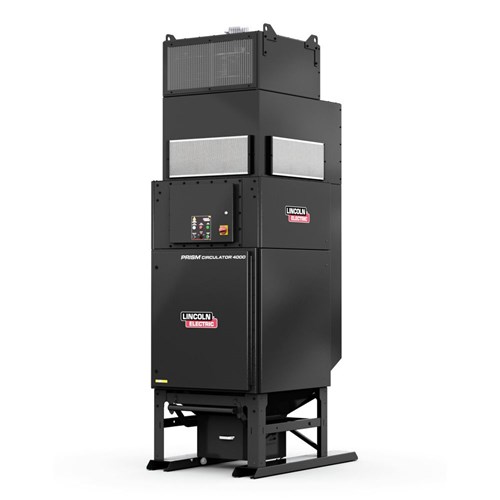

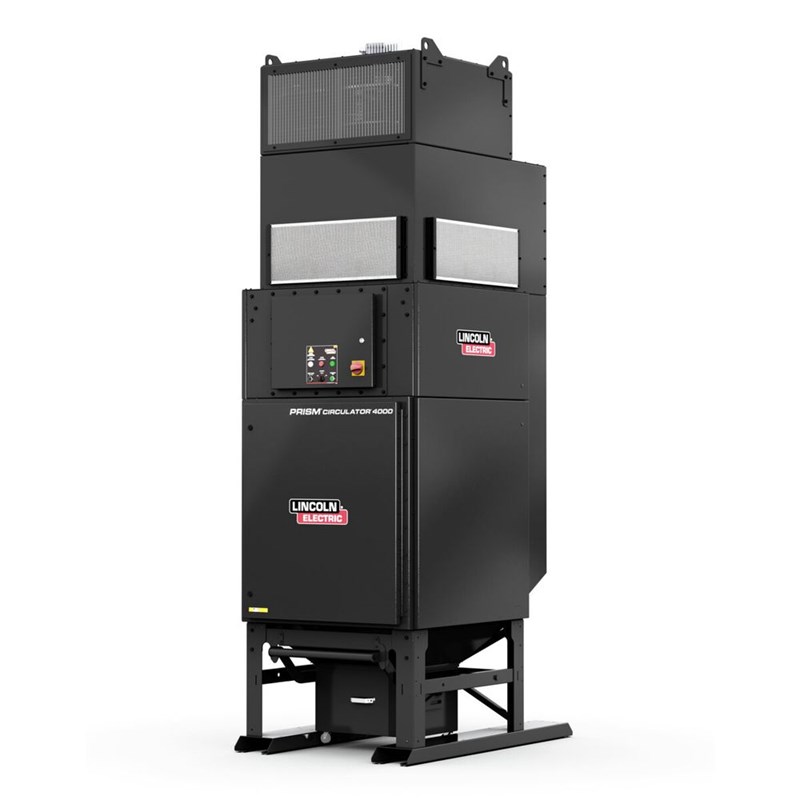

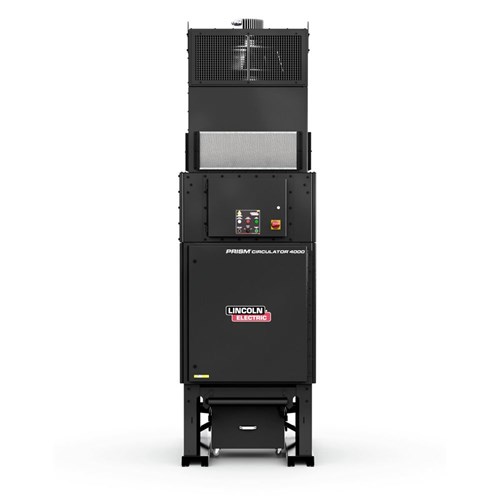

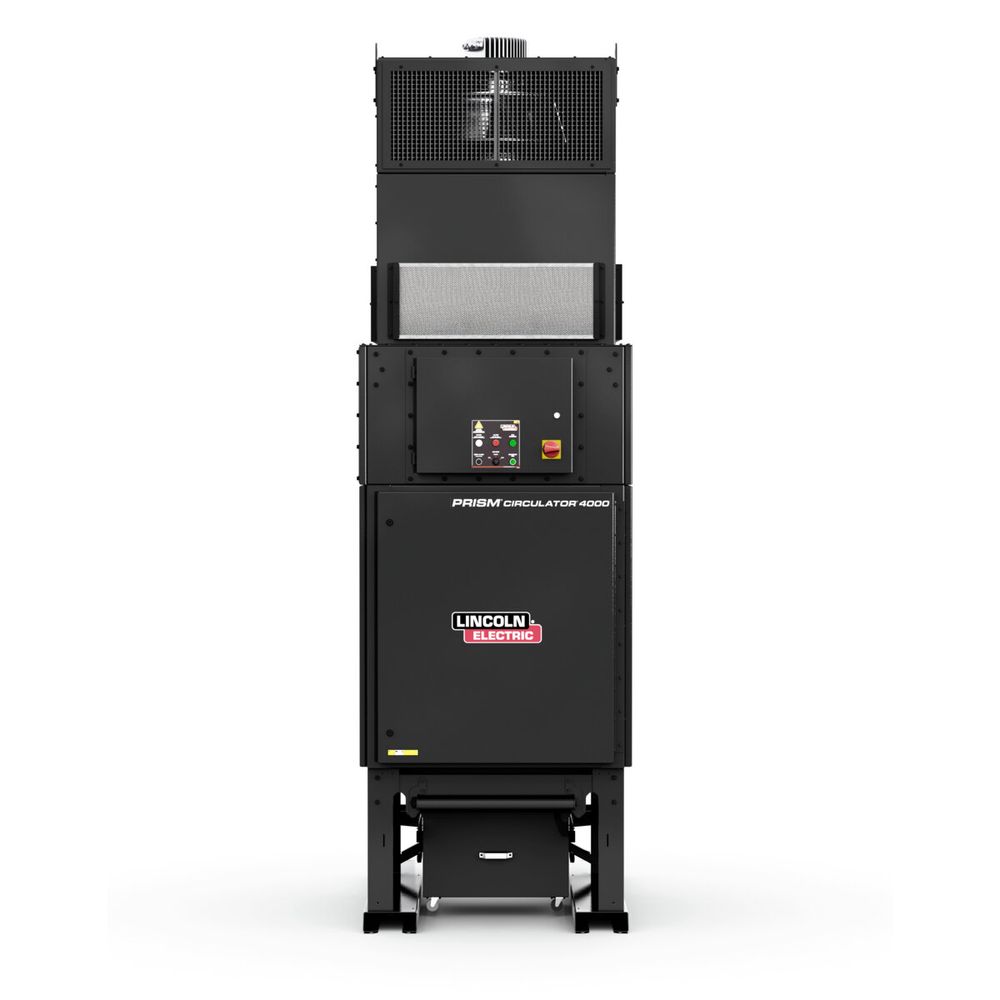

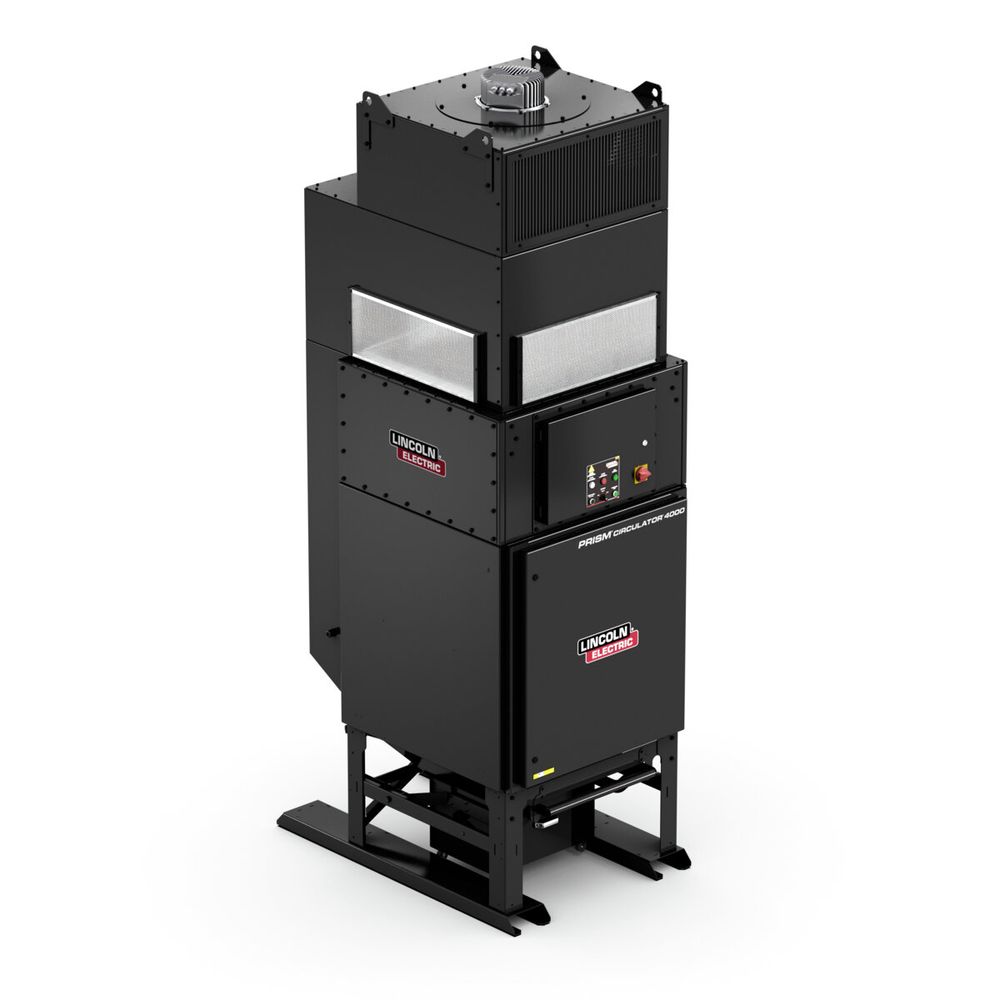

Lincoln Electric Prism® Circulator High-Flow Air Filtration System with PTFE Filter (575V) #K5140-5

The Lincoln Electric Prism® Circulator is a sophisticated air filtration crafted to efficiently remove welding fumes in settings where installing additional ductwork is impractical.

This robust unit circulates and filters the surrounding air, offering an effective solution for both expansive and compact workshop environments.

Highlights

4000 SCFM high airflow capacity
Filters 40,000 cu. ft. of ambient air every 10 minutes
Nano filter for standard (non-oily) particulate capture
Easy transport and 1-hour installation
575V power input

Industries

Manufacturing
Fabrication Shops
Welding Schools
Maintenance Facilities
Shipyards

What’s Included

Lincoln Electric Prism® Circulator unit
Nano filter
Operator’s manual
Limited warranty documentation

Benefits of the Lincoln Electric Prism® Circulator

Improves air quality without the need for additional ductwork
Highly efficient Nano filter captures ultra-fine welding particulates
Portable design allows for flexible placement in various shop layouts
Quick setup reduces downtime during installation
Helps maintain compliance with air quality regulations
Reduces overall facility maintenance by minimizing fume buildup
575V input for compatibility with industrial power systems

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all fume extractors or explore Lincoln Electric welding supplies at the best prices online.

General

Product Type	Plug and Play
Style	Circulator
Motor Power (HP)	7.5 EC Motor
Protection Class Fan Motor	IP55
Input Current (Amps)	9
Input Hertz	60
Input Phase	3
Input Voltage	575
Duty Cycle	100%
Sound Level	72 db
Air Flow	4000 SCFM @ 6.5 IN WG
Filtration	(4) KP4519-2 Nano Filters
Filter Area sq ft (sq m)	1280 (118)
Filter Type (MERV Rating)	MERV 16
Type of Cleaning	Pulse Jet
High Vac or Low Vac	Low Vac
Minimum Temperature F(C)	-4(-20)
Maximum Temperature F(C)	113(45)
