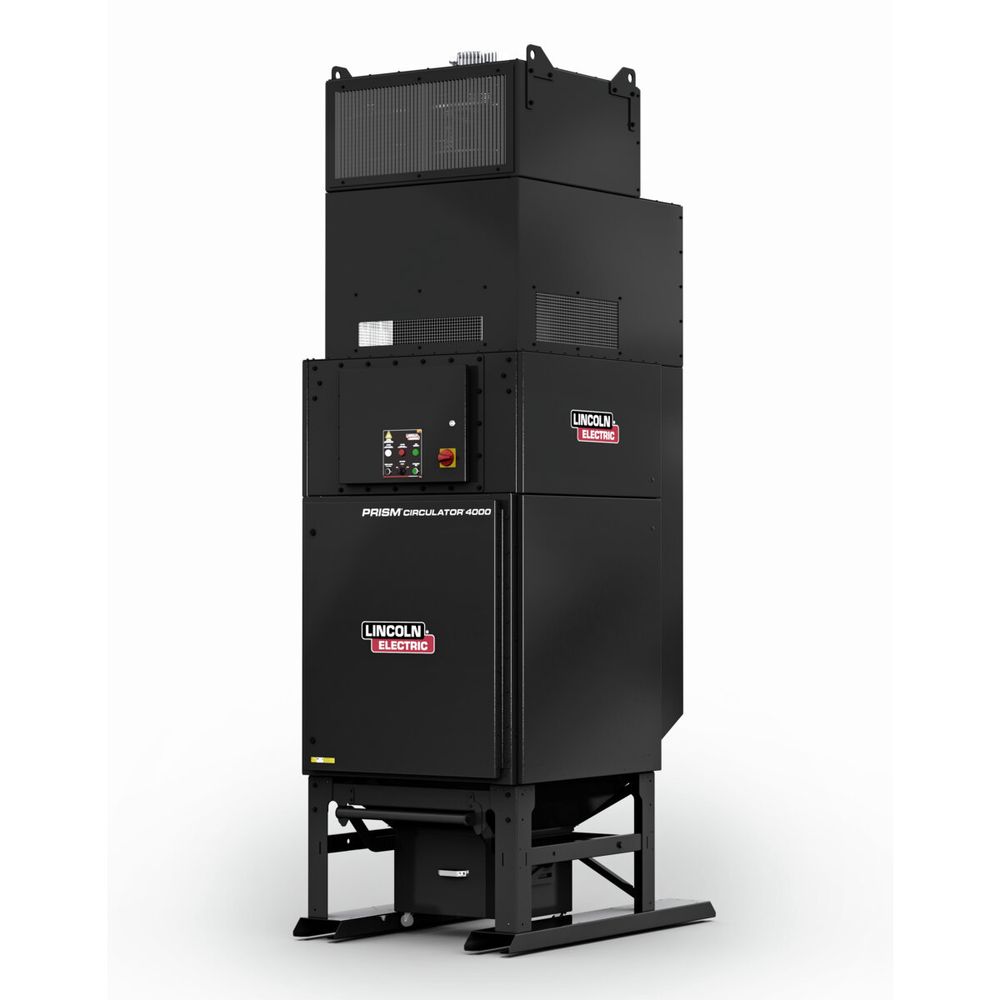

Name: Prism® Circulator w/ Nano Filter (480V) #K5140-1
Brand: Lincoln Electric
SKU: LINK5140-1

480V Input
3-Phase Input
4000 SCFM
4 Nano Filters
Lincoln Electric 3-Year Warranty

Lincoln Prism® Circulator 480V Input Nano Filter Air Filtration System #K5140-1

The Lincoln Electric Prism® Circulator with a 480V input and Nano Filter provides an efficient solution for facilities requiring high-volume air filtration without the need for ductwork.

With its 4000 SCFM output, this unit effectively filters 40,000 cu. ft. of air every 10 minutes, ensuring a clean working environment in large or small shop settings.

It’s portable and easy to install within just one hour.

Highlights

4000 SCFM high airflow capacity
Filters 40,000 cu. ft. of ambient air every 10 minutes
Nano filter for standard (non-oily) particulate capture
Easy transport and 1-hour installation
460V power input

Industries

Automotive Manufacturing
Metal Fabrication
Aerospace
Heavy Equipment Production
Shipbuilding

What’s Included

(1) Prism Circulator (480 V)
(4) KP4519-2 MERV 16 Nano Filters

Benefits of the Lincoln Electric Prism® Circulator

Improves air quality by continuously filtering ambient air
Portable design makes it easy to transport between areas
No need for complex ductwork installations
High-efficiency filtration with Nano Filter technology
Suitable for both small and large shop environments

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all fume extractors or explore Lincoln Electric welding supplies at the best prices online.

General

Product Type	Plug and Play
Style	Circulator
Motor Power (HP)	7.5 EC Motor
Protection Class Fan Motor	IP55
Input Current (Amps)	9
Input Hertz	60
Input Phase	3
Input Voltage	460
Duty Cycle	100%
Sound Level	72 db
Air Flow	4000 SCFM @ 6.5 IN WG
Filtration	(4) KP4519-2 Nano Filters
Filter Area sq ft (sq m)	1280 (118)
Filter Type (MERV Rating)	MERV 16
Type of Cleaning	Pulse Jet
High Vac or Low Vac	Low Vac
Minimum Temperature F(C)	-4(-20)
Maximum Temperature F(C)	113(45)
