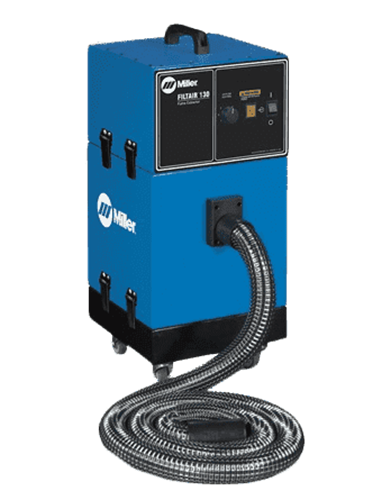

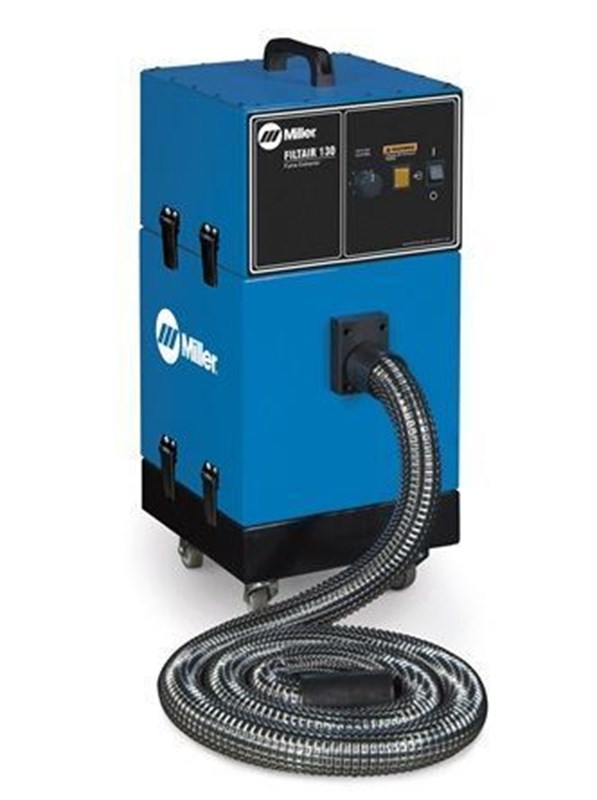

Miller FILTAIR 130 Portable Fume Extractor #300595
Breathe easier knowing you've found the best price on Miller's FILTAIR 130!
Welders Supply brings you this incredible Miller FILTAIR 130 Portable Fume Extractor 300595 for welding tables. Fume extractors are made to keep smoke out of your work area when welding. Use this powerful machine for MIG, TIG, Stick and Flux welding applications. A one horsepower motor helps the vacuum operate efficiently. Our Miller FILTAIR extractors are designed with durability to perform better than the average brand. This extractor features an extra-long filter life and fume collection particulate tray to minimize maintenance. An indicator light alerts you whenever the filter needs cleaning or replacement. The FILTAIR brand extractor also features 70% less noise disturbance than many other brands. This quietly operating motor enables worker communication, leading to increased productivity. We recommend using the Miller FILTAIR 130 Portable Fume Extractor 300595 for construction, fabrication, mechanical work and in-plant maintenance. Welders Supply is offering this high-quality Miller FILTAIR 130 Portable Fume Extractor 300595 at an unbeatable price.
Processes:
- MIG (GMAW)
- TIG (GTAW)
- Stick (SMAW)
- Flux Cored (FCAW)
Applications
- Construction
- Fabrication
- In-Plant Maintenance and Repair
- Mechanical Contracting
Shop all fume extractors, welding safety equipment, and welding equipment.
Miller FILTAIR130 Portable Fume Extractor - Part 300595
General Specifications
Input Power |
120 VAC/1-Ph/60 Hz at 11 A |
Net Weight |
46 lb (92 kg) |
Dimensions |
H: 23 in (584 mm) W: 12 in (305mm) D: 12 in (305 mm) |
Filter Media |
16 square feet (1.49 square meters) |
Nominal Airflow |
Accu-Rated, 132 CFM (62L/sec) |
Sound Level |
68.5 dBA at 5 ft (1.5 m) |
Motor |
1 HP |
Number of Filters |
1 filter cartridge |
Shop all fume extractors and welding safety equipment.
SHIPPING DIMENSIONS |
|
Height: | 32.00 Inches |
Width: | 17.00 Inches |
Length: | 17.00 Inches |
Weight: | 62 Lb(s) 11 Oz |
Shop all fume extractors and welding safety equipment.
Consumables
Product Questions and Answers

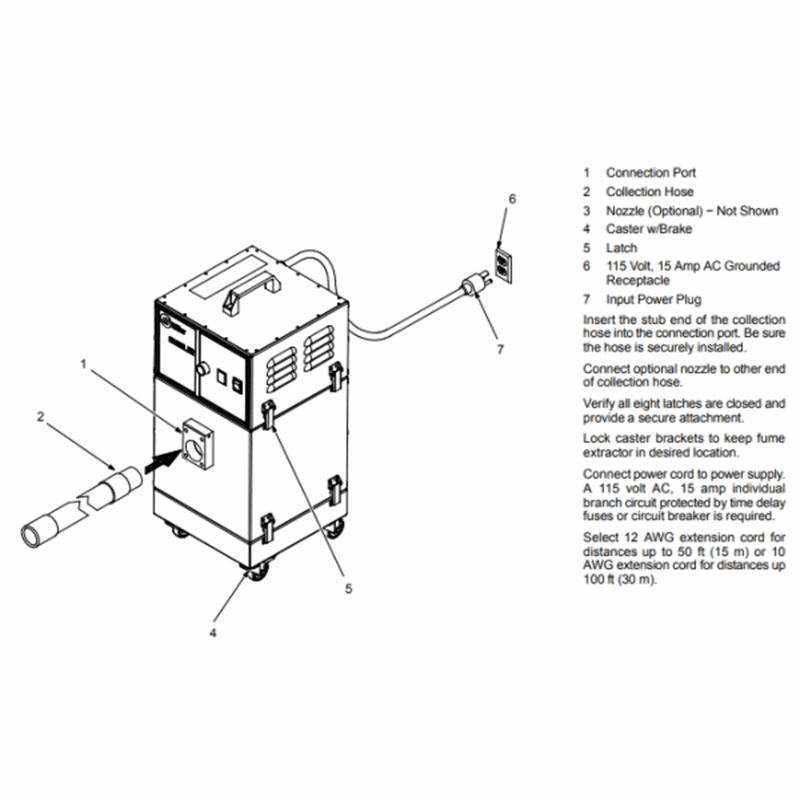

How to prepare for unit operation:
- Insert collection hose to connection port.
Insert the stub end of the collection hose into the connection port. Be sure the hose is securely installed.
- Connect optional nozzle.
Connect optional nozzle to other end of collection hose.
- Verify latches are closed.
Verify all eight latches are closed and provide a secure attachment.
- Lock caster brackets.
Lock caster brackets to keep fume extractor in desired location.
- Connect power cord.
Connect power cord to power supply.
