Ships Free To Lower 48 States
Ace Welding Fume Extractor Part #73-201 HEPA
Part Number: 73-201 HEPA
$1,890.00
Documents
Videos
MIG Process
2-Year Limited Warranty
Single Phase

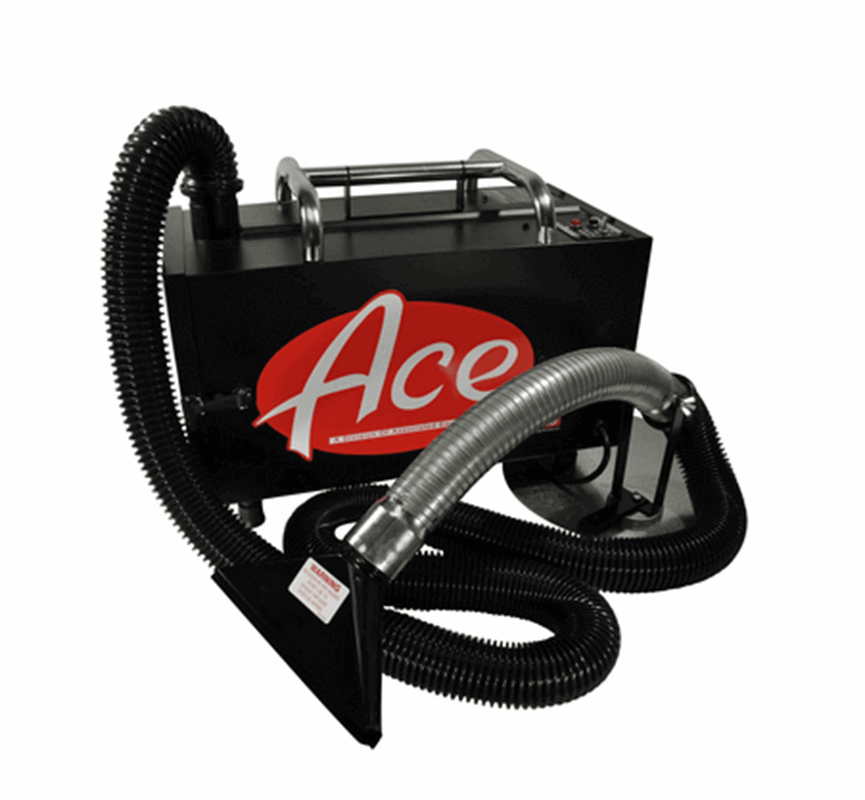

Ace Welding Fume Extractor #73-201 HEPA

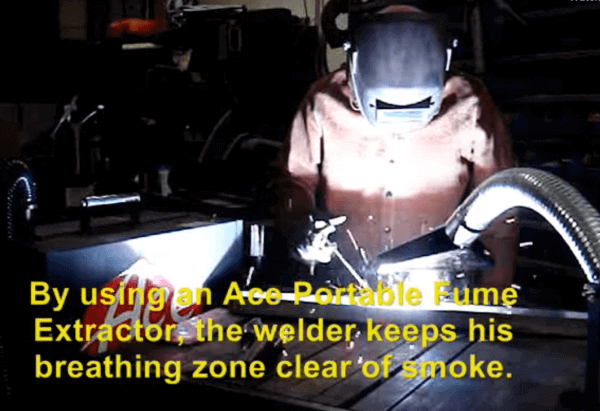

This Ace Welding Fume Extractor 73-201-HEPA is a crucial component to ensuring welding safety. This fume extractor keeps your working area smoke free letting you easily breathe. Built with a compact design, the 73-201 HEPA Ace extractor features a 113/266 CFM filter capacity. It contains a built in spark trap and 95% efficiency filter for fire safety. This unit accommodates to nine filter combinations for many welding applications. Use this fume extractor for light to medium intensity welding jobs. You can even connect a MIG extraction gun for lighter MIG work. Our Ace Welding Fume Extractors are incredibly lightweight and easy to carry. We recommend using this Ace Welding Fume Extractor for both field work and bench work. Our Ace Fume Extractors come with LED light indicators letting you know when filters need to be changed. Refer to our brochures below for more detailed information on assembly and operation and order today!
Ace Welding Fume Extractor Features:
- 113/226 CFM high vacuum fume extraction and filter capacity
- Designed for field and bench work, this unit is lightweght, portable, and easy to use
- Unit accomodates 9 different filtering combinations for maximum flexibility in all types of applications
- 73-201-HEPA: HEPA filter for Hexavalent Chromium control
- Built in spark trap for fire safety
- LED filter status light alerts operator to the need for filter change
- Includes 10 foot extraction hose (extra lengths can be added) with flexible nozzle assembly
- Also includes magnetic support base for hands free operation
- May be direct connected to MIG extraction gun with optional adapter
- Optional two-operator adapter increases use and flexibility
- Heavy Duty steel cabinet will withstand rugged daily use
- UL Listed
- Made in USA
- Dimensions: 24"L x 17"H x 12"W
- Weight: 58 pounds (with filters installed)
Shop all our great quality welding safety equipment including fume extractors and hearing protection.
Ace Welding Fume Extractor Part# 73-201 HEPA Specs |
|---|
|
Consumables
Product Questions and Answers
Q - Can this be connected to a MIG extraction gun?
A - Yes, there's an optional adapter for this.
Q - What is the DB rating?
A - 5 ft of 84 on high and 5 ft of 79 on low.
Q - Are the filters washable?
A - The paper pre filter that comes with it isn't. There is an aluminum mesh pre filter replacement that can be washed. This filter should be used for metal machining fumes and smoke.
