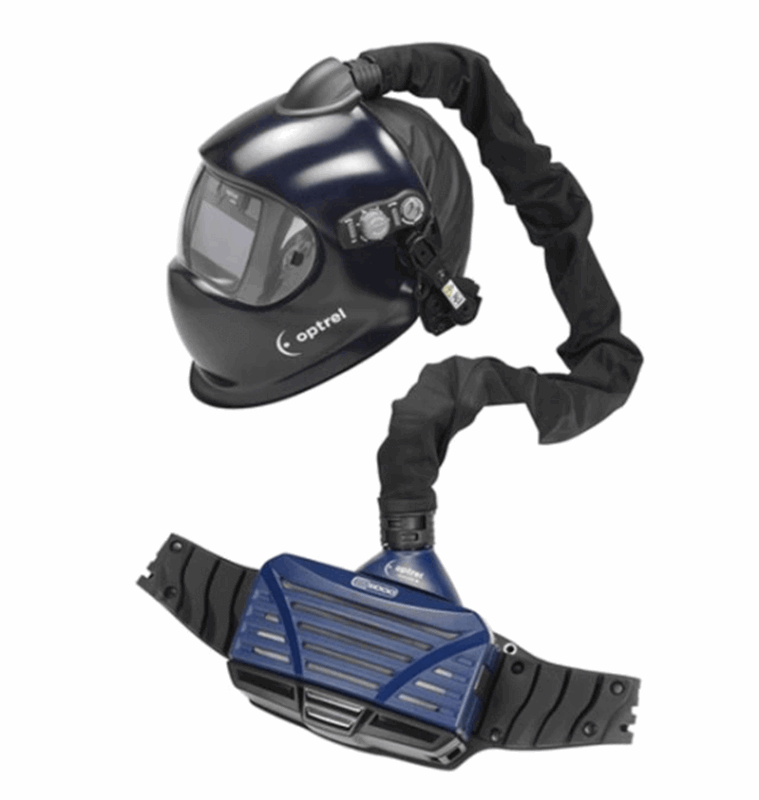

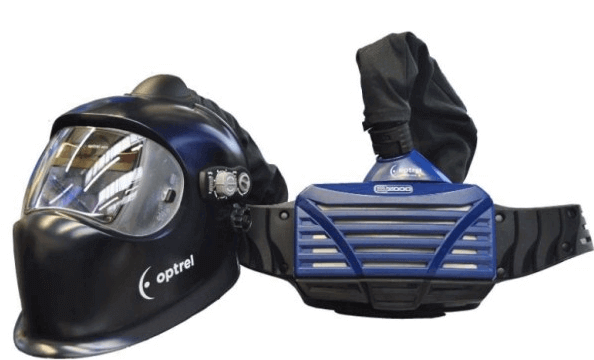

Optrel e684 Welding Helmet w/ e3000X PAPR 4550.465

Optrel e684 Welding Helmet w/ e3000X PAPR 4550.465

As a welder, you are the top athlete among the craftsmen. Smoke, changing light conditions, and heat characterize the hard everyday work. Then there is the great responsibility. A faulty weld seam can, under certain circumstances, be a matter of life and death. That is why a perfect welding helmet is all the more important. This makes welding work safer, more efficient, more precise, and more comfortable. Only the best is good enough for that. Don't settle for less.

The Optrel e684 is the perfect welding protection when it comes to joining aluminum, chrome-nickel alloys, special metals, and steel. Thanks to the continuously stepless protection level range from protection level 5 to protection level 13, the optrel e684 is particularly suitable for gas welding and cutting, for microplasma and TIG / TIG welding applications as well as for most other arc welding processes. The Optrel e684 is your loyal partner especially in the application areas of vehicle and rail vehicle construction, chemical, container, machine, and plant construction, pipeline construction, and shipbuilding.

Experience the difference.

• Automatic shade level setting (autopilot)
• Shade level range 4/5 to 13
• Ultra HD quality with true color vision and classification 1/1/1/1
• Expandable with breathing protection system

Protection level: automatic. Colors: true to life. Comfort: all-inclusive.

Perfect view when welding - only Optrel can do that:

• Fully automatic adaptation of the protection level to each welding process in the protection level range 5 to 13.
• Color-fast view in the entire protection level range.
• Ultra-HD quality of classes 1/1/1/1

The adaptive protection level regulation automatically sets the suitable protection level in the range 5 to 13. This is ensured by an additional brightness sensor that measures the intensity of the welding arc. So you always stay perfectly protected, regardless of the parameters you are currently welding with. Manual adjustments are no longer necessary. But of course possible at the push of a button.

* The autopilot can be switched off if necessary and the protection level can be set manually.

The fully automatic machine with Ultra HD quality.

Color-true view

A specially developed UV / IR filter enables the realistic color perception typical of Optrel and brings colors into the world of the welder.

4 times absolute top marks

The glare protection cassette of the Optrel e684 proves the highest standard in all 4 classifications for assessing the image quality:

• Optical class: class 1
• Scattered light: class 1
• Homogeneity: class 1
• Viewing angle dependency: class 1

The extremely good viewing angle dependence shows the quality of the Optrel anti-glare cassette and makes working with the Optrel e684 so pleasant.

For maximum comfort when welding:

• Integrated particle filter of the highest class (TH3)
• Reliably protects against smoke, aerosol, and dust

Fields of Application:

• Electrode welding (stick welding, SMAW)
• MIG, MAG (gas-shielded metal welding, GMAW)
• GMAW high-performance welding
• Cored wire welding
• TIG welding (TIG, GTAW)
• Plasma welding
• Microplasma welding
• Plasma cutting

Optrel e684 Welding Helmet

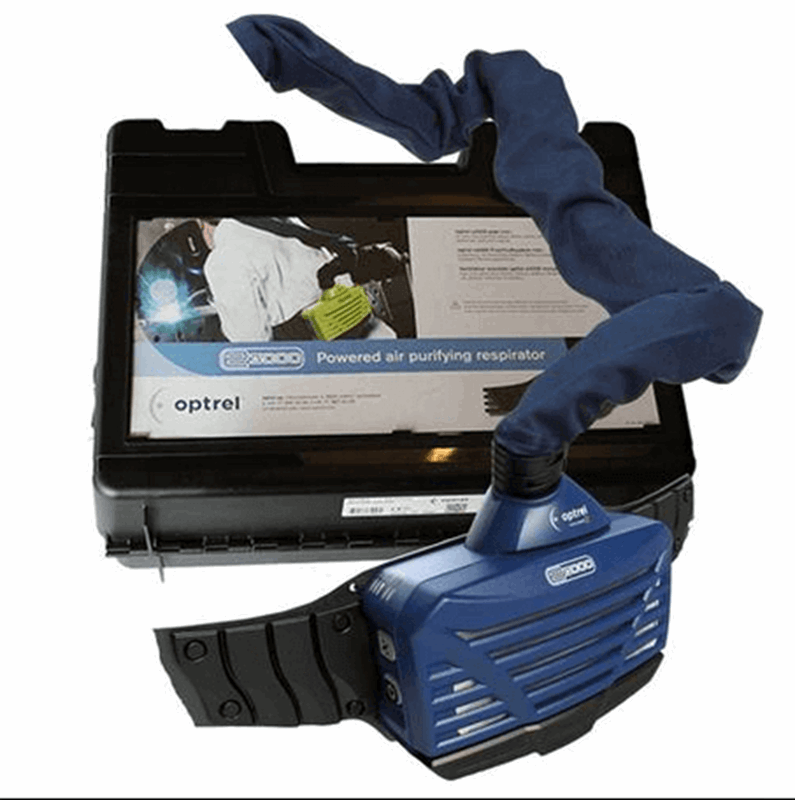

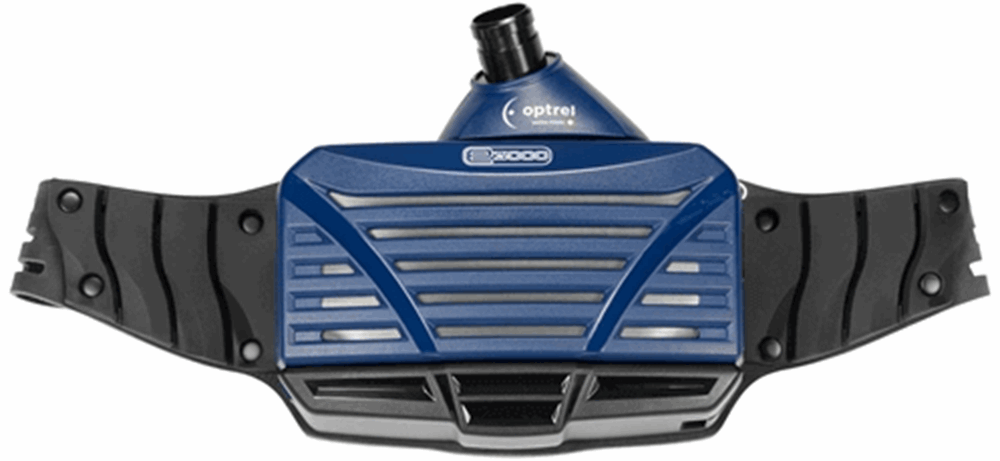

Optrel e3000X PAPR

• Optrel e684 Welding Helmet Specifications PDF
• Optrel e3000X Manual
