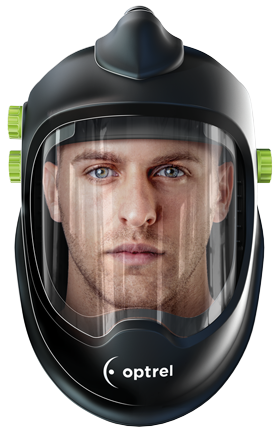

Optrel e3000X PAPR w/ Clearmaxx Grinding Helmet 4900.251
Clear View. Clear air.
- More comfort
- More air
- More visibility
Welcome to the comfort zone.

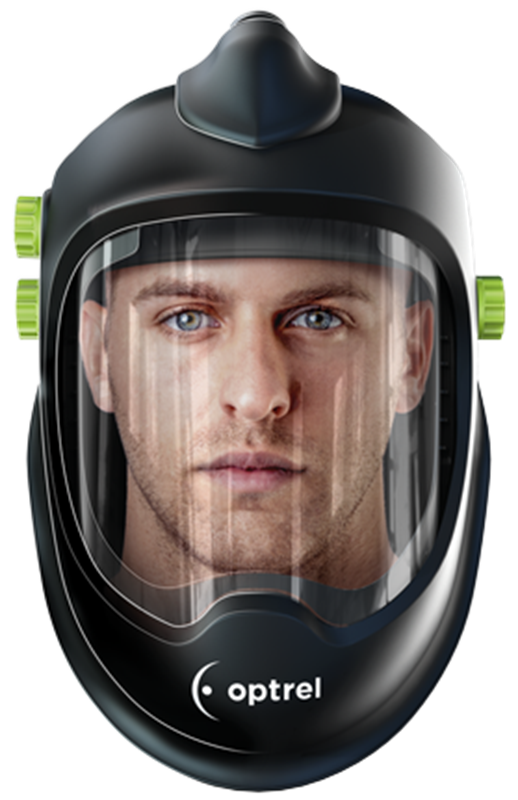

An unlimited clear view of your workspace, filtered, and clear air with adjustable air distribution make the Clearmaxx the unique face and respiratory protection system with the highest safety level.

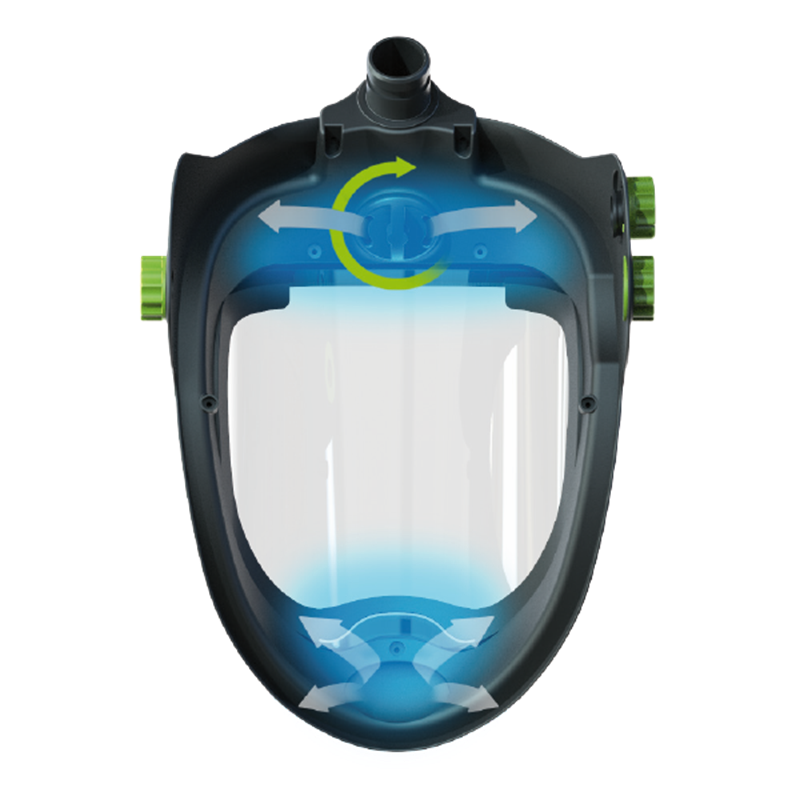

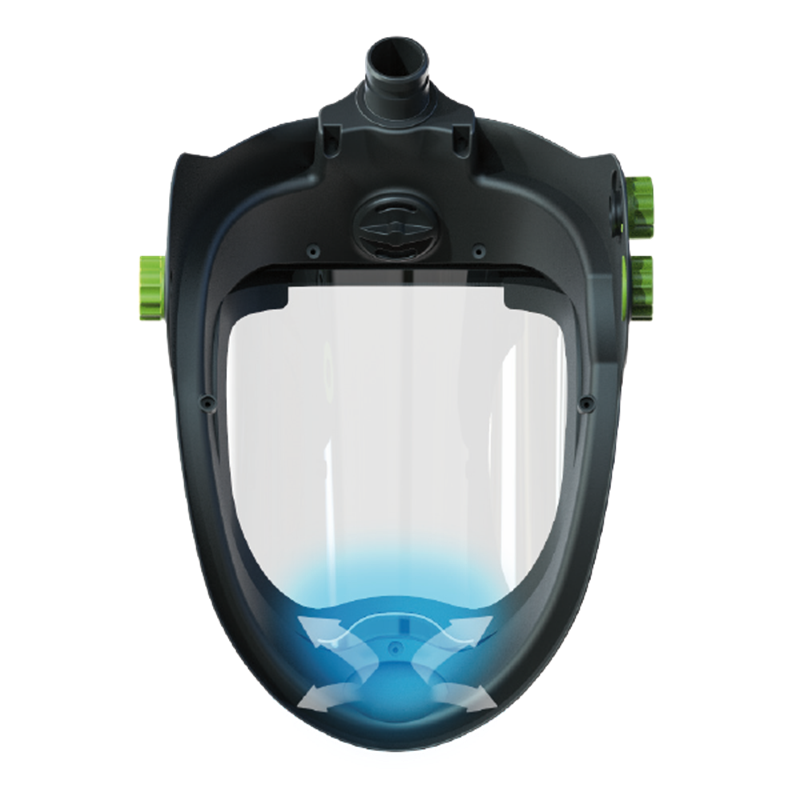

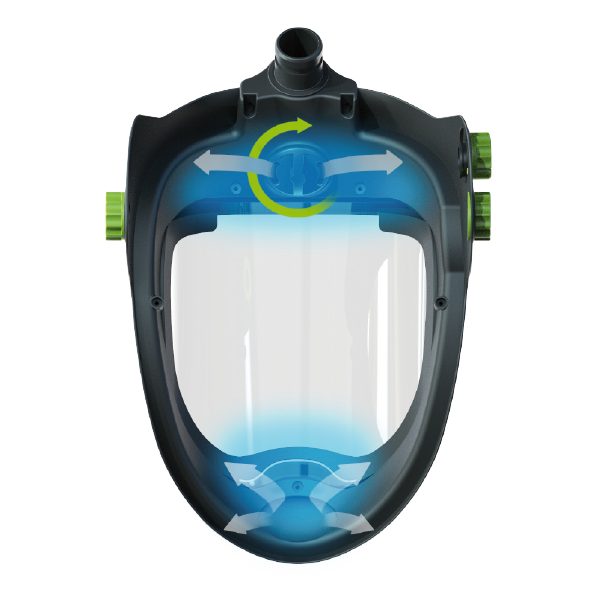

Adjustable air distribution:
A rotary switch can be used to feed 20% of the air cooling the forehead area. Direct air draft crossing the eyes leading to dry eyes is avoided by the air distribution system.
Multi-function system

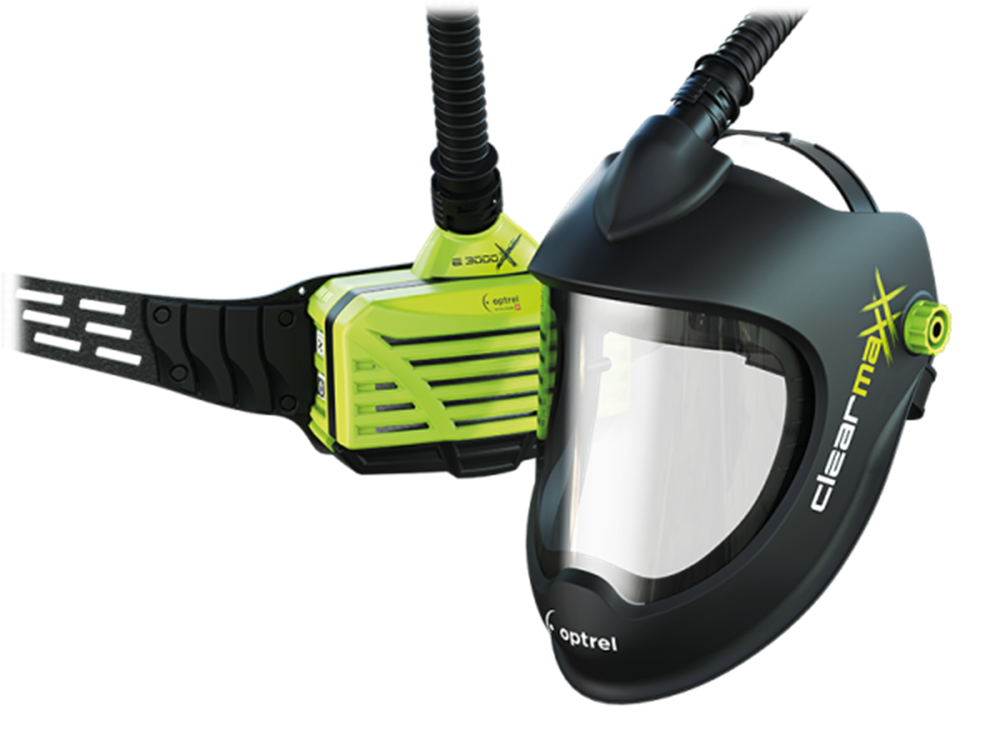

Combining it with the Optrel e3000 PAPR system with mountain breeze filter the Clearmaxx becomes the perfect buddy on countless types of work. The easy-to-change DIN5 front cover lens expands the system to the perfect protector for efficient plasma cutting.
Wearing comfort
Thanks to a minimized weight of only 330 g (PAPR version: 495 g) and an ergonomic fit the Clearmaxx sets new benchmarks in wearing comfort.
Always a great view when protecting your face.
Ideal for:
- grinding
- metal industry
- landfills
- agriculture
- food industry
- woodworking
For Maximum of Comfort at Welding:
- Integrated Particle Filter of the highest Safety Class (TH3)
- Protects reliably from Smoke, Aerosols, and Dust
Check out more Optrel welding equipment or contact Welders Supply to find the right welding helmet.
This product replaces these legacy models:
Fields of Application:
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Grind Mode

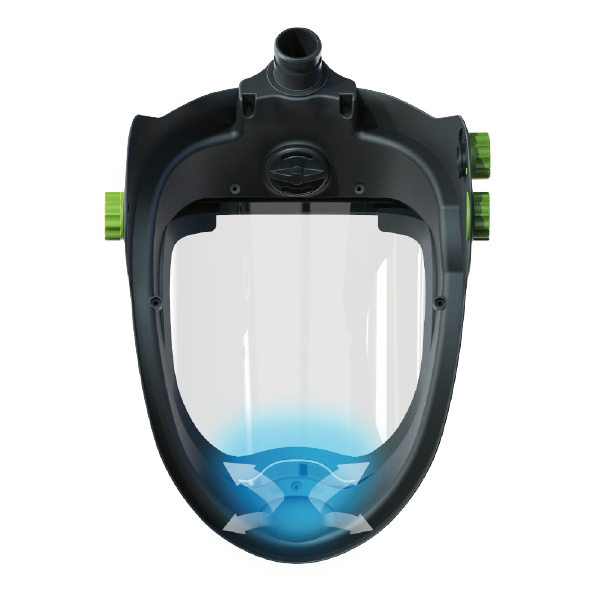

Optrel Clearmaxx Welding Helmet
Classification |
EN166 Optical class = 1
EN175 Mechanical strength = BT |
---|---|
Shape stability |
Grinding mask up to 220°C / 428°F
Front cover lens up to 137°C / 279°F |
Colour |
black unpainted
|
Operating temperature |
-10°C to + 70°C / 14°F to 158°F
|
Storage temperature |
-20°C to + 80°C / -4°F to 176°F
|
Weight |
334g / 11,782 oz
|
Standards |
Grinding helmet:
EN 166 / EN 175 / EN 12941:1998 TH3 / complies with CSA Z94.3, ANSI OS Z87+, EAC PAPR helmet EN 166 / EN 169 / EN 170 / EN 12941:1998 TH3 |
Scope of delivery |
clearmaxx helmet with clear polycarbonated front cover lens and instruction manual.
|
Warranty | 2 years from date of purchase for manufacturing and material defects. |

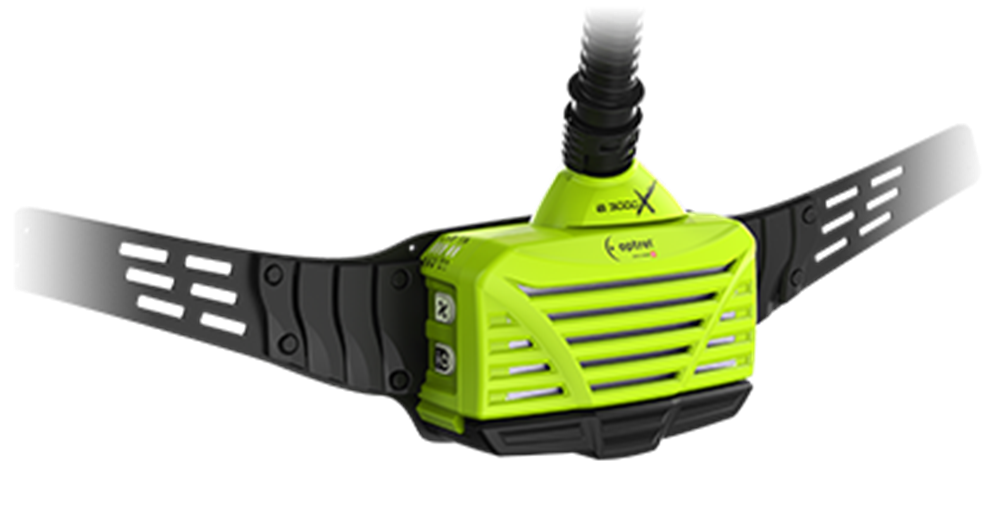

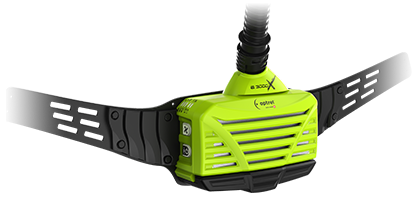

Optrel e3000X PAPR
Protection level |
TH3 (EN 12941)
|
---|---|
Air flow levels |
Level 1: min. 170 l/min
Level 2: min. 210 l/min Level 3: min. 240 l/min |
Fuse |
Electronic fuse
|
Sound level |
max. 70dbA
|
Dimensions |
222 x 213 x 92,6 mm (LxWxH)
|
Sensitivity |
Infinitely adjustable, now with “super high” sensitivity
|
Weight |
1560 g (incl. filter, belt and battery)
|
Color |
green
|
Filter type |
TH3P R SL filter for TH3P System (EU)
|
Hose length |
0.7 m (extensible up to 1.3 m)
|
Scope of delivery |
PAPR system with hose, battery, TH3P R SL filter, belt, charger, parking buddy, transport bag, manual
|
Warranty |
2 years on production and material, 6 months on battery
|
