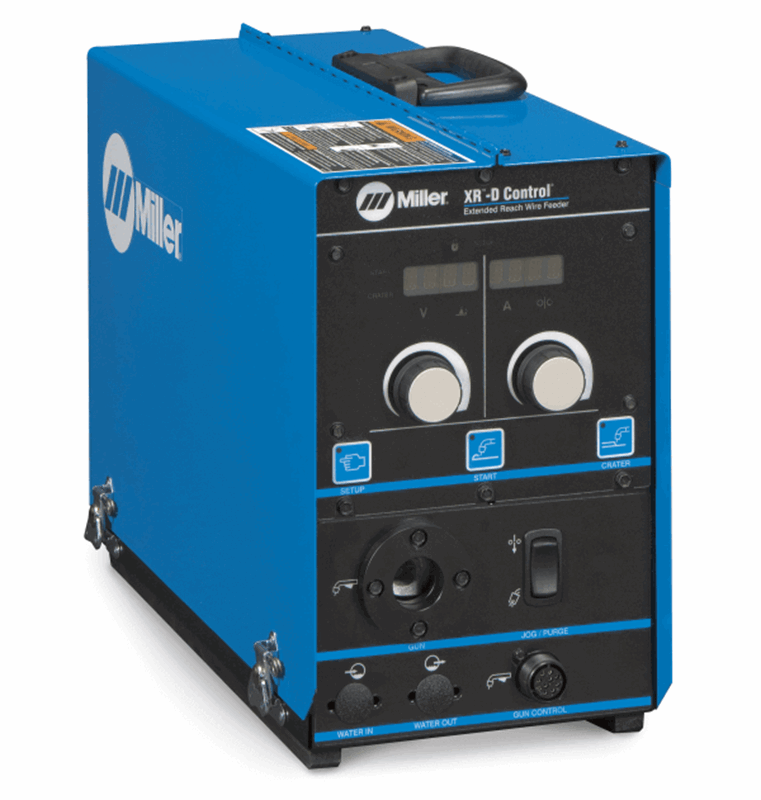

Miller XR-D Control #300687
Part Number: 300687
DocumentsMiller XR-D Control #300687
WHAT'S INCLUDED
- .035-3/64 U-GR drive rolls

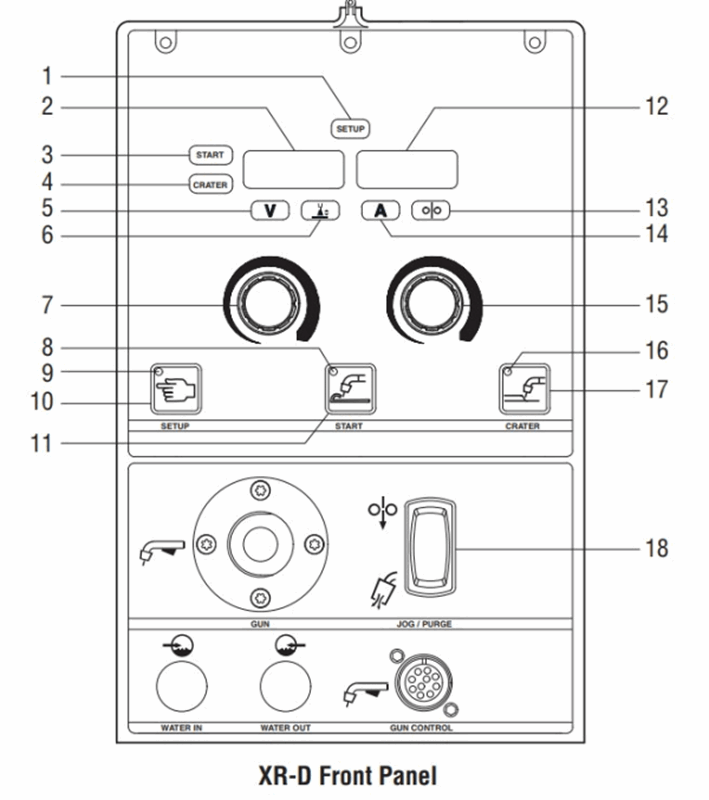

Programmable Weld Sequencing
Allows adjustments for preflow, postflow, start, and crater providing higher quality welds.
True Torque Feed Motor
Push-pull design provides continuous push force to the wire while the gun motor controls the speed at the gun. The motors work together to provide accurate and positive wire feed speed without wire shaving or deformation.
Trigger Hold
Reduce fatigue by allowing operators to weld without holding gun trigger.
Wire Jog Control
Allows wire to be threaded through gun cable without energizing weld output.

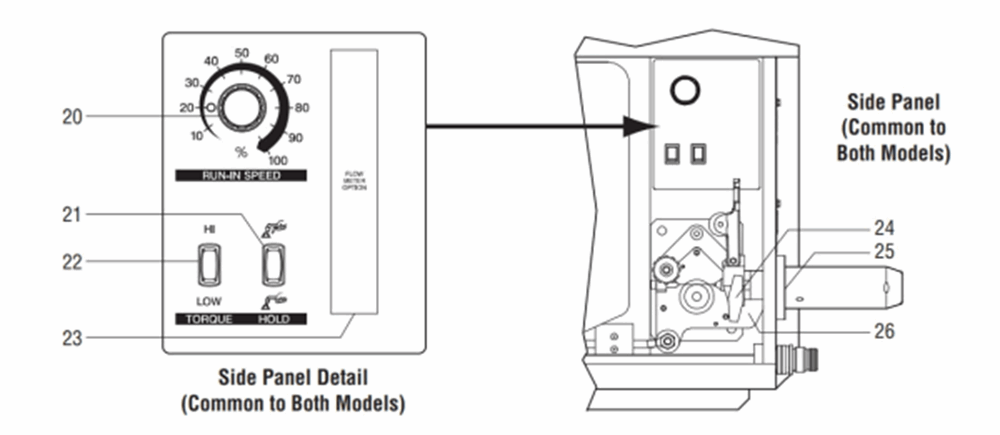

Adjustable Wire Run-in Control
Allows arc start fine tuning and reduces wire stubbing or arc flaring which can result in contact tip burnback.
Continue shopping and iew our entire vast selection of welding machines.
PROCESSES
- Aluminum Welding
GENERAL SPECIFICATIONS
| Title | XR™-D Control |
|---|---|
| Input Circuit Welding Rating | 400 A at 100% duty cycle |

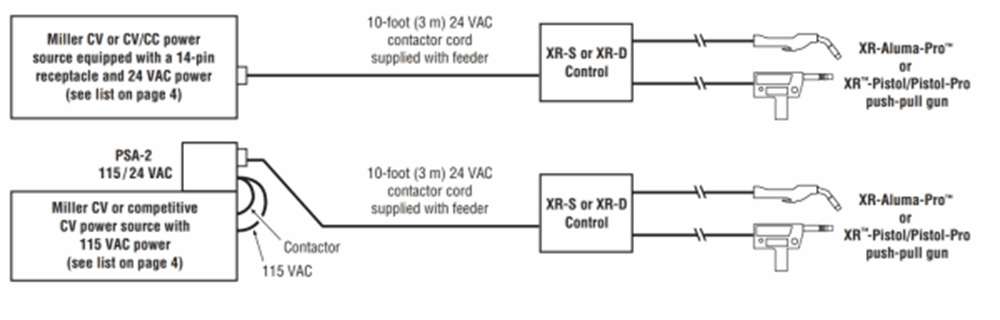

| Power Source Compatibility | CV |
| Spool Size | 12 in (305 mm) |
| Wire Feeder Type | Portable |
| Wire Feed Speed | 70 IPM - 900 IPM |
| Wire Diameter | Aluminum 0.03 in 0.062 in |
| Net Width | 9.5 in |
| Net Height | 16 in |
| Net Length | 21.25 in |
| Net Weight | 42.5 lbs |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 9.00 Inches |
| Width: | 16.00 Inches |
| Length: | 22.00 Inches |
| Weight: | 48 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - This has been replaced with a newer model, but do you have any of these in stock?
A - We occasionally have used XR-D models for sale. Check our "Used" section
Q - What is the difference between this and the XR-S?
A - The XR-D has the same features as the XR-S, but it adds a digital weld voltage display and a remote voltage control. It also has an improved programmable interface for preflow/postflow and the start and crater settings.
