Ships Free (Contiguous U.S.)

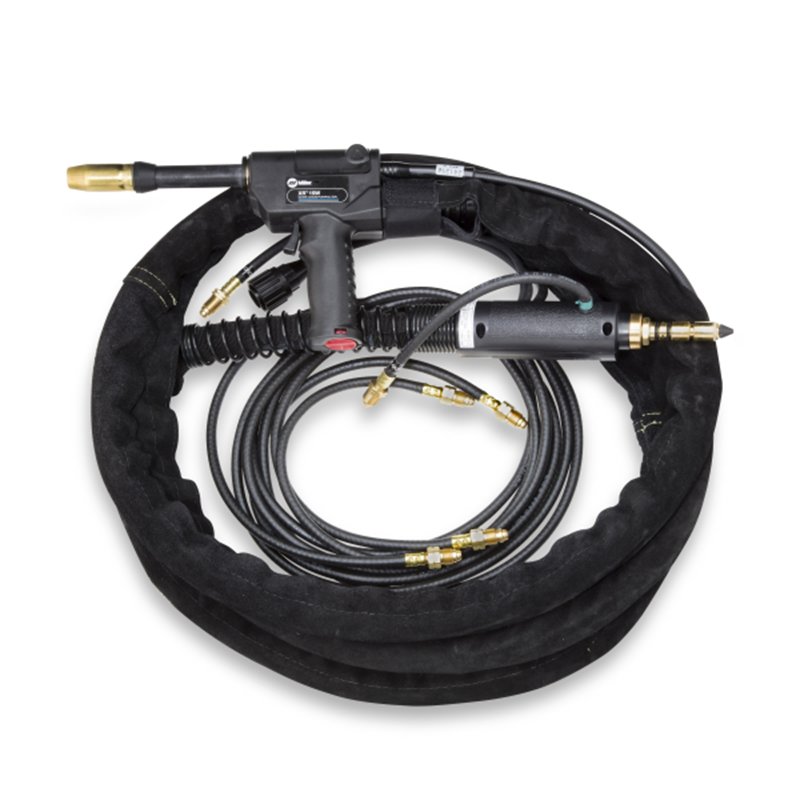

Miller XR™ Pistol 15 ft. Water-Cooled Push-Pull MIG Gun w/ Quick Disconnect #198129

Name: XR™ Pistol 15 ft. Water-Cooled Push-Pull Gun w/ Quick Disconnect #198129
Brand: Miller Electric
SKU: MIL198129

Part Number: 198129

UPC: 715959244701

$3,301.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Reliable, cost-effective gun for light- to medium industrial applications.

Features:

Heavy-duty Construction

All internal components are designed to provide long lasting performance and feeding precision.

Replaceable Feed Cable Liner

Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.

Trigger Hold

Reduce fatigue by allowing operators to weld without holding gun trigger. (Feature available when paired with XR-Control.)

Contact Tips

Accepts single-turn, quick-change FasTip™ and Bernard® Centerfire™ contact tips.

Multiple Configurations

Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

Complete Your System

XR-Pistol guns work in conjunction with XR-Control wire feeders to provide the best solution for push-pull applications.

Welding Output Rating	200 A at 100% Duty Cycle
Wire Diameter Capacity	.030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed	70 - 875 IPM (1.8 - 22.2 m/min)
Max Spool Size Capacity	4 in (102 mm)
Cable Length	15 ft (4.572 m)
Net Height	7.375 in. (187 mm)
Net Length	10.625 in. (269 mm)
Net Width	1.875 in. (47 mm)
Net Weight	2.4 lb (1.08 kg)
Processes	MIG (GMAW) with aluminum wire and other soft alloys Pulsed MIG (GMAW-P) with pulsing power source
Heavy Industrial Applications	High Purity Precessing Manufacturing Railcar Shipbuilding
Warranty	1 year - Miller's True Blue Warranty
