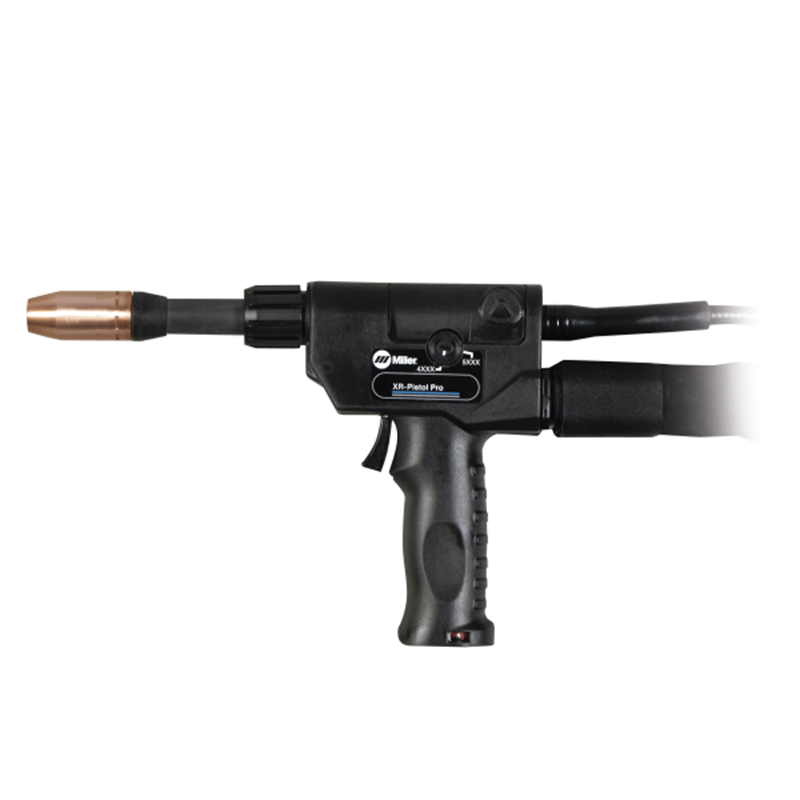

Miller XR-15A Pistol Pro, 15ft Air-Cooled Push-Pull MIG Gun #300782

Name: XR-15A Pistol Pro, 15ft Air-Cooled Push-Pull MIG Gun #300782
Brand: Miller Welding
SKU: 300782

Part Number: 300782

UPC: 715959556651

$3,169.00 + Free Shipping $3,169.00*

SAVE $0.00

Qualifies for IRS 179 Sale

Call 844-682-0205 or CHAT for more options

Exceptional aluminum welding results for heavy-industrial applications.

Features:

Most Durable Design

Durable motor and drive design improves feedability and arc consistency while helping reduce downtime and maintenance costs. All internal components are designed to provide long lasting performance and feeding precision.

Reduce Service Time

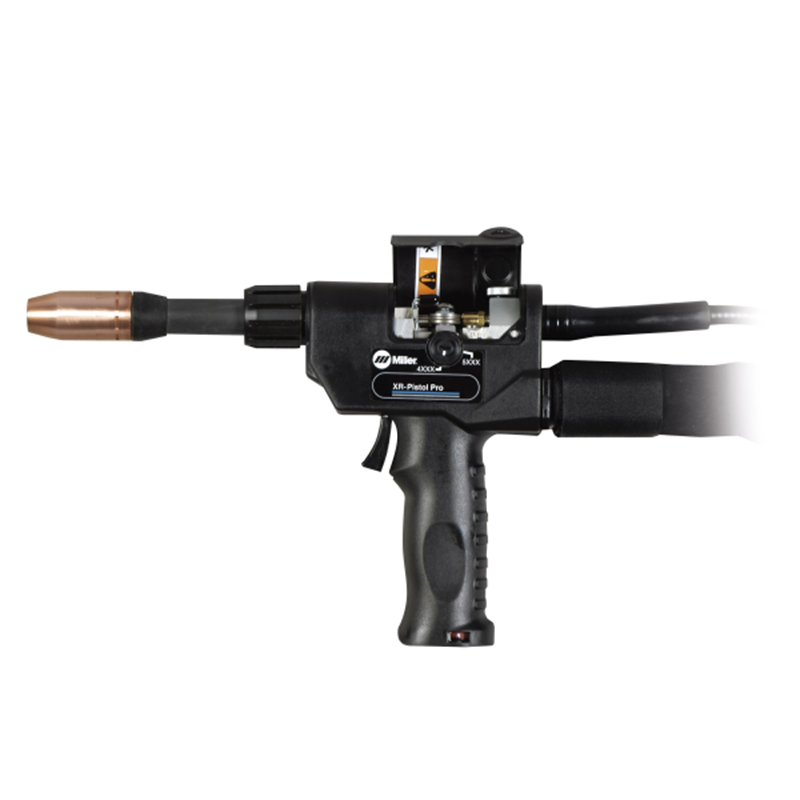

Easy access to drive assembly and removable toolless head tube reduce service time, by allowing a simple means of changing drive rolls and head tube — or performing routine maintenance without disassembling the gun.

Best Feeding Performance

Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.

Replaceable Feed Cable Liner

Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.

Multiple Configurations

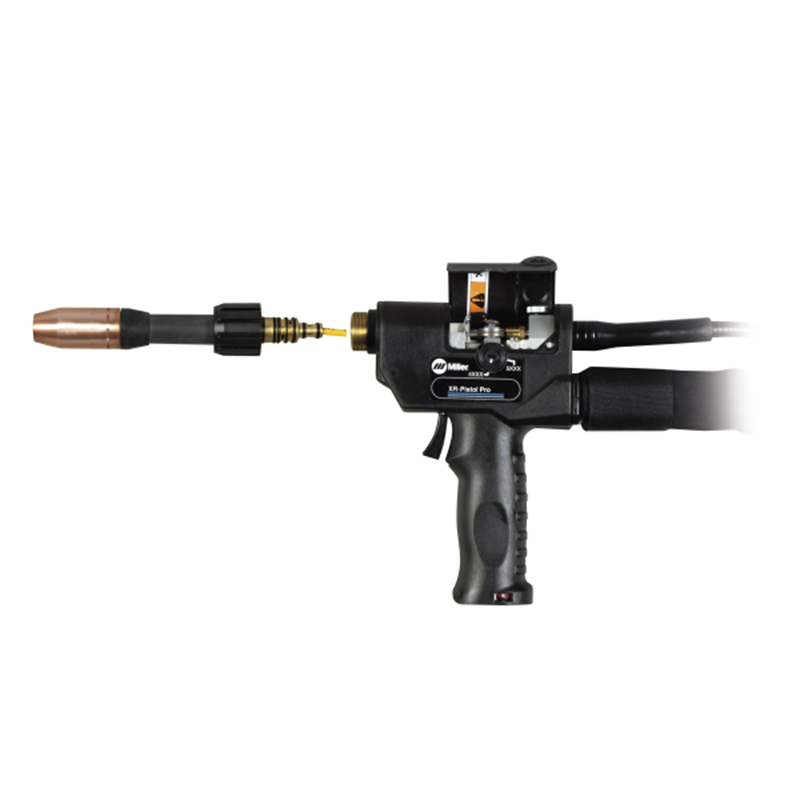

Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

Complete Your System

Welding Output Rating	200 A at 100% Duty Cycle
Wire Diameter Capacity	.030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed	70 - 900 IPM (1.8 - 23 m/min)
Max Spool Size Capacity	4 in (102 mm)
Cable Length	15 ft (4.572 m)
Net Height	3.375 in. (86 mm)
Net Length	10.625 in. (269 mm)
Net Width	1.875 in. (47 mm)
Net Weight	2.2 lb (1 kg)
Processes	MIG (GMAW) with aluminum wire and other soft alloys Pulsed MIG (GMAW-P) with pulsing power source
Heavy Industrial Applications	Trucks and Trailers Fabrication Railcars Shipbuilding
Warranty	1 year - Miller's True Blue Warranty
