Powermax125 power supply, 480V 3-PH, CSA, plus CPC port, no power cord #059669

Free consumable kit with Hypertherm Powermax125 plasma cutter #059669

Hypertherm Powermax125 power supply, 480V 3-PH, CSA, plus CPC port, no power cord

Name: Powermax125 Plasma Cutter, Power Supply Only or Power Cord (480/600V 3PH) #059669
Brand: Hypertherm
SKU: 059669

Part Number: 059669

UPC: 00662310416898

Add consumables

$7,750.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

CPC Port
480V Input
Inverter - IGBT
1 1/2" Cuts
3-Year Power Warranty

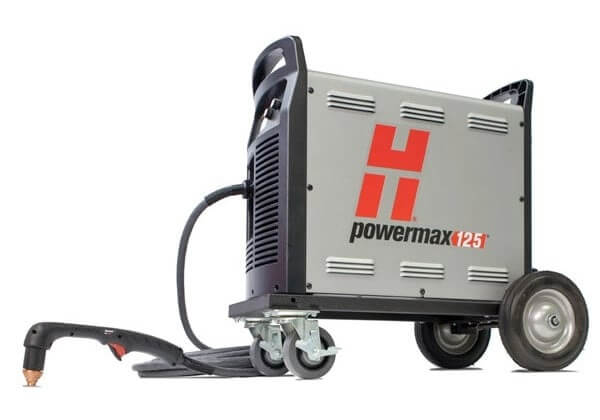

Hypertherm Powermax125 power supply, 480V 3-PH, CSA, plus CPC port, no power cord #059669

Introducing the Hypertherm Powermax 125 Plasma Cutter, a professional-grade powerhouse that redefines the standard for cutting and gouging performance. Boasting an impressive 125 amps of raw power, this remarkable machine effortlessly slices through metals up to 57mm (2-1/4") thick at an astounding 125mm/min (5 ipm).

Engineered with advanced technology, the Powermax 125 automatically adjusts gas pressure and detects electrode end-of-life, ensuring precise cuts while safeguarding the torch and workpiece. Say goodbye to manual adjustments and experience consistent, high-quality results every time.

Unlock unparalleled productivity and efficiency with the Powermax 125. Leveraging cut speeds five times faster than oxyfuel, this plasma cutter delivers a 100% duty cycle, enabling uninterrupted cutting time and rapid progress on any project. Moreover, its extended consumables life saves you time and money on replacements, making it a true cost-effective solution.

Enhance the versatility of this cutting-edge machine by adding compatible Duramax torches for a wide range of automated cutting tasks. From hand cutting to portable automation, x-y table cutting, and even robotic cutting and gouging, the Powermax 125 excels in every application, making it the ultimate choice for craftsmen and professionals alike.

This comprehensive package includes the Powermax 125 power supply with a CPC port and voltage divider, an 85-degree Duramax hand torch, and a 25 ft work cable. To unlock automated cutting capabilities, simply integrate a machine torch and experience the pinnacle of cutting performance.

Unlock the full potential of your cutting operations with the Hypertherm Powermax 125 Plasma Cutter. Built to last and deliver professional results, it is the ultimate solution for those seeking unparalleled power, precision, and versatility.

Always refer to the operating guides for recommended height, power, and speed adjustments. For any inquiries, please contact Welders Supply Company at 1-800-236-8825.

Cut Charts for Hypertherm Powermax125 Plasma Cutter for mild steel, stainless steel & aluminum.

Additional Error Codes and Faults for Hypertherm Powermax 125

Accessories:

Browse all Hypertherm products or see our selection of plasma cutter consumable parts and plasma cutting machines available at Welders Supply.

Hypertherm Powermax 125 Specifications
Input voltages	480/600 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW	480/600 V, 31/24 A
Output current	30-125 A
Rated output voltage	175 VDC
Duty cycle @ 104° F (40° C)	100% @ 125 A, 480/600 V, 3-PH
Open circuit voltage (OCV)	320 VDC
Dimensions with handles	23.3" D; 10.8" W; 20.0" H
Weight w/ 25' torch	400 V - 105.7 lbs 600 V - 104.7 lbs
Gas supply	Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure	Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @ 4.1 (60 psi)
Input power cable length	10'
Power supply type	Inverter - IGBT
Engine drive requirement	40 kW for full 125 A output
Certifications	CSA-certified for use in the Americas and Asia, except China
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

Capacity	Thickness	Cut Speed
	Cutting
Recommended	1½"	18 ipm
	1 ¾”	10 ipm
Severance (hand cutting)	2 ¼”	5 ipm
Pierce*	1"
	*Pierce rating for handheld use or with automatic torch height control
