Powermax125 Plasma Cutter w/ 180° Machine Torch, 50' Cable & 25' 85° Hand Torch, CPC Port (460V) #059541
![](/Content/files/hypertherm/v-b920-HyperthermLogo-THL.png)
Cut capacity:
![1" and Higher Capacity](/Content/files/ProductImages/C-450-1_THL.png)
1" and Higher Capacity
Power supply:
![460V](/Content/files/ProductImages/C-649-460V_THL.png)
460V
Material type:
![Mild Steel](/Content/files/ProductImages/643-NewCat-MildSteel_THL.png)
Mild Steel
![Stainless Steel](/Content/files/ProductImages/643-NewCat-Stainless_THL.png)
Stainless Steel
![Aluminum](/Content/files/ProductImages/643-NewCat-Aluminum_THL.png)
Experience unmatched cutting precision and versatility with the Hypertherm Powermax125 Plasma Cutter featuring a 180° machine torch, 50' cable, and a 25' 85° hand torch with a CPC port (#059541). This industrial-grade powerhouse is designed to redefine cutting and gouging capabilities. With an impressive 125 amps, it effortlessly tackles demanding applications, slicing through metals up to 57mm (2-1/4") thick at an impressive 125mm/min (5 ipm).
Leverage advanced technology that automatically adjusts gas pressure and detects electrode end-of-life, ensuring precise cuts while safeguarding the torch and workpiece. Bid farewell to manual adjustments and embrace consistent, high-quality results.

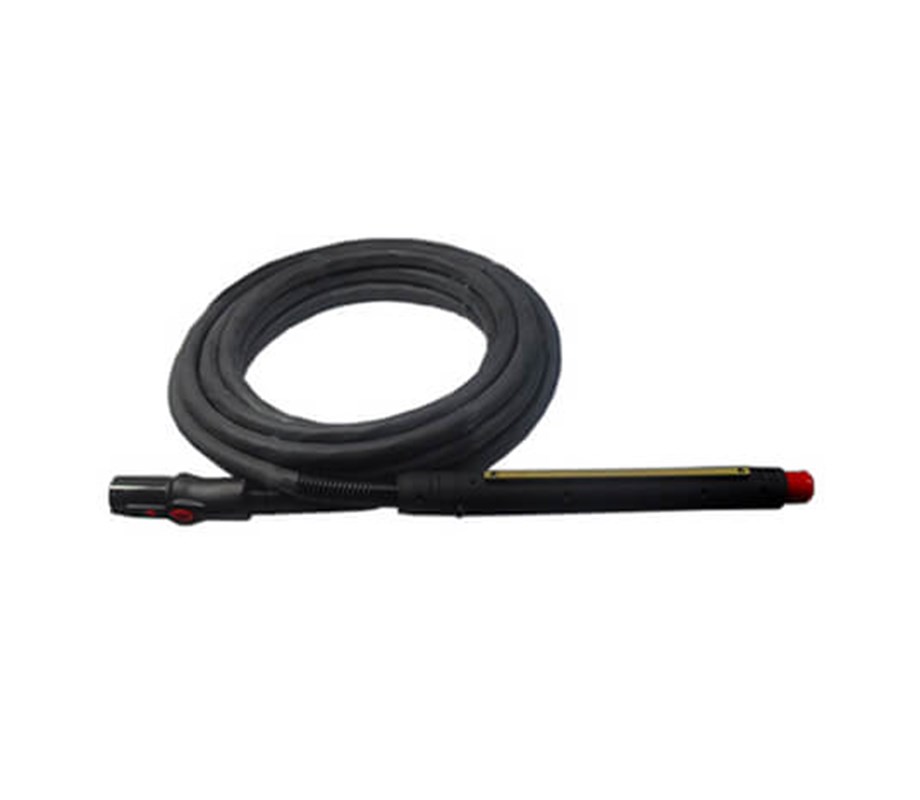

The Powermax125 ensures exceptional productivity and efficiency, boasting cut speeds five times faster than oxyfuel and a 100% duty cycle. Experience uninterrupted cutting time, accelerating progress on any project. The dual torch configuration provides ultimate flexibility - the 180° machine torch with a 50' cable for extended reach and the 25' 85° hand torch for close-quarters precision.
With a CPC port for seamless integration and enhanced control, this package includes the Powermax125 power supply, a 180° machine torch with a 50 ft cable, a 25' 85° hand torch, and a remote control. Achieve optimal results in diverse cutting applications with ease.
Elevate your cutting experience with the Hypertherm Powermax125 Plasma Cutter. Crafted for durability and professional results, it stands as the ultimate choice for craftsmen and professionals seeking versatility.
Always refer to operating guides for recommended adjustments. For inquiries, contact Welders Supply Company at 1-800-236-8825.
Explore our complete range of Hypertherm products or discover plasma cutter consumable parts and machines at Welders Supply. Elevate your cutting experience today!
Hypertherm Powermax 125 Specifications | |
---|---|
Input voltages | 480/600 V, 3-PH, 50/60 Hz |
Input current @ 21.9 kW | 480/600 V, 31/24 A |
Output current | 30-125 A |
Rated output voltage | 175 VDC |
Duty cycle @ 104° F (40° C) | 100% @ 125 A, 480/600 V, 3-PH |
Open circuit voltage (OCV) | 320 VDC |
Dimensions with handles | 23.3" D; 10.8" W; 20.0" H |
Weight w/ 25' torch |
400 V - 105.7 lbs 600 V - 104.7 lbs |
Gas supply | Clean, dry, oil-free air or nitrogen |
Recommended gas inlet flow rate/pressure |
Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @ 4.1 (60 psi) |
Input power cable length | 10' |
Power supply type | Inverter - IGBT |
Engine drive requirement | 40 kW for full 125 A output |
Certifications | CSA-certified for use in the Americas and Asia, except China |
Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
Capacity |
Thickness |
Cut Speed |
---|---|---|
Cutting | ||
Recommended | 1½" | 18 ipm |
1 ¾” | 10 ipm | |
Severance (hand cutting) |
2 ¼” | 5 ipm |
Pierce* | 1" | |
*Pierce rating for handheld use or with automatic torch height control |
Capacity |
Metal removal rate |
Groove profile* |
---|---|---|
Gouging | ||
Typical gouge | 27.6 lbs/hr | 0.17-0.31" D x 0.24-0.390" W |
*Actual groove profile varies with torch angle, arc stretch, and technique |
