11 Hypertherm Powermax 125 Consumable Parts Starting at $8.00
Hypertherm Powermax 125 Consumables
Plasma cutting is dangerous work especially when your consumables are worn out. Which is why you need to keep a few spares on hand at all times. Welders Supply Company has all the consumable replacement parts you need for Hypertherm Powermax plasma cutters, from nozzles to retaining caps.
The Hypertherm Powermax 125 Plasma Cutter #059536 is the most powerful plasma cutter in its class and with modes for hand cutting, x-y table cutting, and/or robotic cutting or gouging. It’s also very versatile. Equipped with Hypertherm’s Smart Sense technology, it adjusts the gas pressure according to the mode you have set it to and to the torch lead length. At the same time, it protects you by shutting off the instant it detects the electrode is no longer safe to use.
The Hypertherm Powermax 125 Plasma Cutter
- can cut 38mm at 18ipm’s to a maximum of 44mm at 10ipm’s, or
- can cut 57mm by hand at a peak of 5ipm’s
- pierce depths of 25mm, the Powermax 125
- can cut many different heavy-duty materials quickly and cost-effectively.
- gouging capability of 27.6 lbs. /hr. at a maximum of 0.17-0.31 depth by 0.24-0.39 width
Consumable part | Description | When to replace | Options |
---|---|---|---|

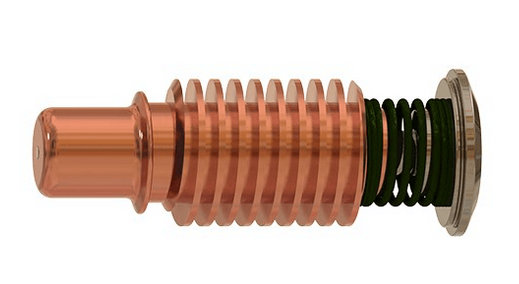

Electrode | Conducts electricity from torch to plasma arc |
|
|
Shield deflector | Covers & protects the nozzle |
|
|
Retaining cap | Holds the nozzle & electrode in place and helps shape plasma arc |
|
|
Nozzle | Shapes plasma arc for cleaner, more precise cuts |
|
|
Swirl ring | Stabilizes and swirls the airflow |
|
The combination of performance and features in the Hypertherm Powermax 125 has made it a slam dunk for a wide range of industrial applications. It’s also favored by artisans and hobbyists. Welders Supply Company serves the needs of both big businesses and individuals with the lowest possible prices on Hypertherm plasma cutters, parts and accessories.
Browse all plasma cutter consumables or shop all plasma cutting machines for sale online at Welders Supply.
