Miller Dynasty 210 120-480 V, Wireless Foot Control Complete Package Part# 951879
Part Number: 951879
Welding type:
TIG
Stick
Power supply:
110V
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Stick Welding
TIG Welding
1 and 3-Phase Input
Miller's True Blue Warranty
Miller Dynasty 210 wireless Foot Control Pkg, #951879
This water-cooled, 210 amp welding package features the Dynasty 210 CPS (Cooler Power Supply) with a dedicated receptacle for the Miller Coolmate 1.3 water cooler (included with this package). This package also includes a wireless remote foot control for remote current and contactor control. The receiver plugs directly into the 14-pin receptacle on the front panel and provides a 90-foot operating range.

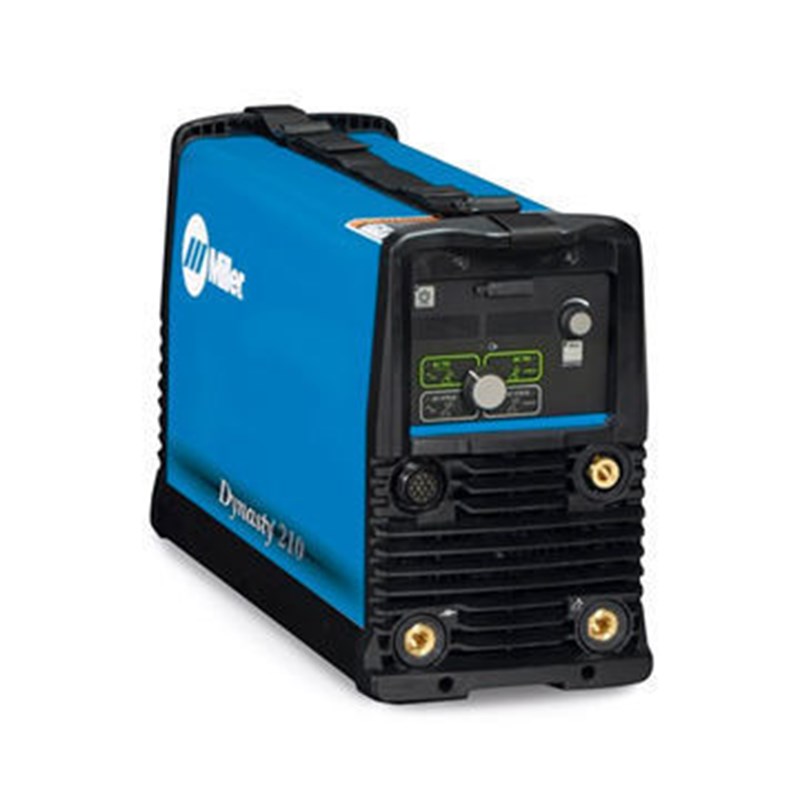

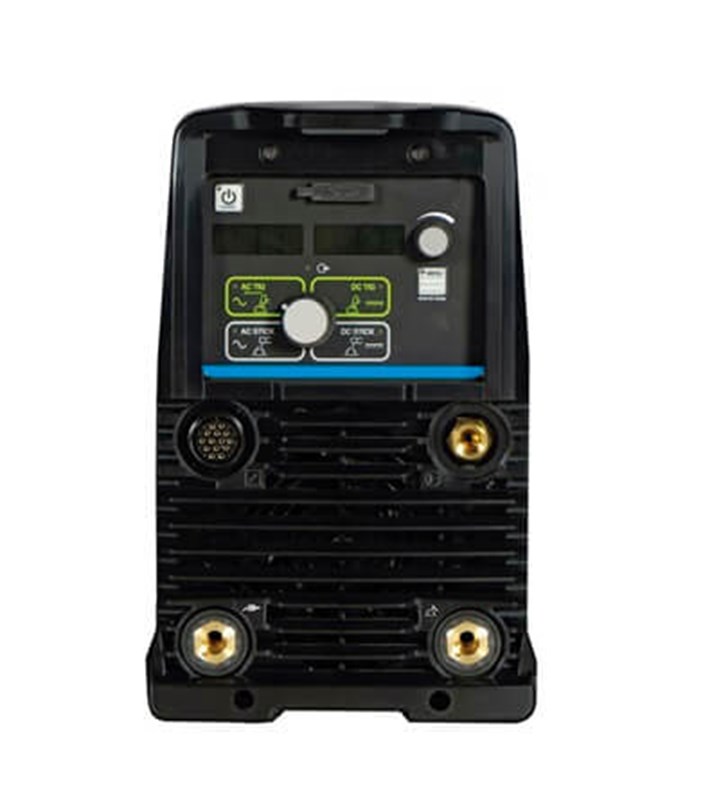

Compact and lightweight (just 50 lbs), the Dynasty 210 can weld up to 1/4" steel and 1/4" aluminum. With Miller's Autoline voltage sensing, you can hook this up to 120 V to 480 V power, single phase or three phase, with no manual linking needed. A user-friendly interface simplifies all the features required for AC/DC TIG or Stick welding.

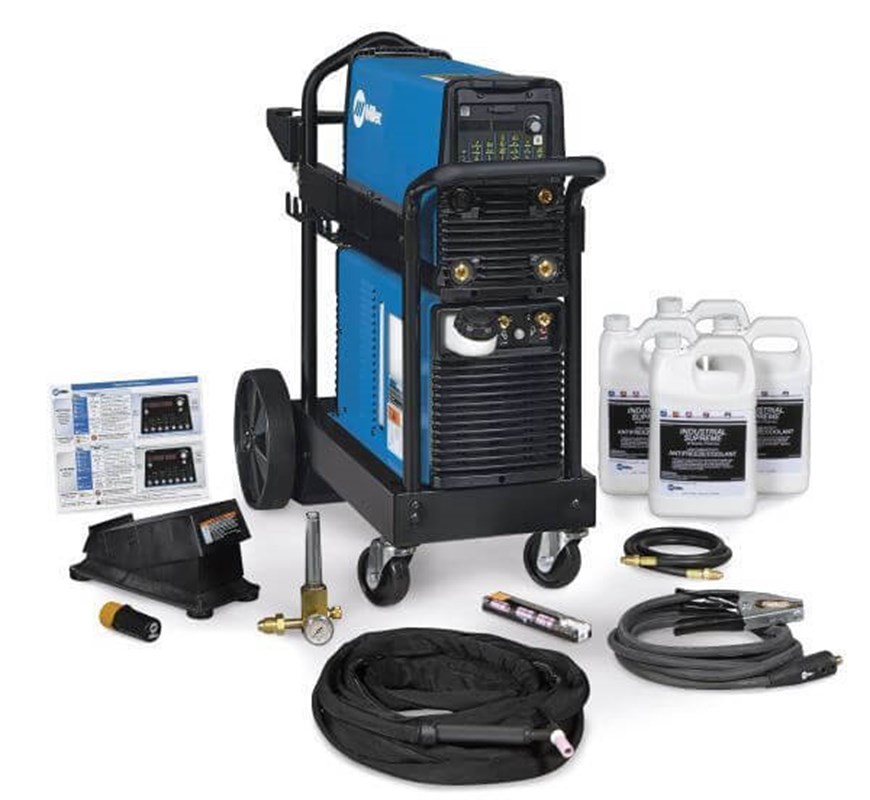

What’s Included:
Dynasty® 210- Coolmate™ 1.3
- Small Runner Cart

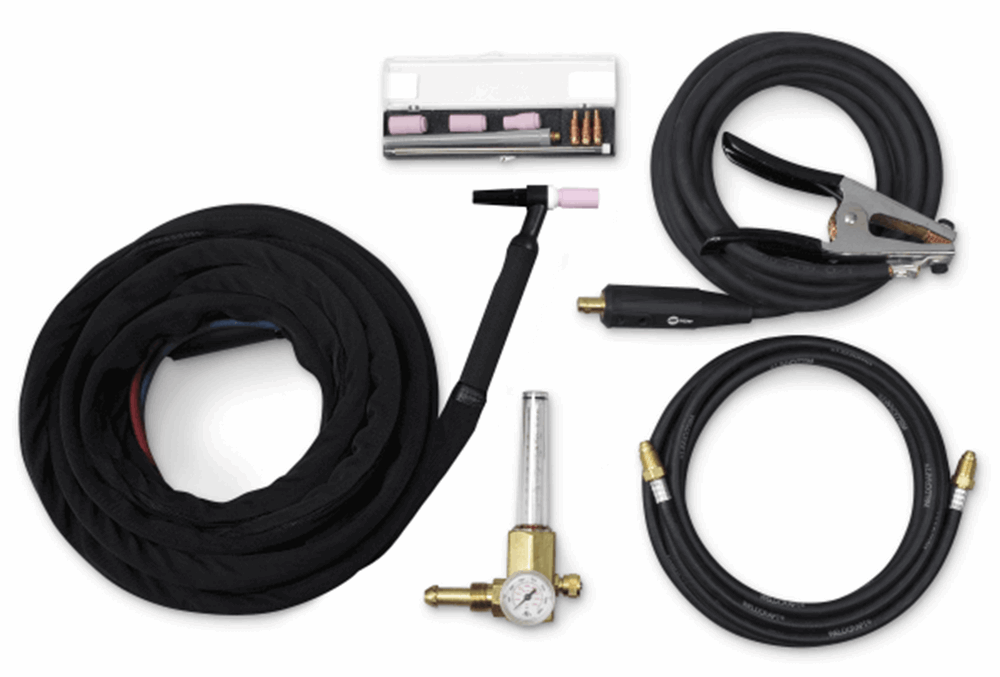

- Weldcraft™ W-375 torch kit and accessories (301268)

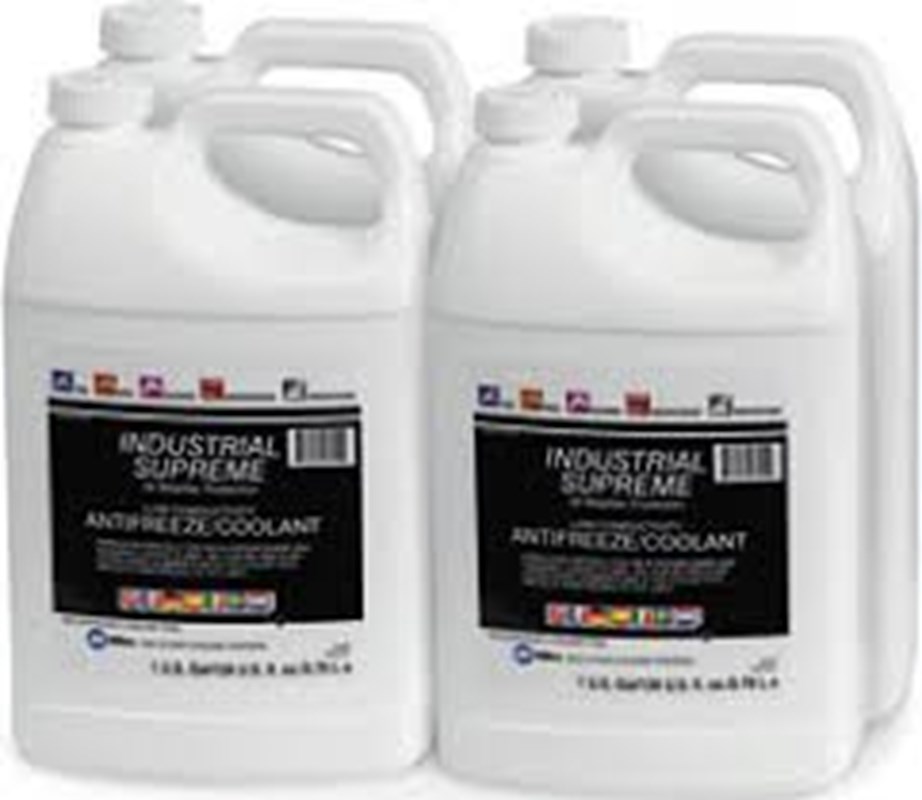

- Coolant (4 one-gallon bottles of 043810)

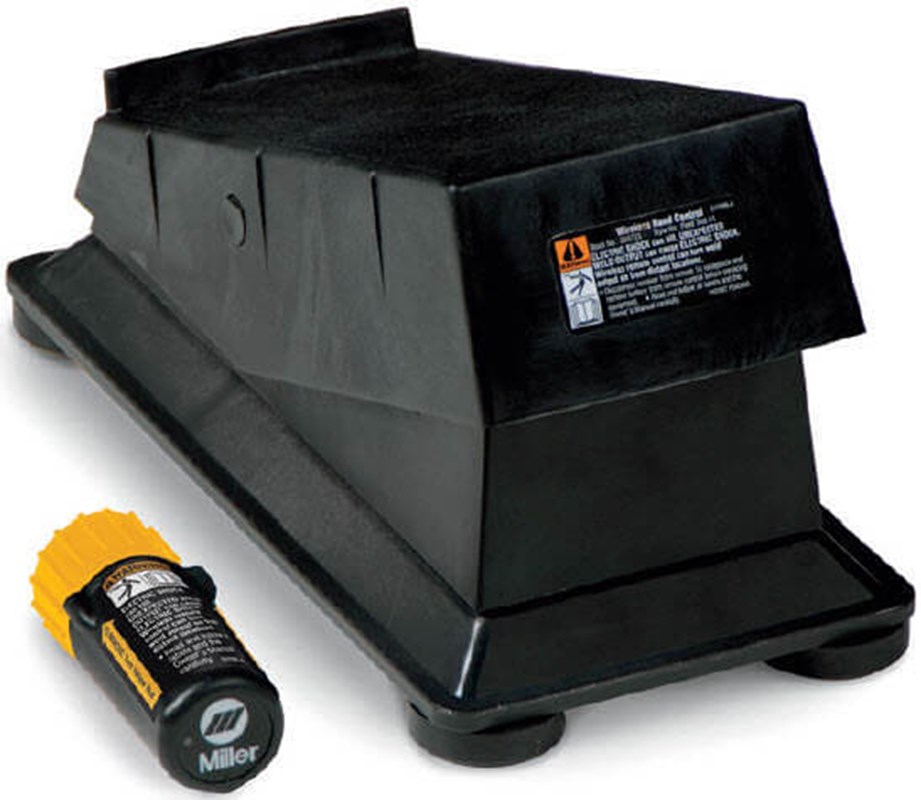

- Wireless remote foot control and receiver (300429)
- Quick Reference Guide
Processes:
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
For the best prices on TIG welders, Stick welders, and Miller welding machines, shop Welders Supply online.
Other Versions of the Miller Deltaweld® 452:
General Specifications | |
|---|---|
| Title | Dynasty® 210 120-480 V, Wireless Foot Control Complete Package |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Running Gear / Cart (Standard) |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Weldable Metals | Aluminum Mild Steel Specialty Metals Stainless Steel |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 50.00 Inches |
| Width: | 20.00 Inches |
| Length: | 44.00 Inches |
| Weight: | 237 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
I use this product for hobby projects and fabrication. Great to have the cooling package. I went with the full Tigrunner with wireless pedal. Wireless pedal is awesome!!!
Product Questions and Answers
Q - What memory card do you need for AC Expansion?
A - The Miller Dynasty 210/280 Memory Card #301235.
Q - Is there a cover for this?
A - Yes, it's Miller part #301382
