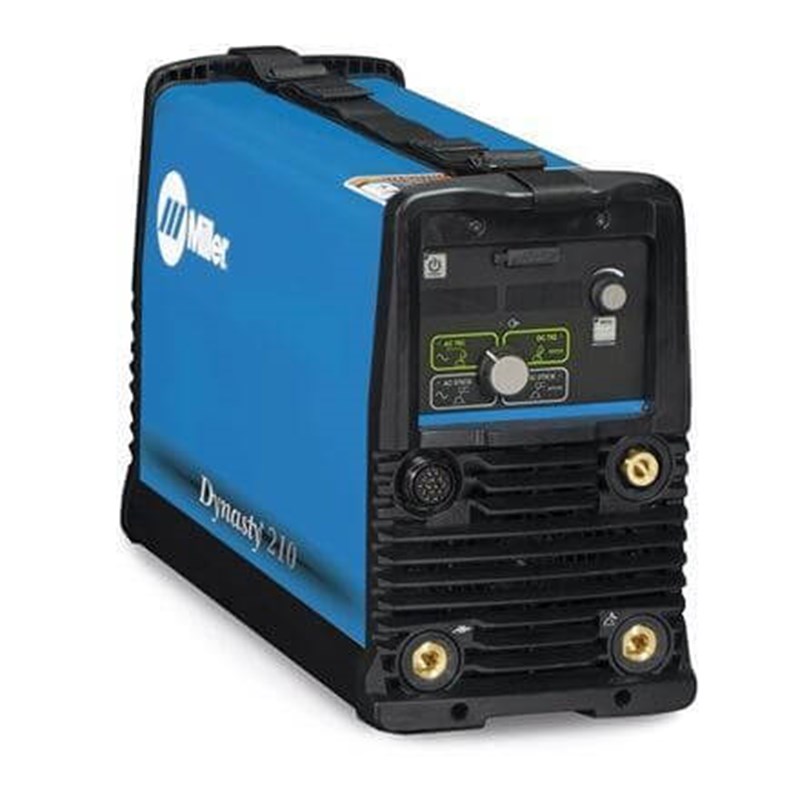

Miller Dynasty 210 TIG/Stick Welder, CPS (120-480 V) #907685002
Part Number: 907685002
Welding type:
TIG
Stick
Power supply:
110V
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Multi-Voltage
Multi-Phase
Multi-Process
3-Year Power Warranty
Lightweight and Portable
1/4" Cut
Miller Dynasty 210 CPS TIG/Stick Welder Part #907685002
Coolmate 1.3 Cooler
Dynasty® models with CPS turn Coolmate 1.3 on and off- Power indicator light
- Fluid level sight window
- Rustproof polyethylene-molded coolant tank and filler spout
- 1/4-HP mot or is thermally protected to guard against overheating
- Factory-set pressure relief valve (55 PSI) maintains consistent pressure during operationEfficient fin and tube heat exchanger
- Filter and coolant filling spout are conveniently located
- Brass-body, positive displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy
Be sure to view Welders Supply Company’s full selection of Mig, Tig, and Stick welders available at the best prices online!
Other Versions:
- 907685 120-480 Volts AC/DC Tig/Stick Welder
- 907686 DX 120-480 Volts AC/DC Tig/Stick Welder
- 907686002 DX 120-480 Volts AC/DC Tig/Stick Welder, CPS
- 951666 120-480 Volts AC/DC Tig/Stick Welder W/Foot Control Package
- 951667 120-480 Volts AC/DC Tig/Stick Welder W/Wireless Foot Control Package
- 951668 DX 120-480 V, Foot Control Complete Package
General Specifications |
|
| Title | Dynasty® 210 120-480 V, CPS |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar hipbuilding Boat / Yacht High Purity Processing |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Handle(s) Running Gear / Cart (Optional) Shoulder Strap |
| Net Height | 13.6 in |
| Net Length | 22.5 in |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Net Weight | 50 lbs |
| Weldable Metals | Aluminum Specialty Metals Mild Steel Stainless Steel |
| Net Width | 8.6 in |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 56 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
This is one of most fantastic welding machines for TIG welding...
Product Questions and Answers
Q - What is the output rating?
A - 210 A at 18 V, 60% duty cycle
Q - Is this portable?
A - Yes, there is a shoulder trap on this unit and it weighs 43 lbs.
