Miller Dynasty 210 DX 120-480 V, CPS Part #907686002
Part Number: 907686002
Welding type:
TIG
Stick
Power supply:
110V
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
TIG Welding
Stick Welding
Single Phase Input
Three Phase Input
3-Year Miller Warranty

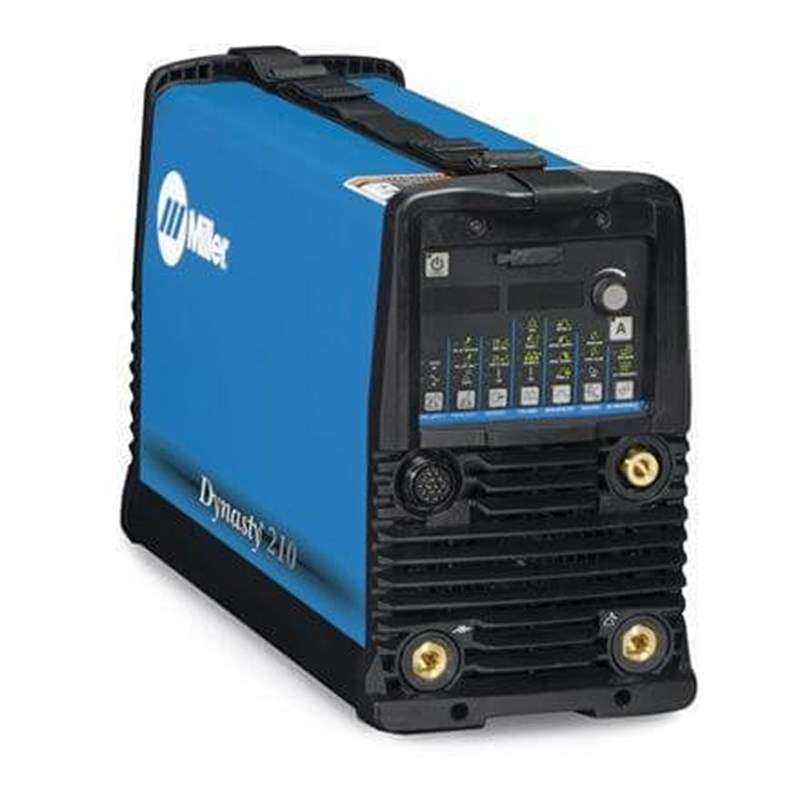

Miller Dynasty 210 DX CPS TIG-Stick Welder Part# 907686002
What's Included
- Dynasty® 210 DX
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- Quick Reference Guide
- (2) 50 mm Dinse style connectors
Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Be sure to view Welders Supply Company’s full selection of welding machines including multi-process welders, welding machine accessories, and welding helmets.
General Specifications |
|
| Title | Dynasty® 210 DX 120-480 V, CPS |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Handle(s) Running Gear / Cart (Optional) Shoulder Strap |
| Net Height | 13.6 in |
| Net Length | 22.5 in |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Net Weight | 50 lbs |
| Weldable Metals | Aluminum Specialty Metals Mild Steel Stainless Steel |
| Net Width | 8.6 in |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 56 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
non-stop welding. no issues at all. Awesome set-up.
Product Questions and Answers
Q - I know these have Miller's 3-year warranty, but does the warranty start from the date of purchase or from the date it was built?
A - Warranty coverage starts from the date of purchase, so make sure you keep your receipt and/or register your machine with Miller.
Q - Can this be used with an air cooled TIG torch instead of a water cooled torch?
A - Yes, you can do this.
