Miller Dynasty 210 TIG/Stick Welder (120-480 V) # 907685
Part Number: 907685
Welding type:
TIG
Stick
Power supply:
110V
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Multi-Voltage
Multi-Process
Multi-Phase
Lightweight and Portable
3-Year Power Warranty
1/4" Cut

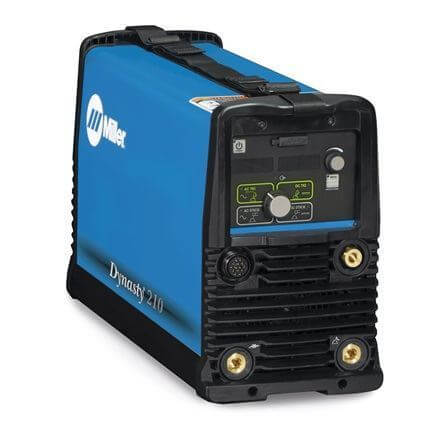

Miller Dynasty 210 AC/DC TIG/Stick Welder Part# 907685
The Dynasty 210 combines advanced inverter technology with Miller's Auto-Line technology for the most flexible AC/DC TIG/Stick power supply in the welding industry.
WHAT'S INCLUDED
- Dynasty® 210
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- Quick Reference Guide
- (2) 50 mm Dinse style connectors
PROCESSES
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Base and Deluxe Models Available
Dynasty 210 - Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features.
Dynasty 210 DX - The DX model offers full AC features, including advanced waveforms and wide ranges of balance and frequency.
Upgradeable and Expandable
Front panel memory card data port makes it easy to upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
Auto-Line Power Management Technology
A convenient solution for dirty or unreliable input power, Miller's Auto-Line power management allows hookup to either single-phase or three-phase electrical input from 120-460 V with no manual linking required.
Pro-Set Feature (professional settings)
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Stick Features (AC/DC)
Tailored arc control (DIG) allows the arc characteristic to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking. Stick-Stuck detects if the electrode is stuck to the part and turns off the welding output so the electrode can be safely and easily removed.
For the best prices on MIG, TIG, and Stick welders, shop Welders Supply online.
|
Title |
Dynasty® 210 120-480 V |
|
Industries Interests |
Aerospace |
|
Current Type |
AC / DC |
|
Input Hz |
50 / 60 Hz |
|
Input Phase |
1- and 3-Phase |
|
Portability |
Handle(s) |
|
Net Height |
13.6 in |
|
Net Length |
22.5 in |
|
Input Voltage |
110/115/120 V |
|
Max Open Circuit Voltage |
80 VDC |
|
Net Weight |
47 lbs |
|
Weldable Metals |
Aluminum |
|
Net Width |
8.6 in |
|
Warranty |
Miller's True Blue Warranty |
|
Amperage Min |
1 A |
|
Amperage Max |
210 A |
|
Material Thickness |
Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 53 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
I restore classic motorcycles, i am delighted with this welder its so easy to use. i only wish i had bought one earlier .
Product Questions and Answers
Q - What cover fits this?
A - The Miller cover for the Dynasty 210 is part #301382.
Q - Need a cart for this. Which one?
A - The Miller Small Runner Cart (#301318) holds a Dynasty 210 and a Coolmate 1.3 cooler.

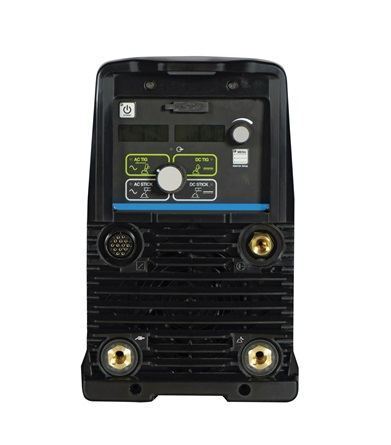

How to set-up menu options:
- Turn OFF welder.
Locate power button at top left of control panel and make sure welder is OFF.
- Locate menu button.
Locate menu button on middle right of control panel.
- User setup.
Hold menu button 3 seconds for user setup.
- Tech Setup.
Hold menu button 5 seconds for tech menu.
- Choose options.
Press menu button to cycle and set desired options.
